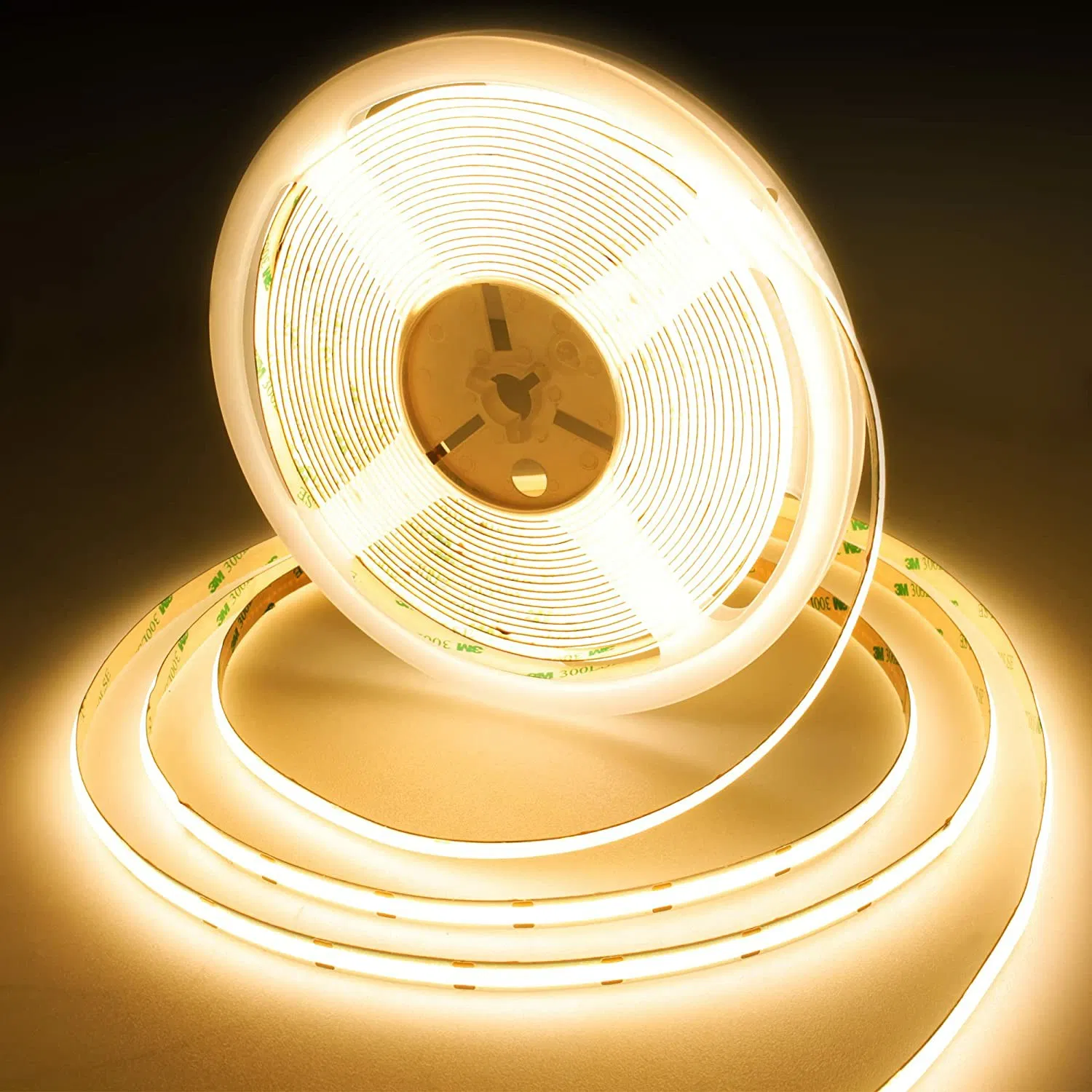

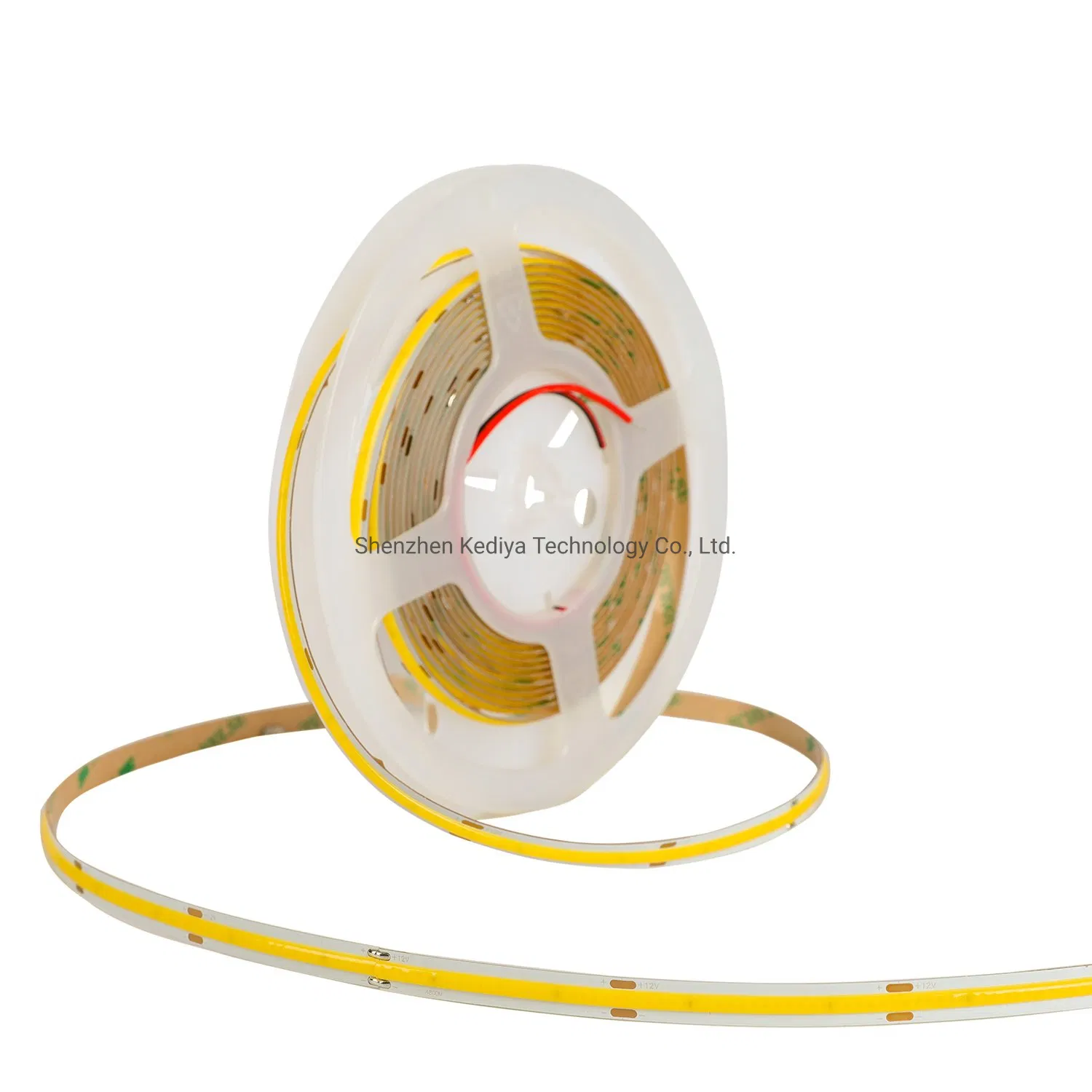

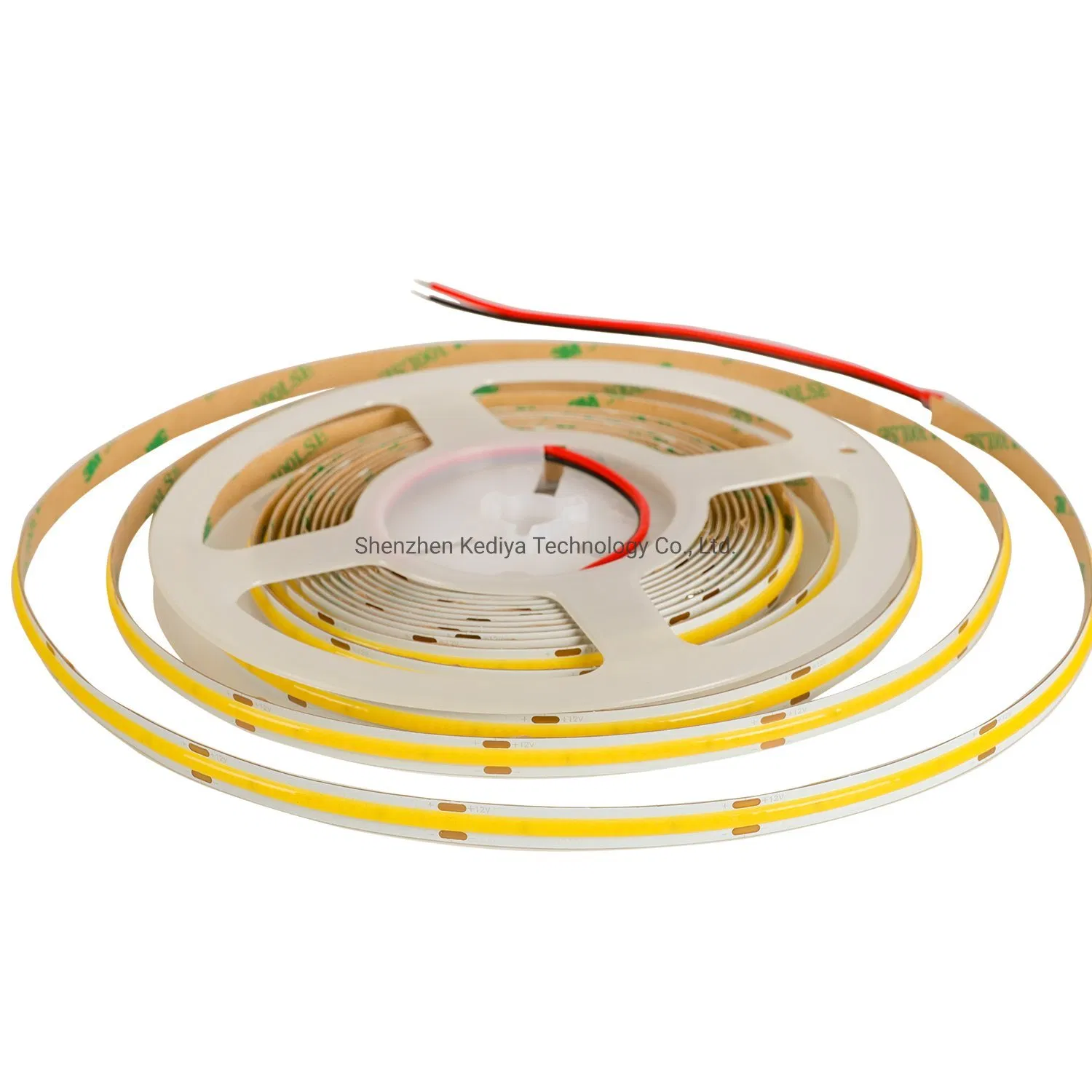

COB LED Strip 2700 K 4000K 6500K Warm White, 12V 24 V Flexible COB LED Strip Light Set, 480 LEDs/M, for TV, DIY Decoration Waterproof COB LED Strip Light

Basic Specifications

Model NO.:COB 480

Emitting Color:White

Voltage:12V/24V

IP Rating:IP20/IP65/IP67/IP68

Wattage:11W/M

CRI (Ra>):>90

LED Qty:480LEDs/M

Color Temp:2700K, 3000K, 4000K, 6000K

Beam Angle:180 degree

Warranty:3-5 Years

PCB Material:Double-Sided Coated Pure Copper

Lifespan:50,000 Hours

Product Overview

COB LED Strip 2700K 4000K 6500K Warm White, Flexible Light Set, 480 LEDs/M.

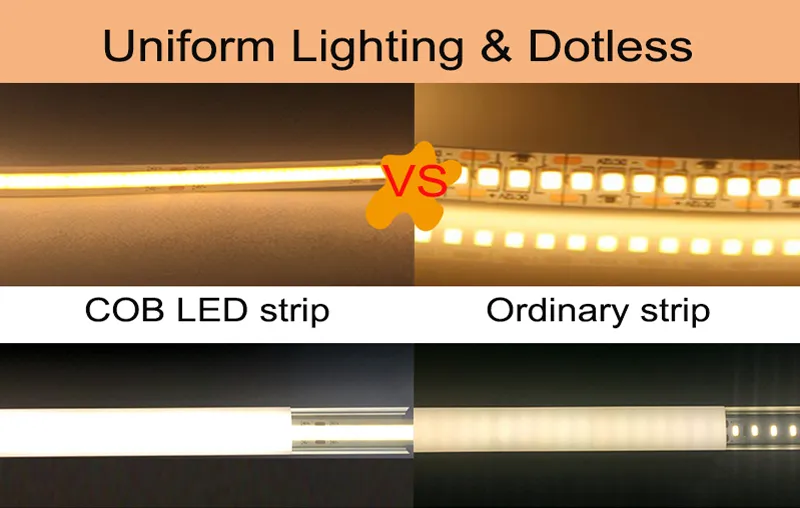

● Good solution for linear light. Perfect Dot-Free lighting effect even without profiles or PC covers.
● Continuous and uniform linear illumination, soft and elegant light, no glare.
● Adopt Flip-Chip technology, no dead light risk.
● Small single point current provides excellent heat dispersion and low luminous decay.

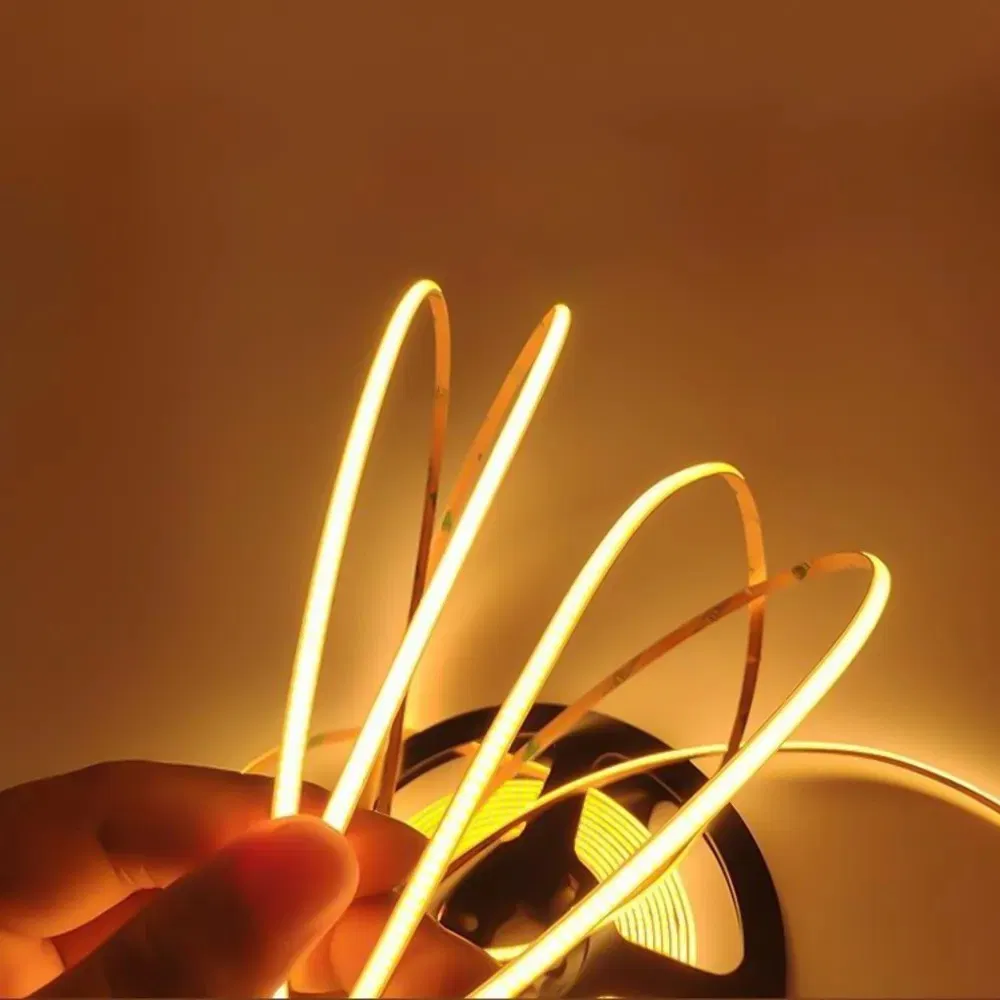

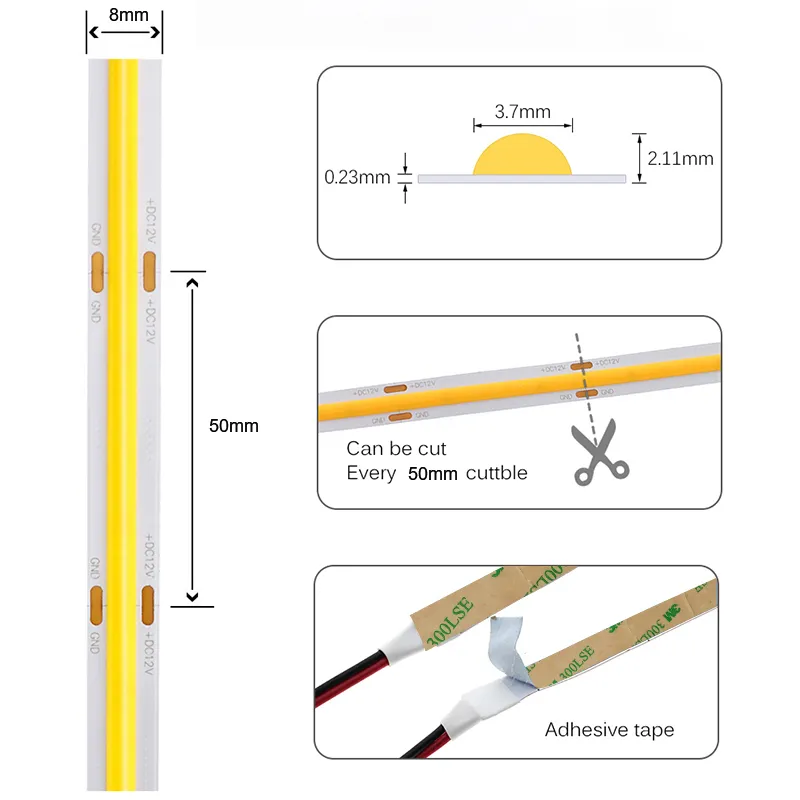

● Highly flexible and bendable with a radius of only 5mm.

Technical Specifications by Model

Product Name	LED/m	Volt	W/m	PCB Width	Color Range	CRI
White color COB Strip	312LED	12V/24V	8W	8mm	2700K-6000K / Single Colors	>90
White color COB Strip	384LED	12V/24V	10W	8mm/5mm	2700K-6000K	>90
White color COB Strip	480LED	12V/24V	11W	8mm	2700K-6000K	>90
RGB COB Strip	768LED	24V	14W	10mm	RGB	>90
Addressable COB Strip	240LED	5V	21W	10mm	Full Color	>90

Product Features & Visuals

New Trend in LED Lighting: Spot-free linear lighting effect and versatile waterproof options (IP65, IP67, IP68) for all environments.

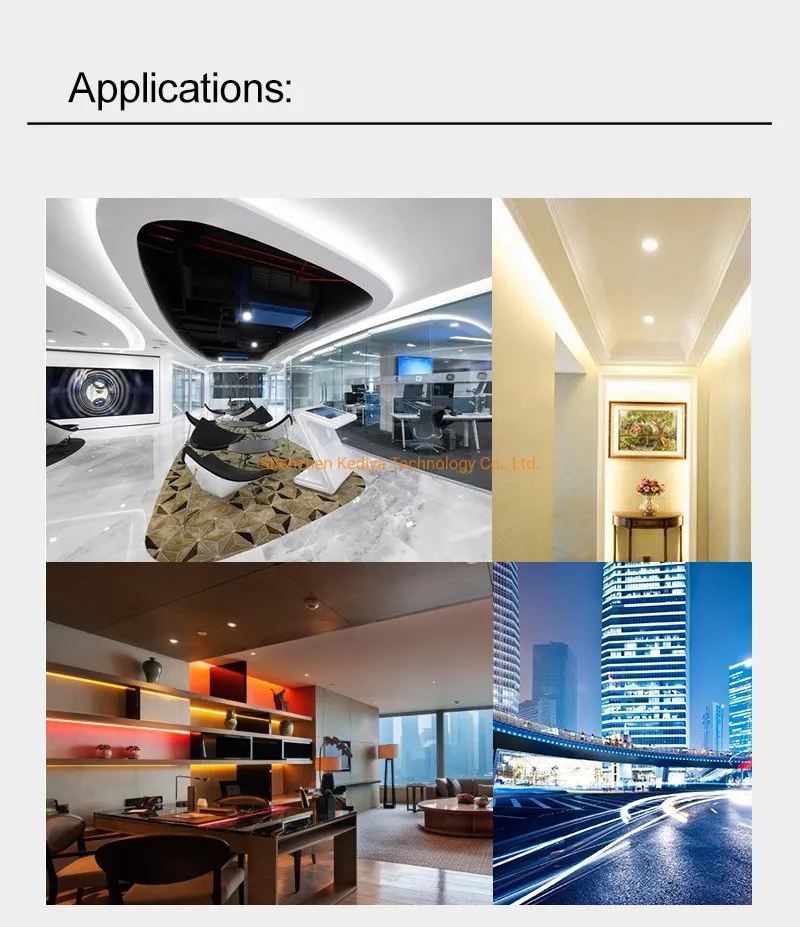

Applications

1) Architectural decorative lighting

2) Archway, canopy and bridge edge lighting

3) Theater and aircraft cabin mood lighting

4) Emergency hallway and exit path lighting

5) Auditorium walkway and stairway accenting

6) Signage backlighting and cove lighting

Reliability Test Conditions

No.	Test Item	Conditions	Duration / Cycle
01	Thermal Shock	-25ºC (15min) ↔ 100ºC (15min)	300 Cycles
02	Life Test	Ta=25ºC	1000 Hours
03	Temp/Humidity Storage	Ta=85ºC, RH=85%	1000 Hours

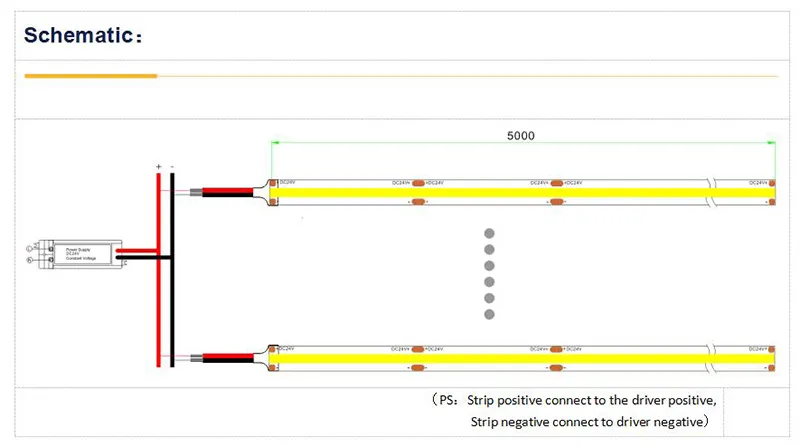

Installation Requirements:

Ensure power supply is 80% of the total strip power for stability.
Recommended length: 5 meters per roll to avoid brightness variance.
Minimum bending diameter is 60mm.
Installation must be performed by professionals according to electrical safety standards.

Packaging & Shipping

▶ 5 meters/roll, 100 rolls per carton.
▶ Delivery time: 3-5 working days for orders under 2000m.
▶ Shipped via DHL, FedEx, UPS Express, Air, or Sea.

Frequently Asked Questions

Q1: Are you a factory or trading company? A1: We are a professional manufacturer of LED strip lights, COB strip lights, and Neon lights with factory-direct pricing.

Q2: How do you ensure product quality? A2: We conduct 100% on-line QC and final inspections. Our production follows ISO standards and our products hold various quality certifications.

Q3: Can you provide samples? A3: Yes, we can supply samples for free, though delivery charges are covered by the customer via international express accounts.

Q4: Do you offer custom services? A4: Yes, we have professional designers to provide design services based on your specific requirements.

Q5: What is the typical lead time for orders? A5: Sample orders take 3-5 days. Small batch orders usually take 10-15 days, while large orders are negotiable.

Q6: How long is the warranty period? A6: We offer a 2-5 year warranty. During this period, any quality issues will be addressed with repair or free replacement.
