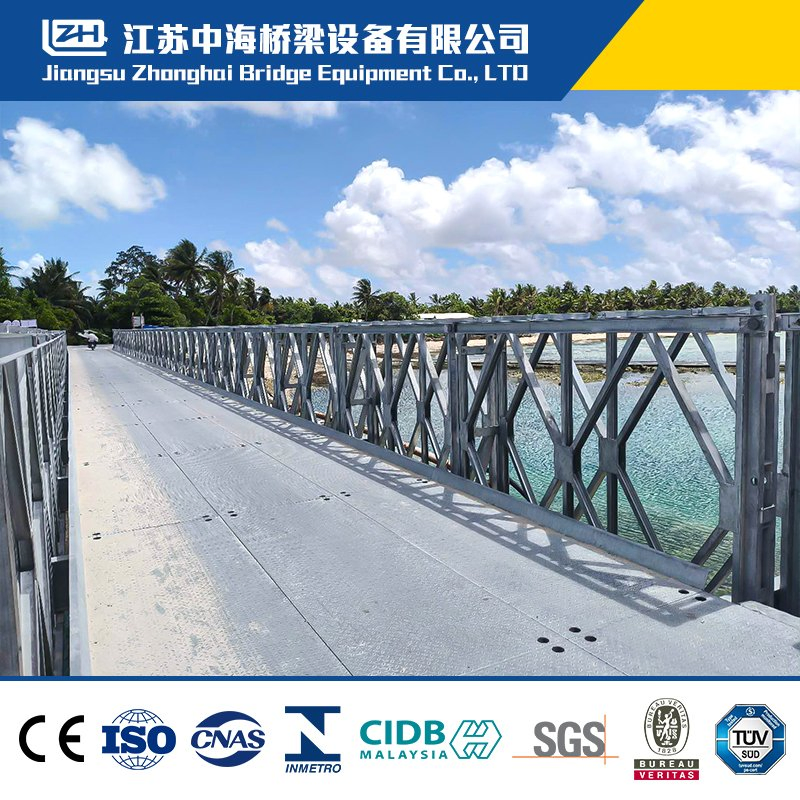

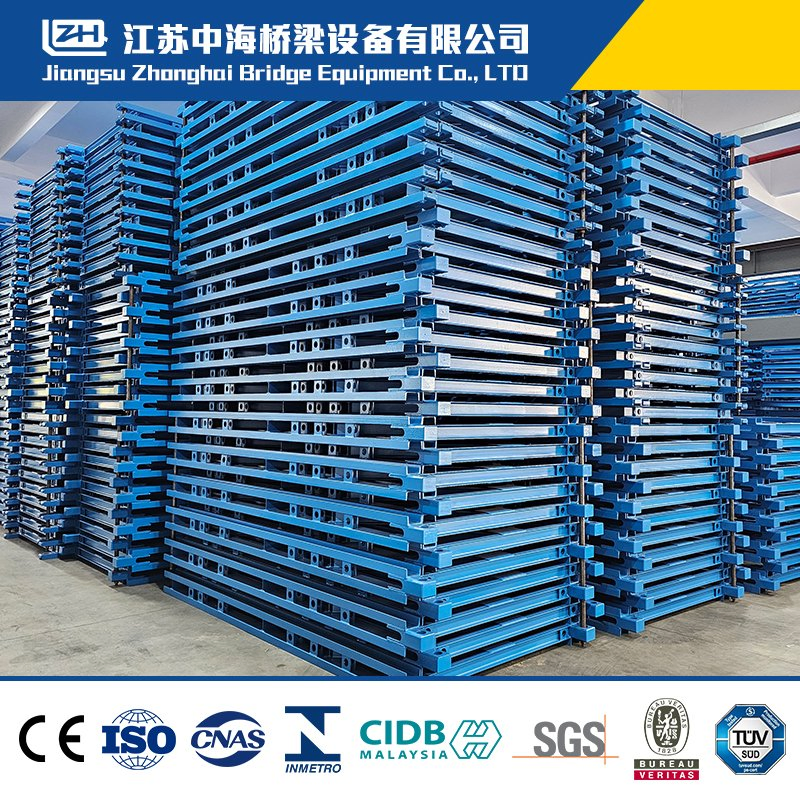

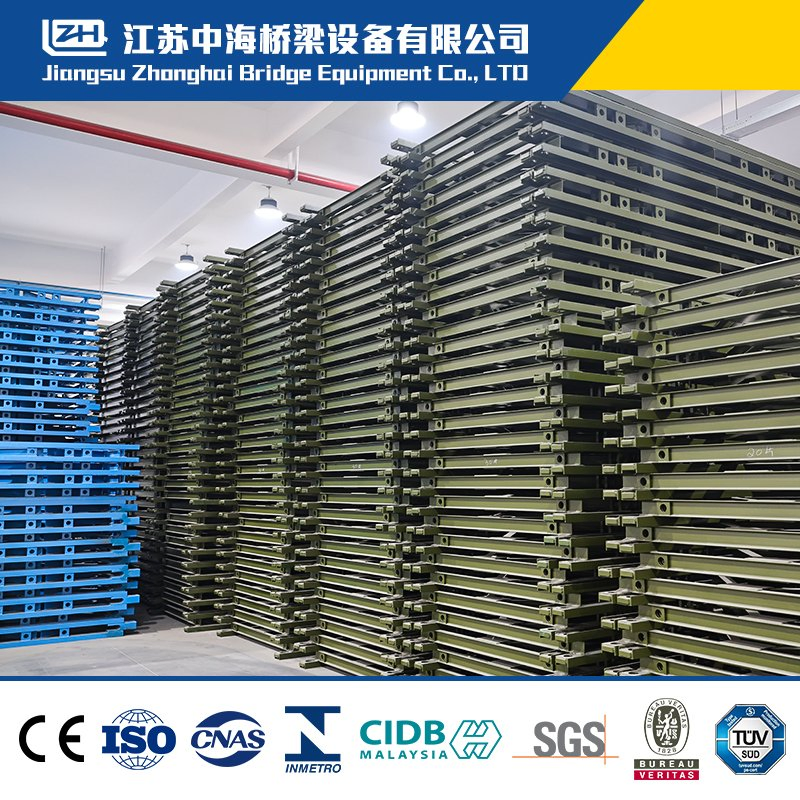

Bailey Bridge Campsite Bella Coola
| CB200 Truss Press Limited Table | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Internal Force | Not Reinforced Model | Reinforced Model | |||||||
| SS | DS | TS | QS | SSR | DSR | TSR | QSR | ||
| Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 | |
| Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 | |
| CB200 Geometric Characteristics of Truss Bridge (Half Bridge) | ||||
|---|---|---|---|---|
| Structure | Model | Chord Area(cm2) | Section Properties(cm3) | Inertia(cm4) |
| SS | SS | 25.48 | 5437 | 580174 |
| SS | SSR | 50.96 | 10875 | 1160348 |
| DS | DS | 50.96 | 10875 | 1160348 |
| TS | TS | 76.44 | 16312 | 1740522 |
Brief Instruction:

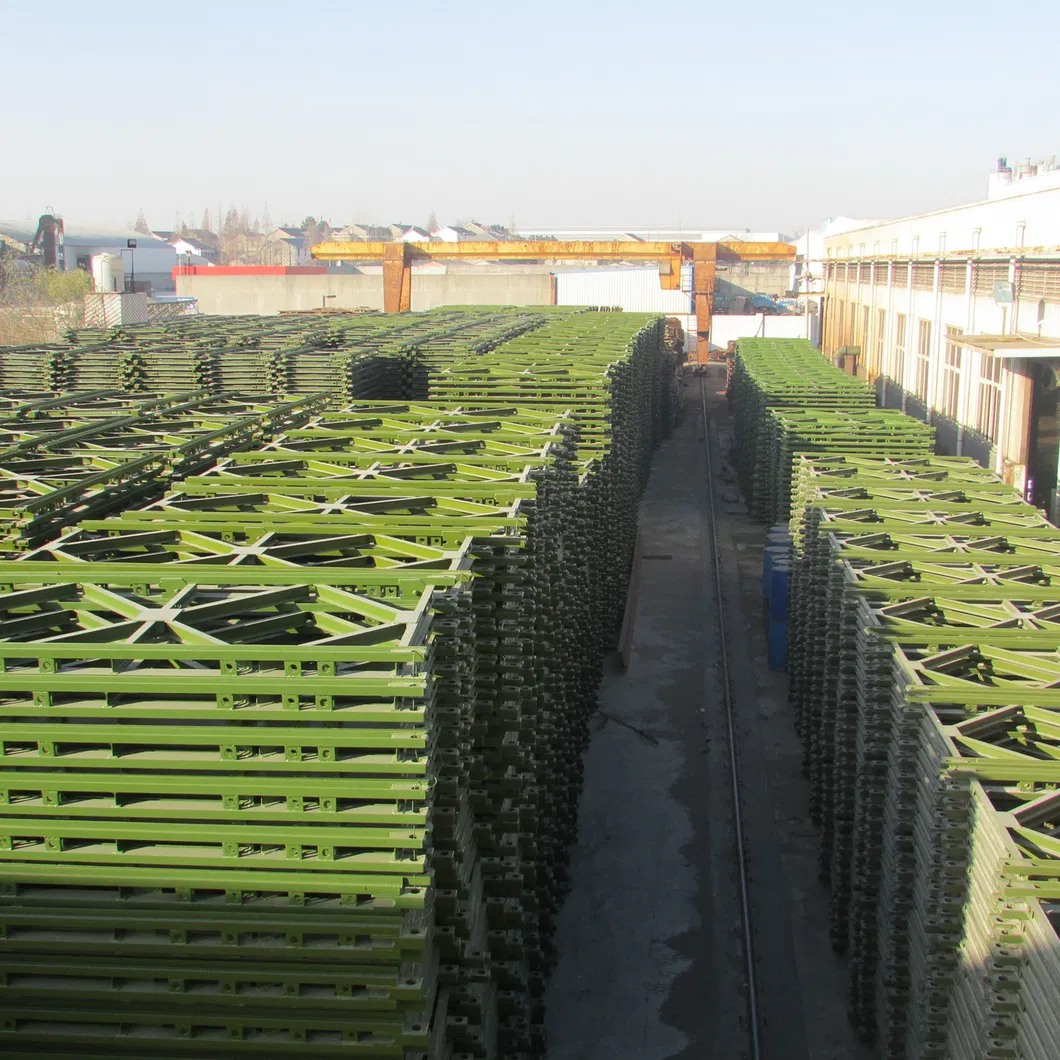

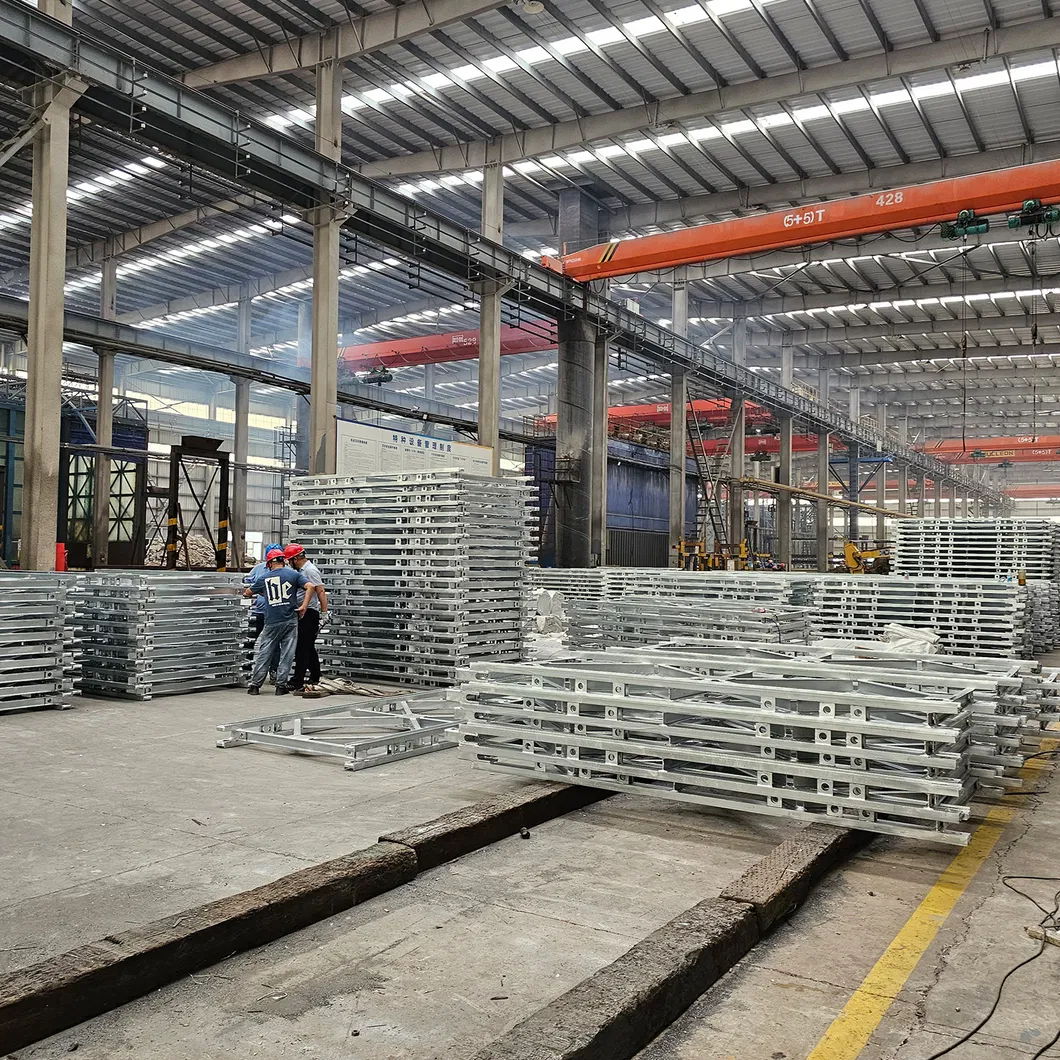

Production Capacity: 60,000 tons/year

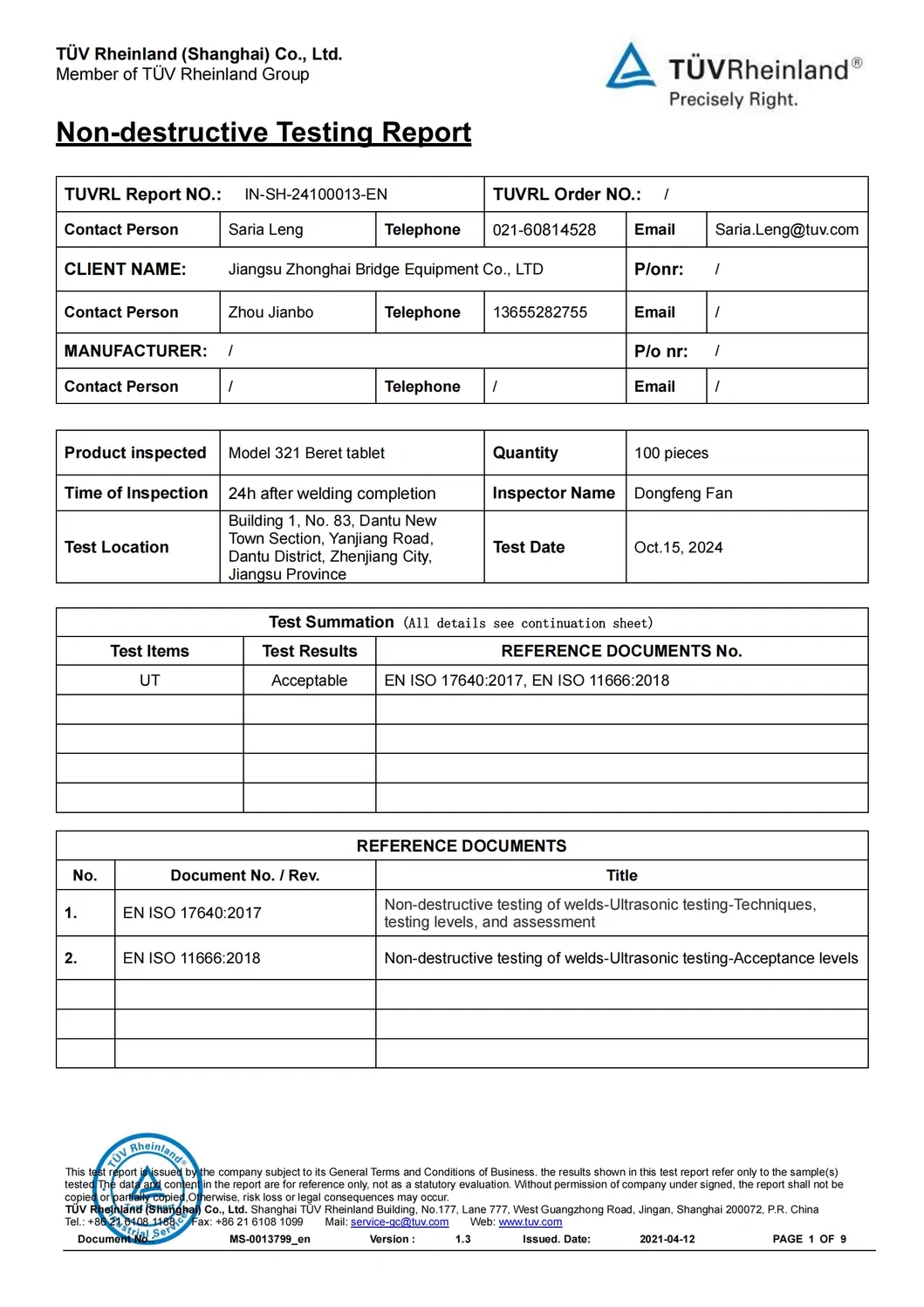

Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Material: Steel Q355B/Q460C or Equivalent
Application: Temporary bridge, platform, gantry frame, float bridge, and construction towers.

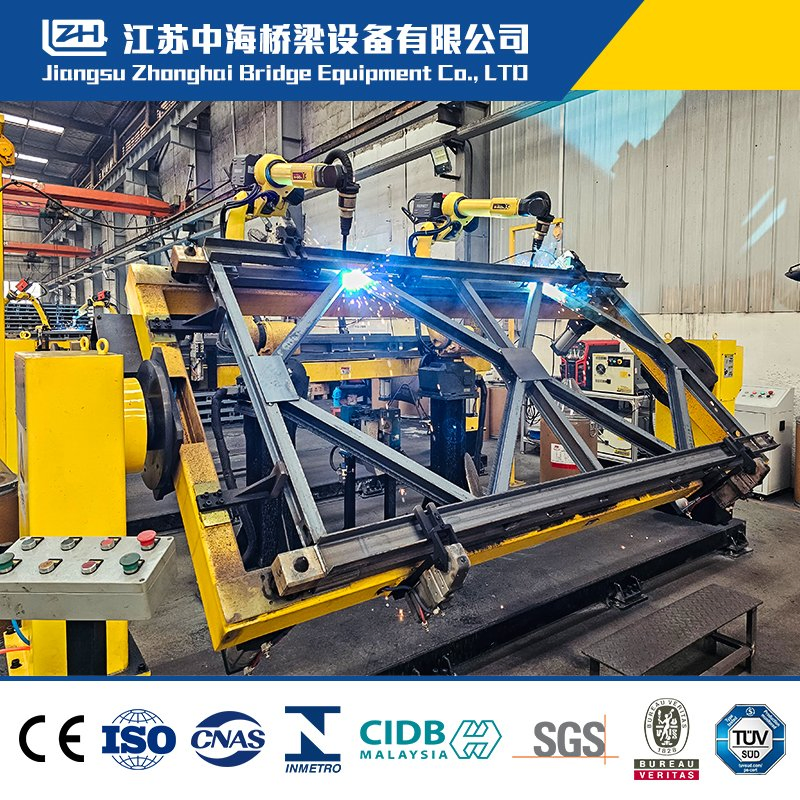

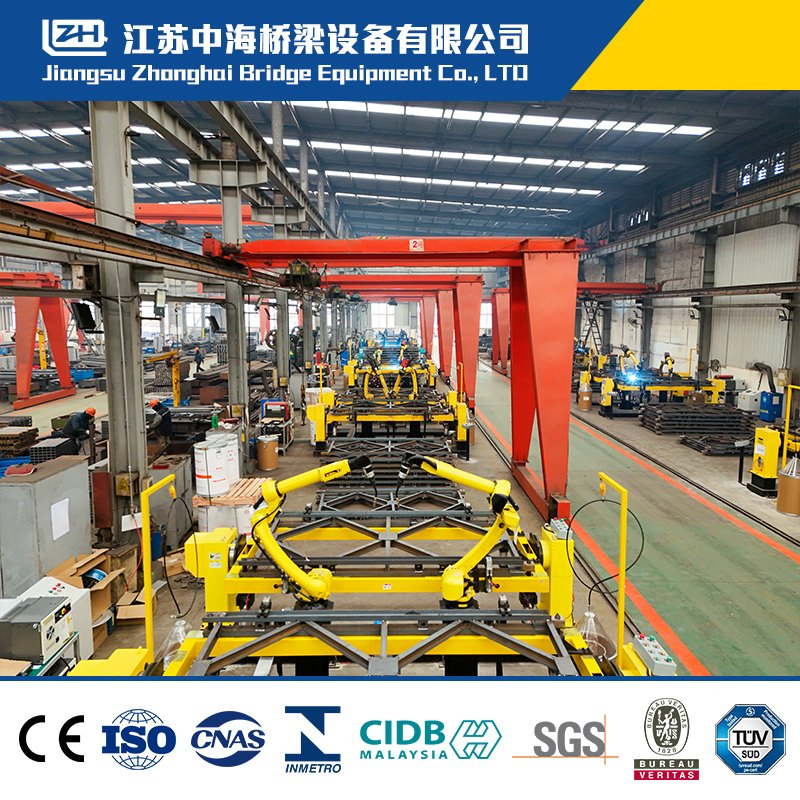

Advantage: Proven Robotic Welding for precise size and superior quality.
