Basic Specifications
Life
Semi-Permanent Bridge
Across Way
Diffuse Water Bridge
Lane Position
Half Through Bridge
Usage
Over Water, Tractor, Pontoon, Footbridge, Highway Bridge
Stress Characteristics
Beam Bridge
Steel Grade
Q355B/Q460C or Equivalent

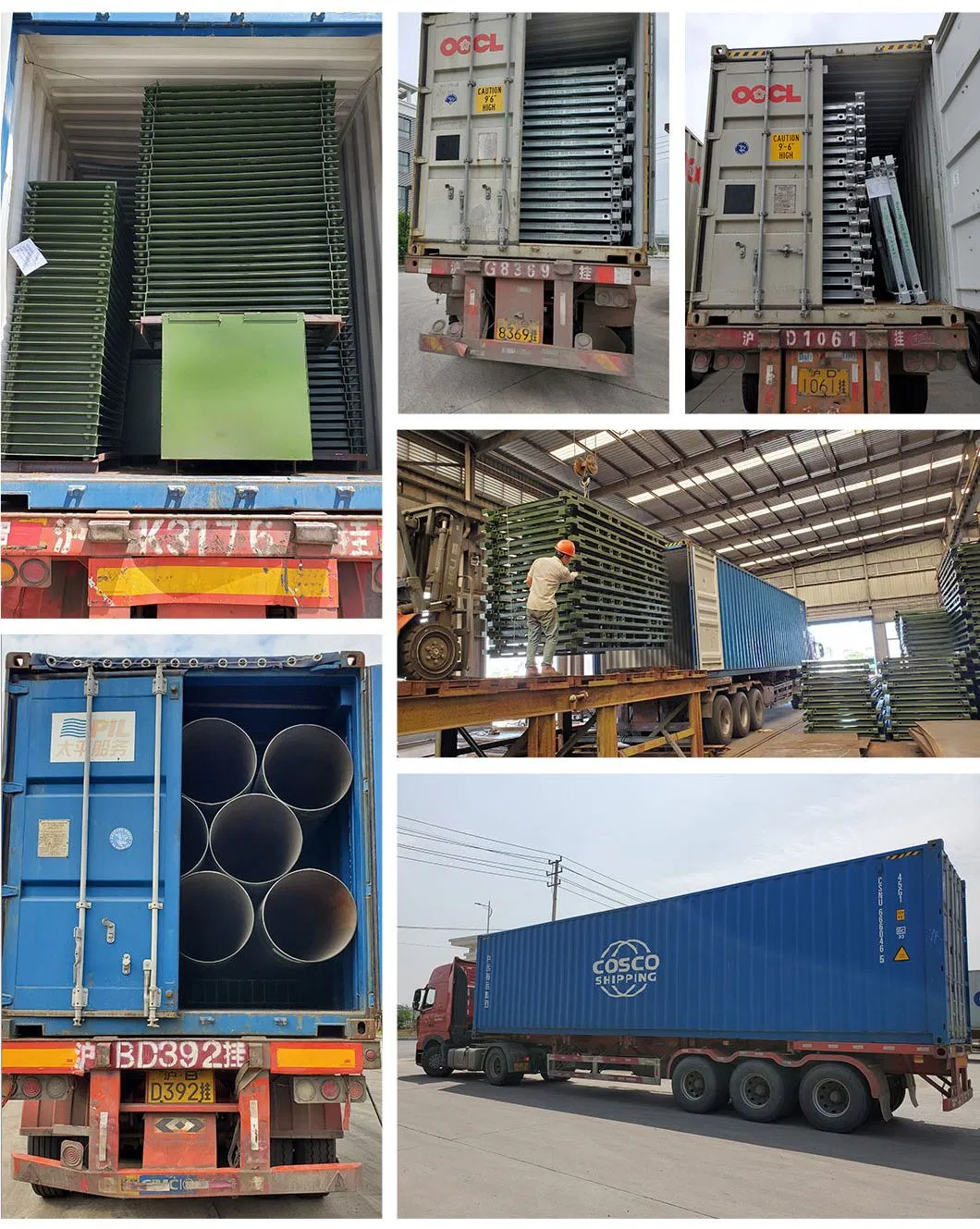

Packaging & Logistics
Package Size
310.00cm * 200.00cm * 180.00cm
Transport Type
Containers or Bulk
Technical Load Data (CB200)
| Internal Force |
Not Reinforced Model |
Reinforced Model |
| SS | DS | TS | QS |
SSR | DSR | TSR | QSR |
| Standard Truss Moment(kN.m) |
1034.3 | 2027.2 | 2978.8 | 3930.3 |
2165.4 | 4244.2 | 6236.4 | 8228.6 |
| Standard Truss Shear (kN) |
222.1 | 435.3 | 639.6 | 843.9 |
222.1 | 435.3 | 639.6 | 843.9 |
Geometric Characteristics
| Structure |
Chord Area (cm²) |
Section Properties (cm³) |
Moment of Inertia (cm⁴) |
| SS | 25.48 | 5437 | 580174 |
| SSR | 50.96 | 10875 | 1160348 |
| DS | 50.96 | 10875 | 1160348 |
| DSR2 | 101.92 | 21750 | 2320696 |

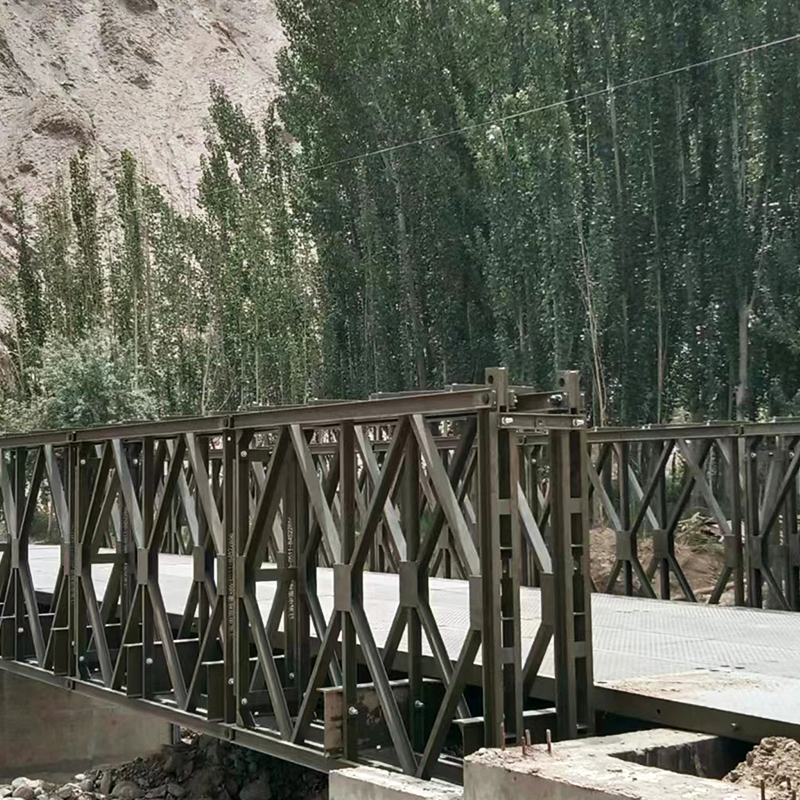

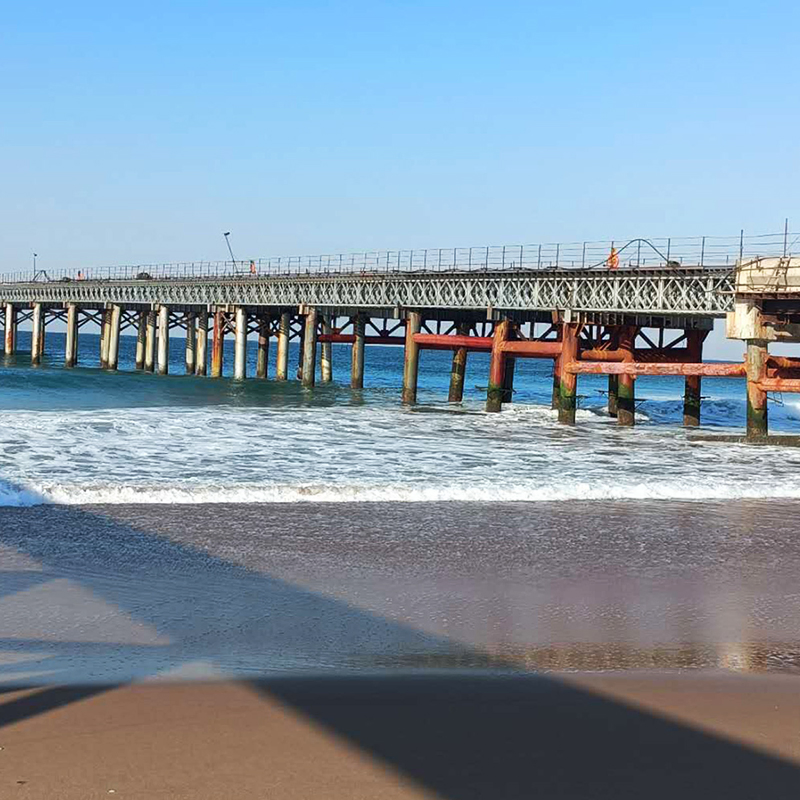

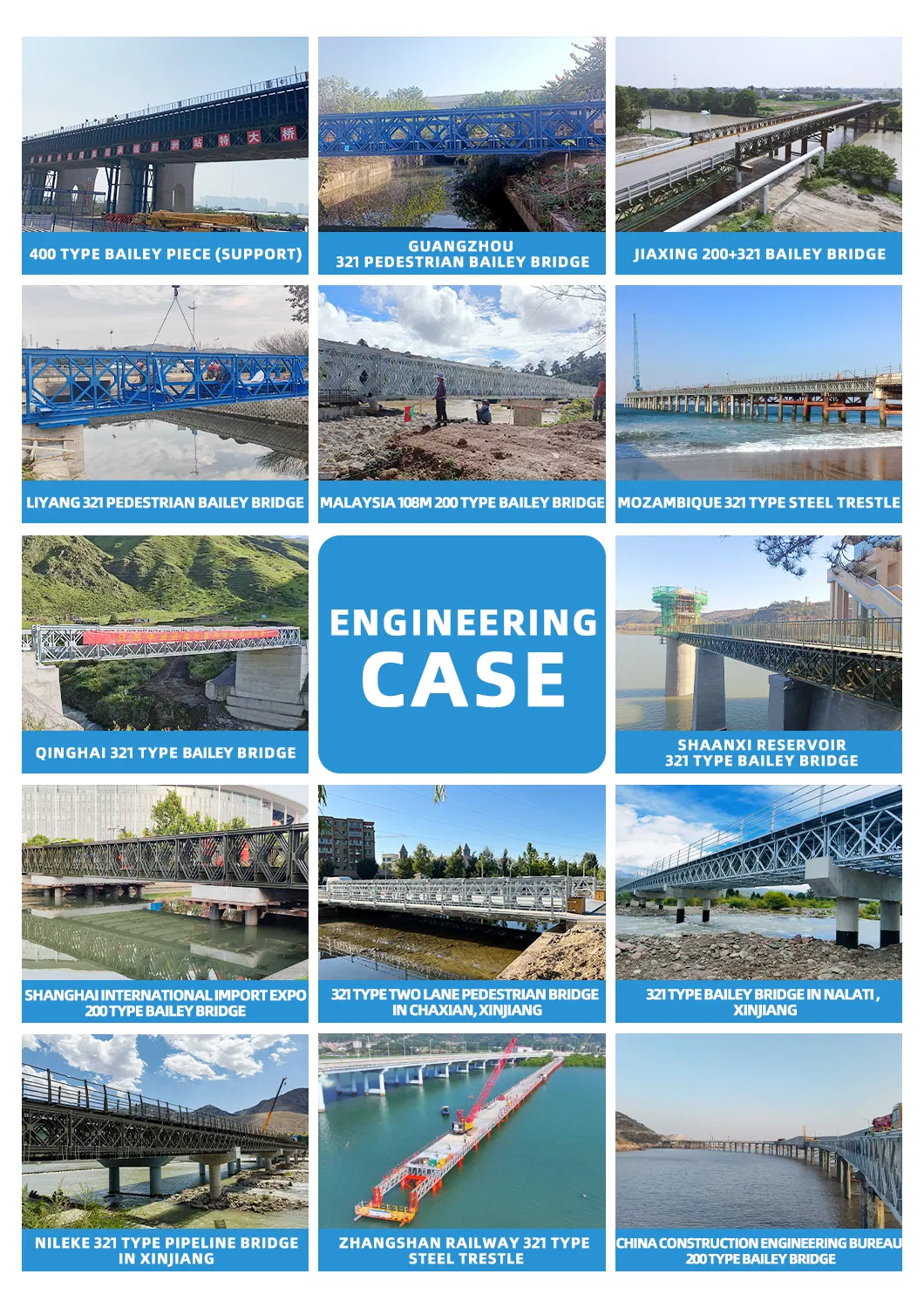

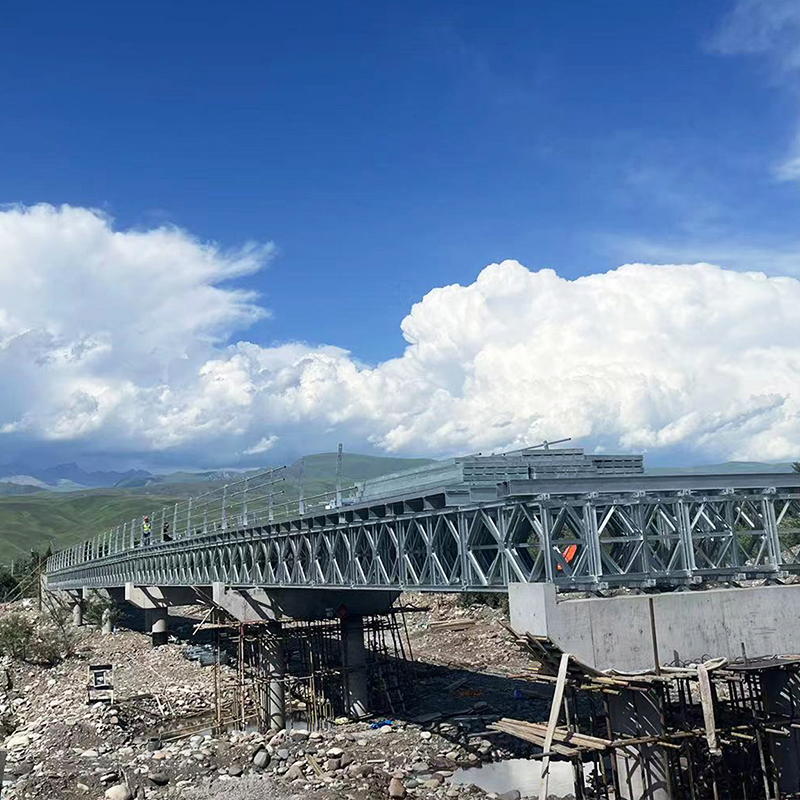

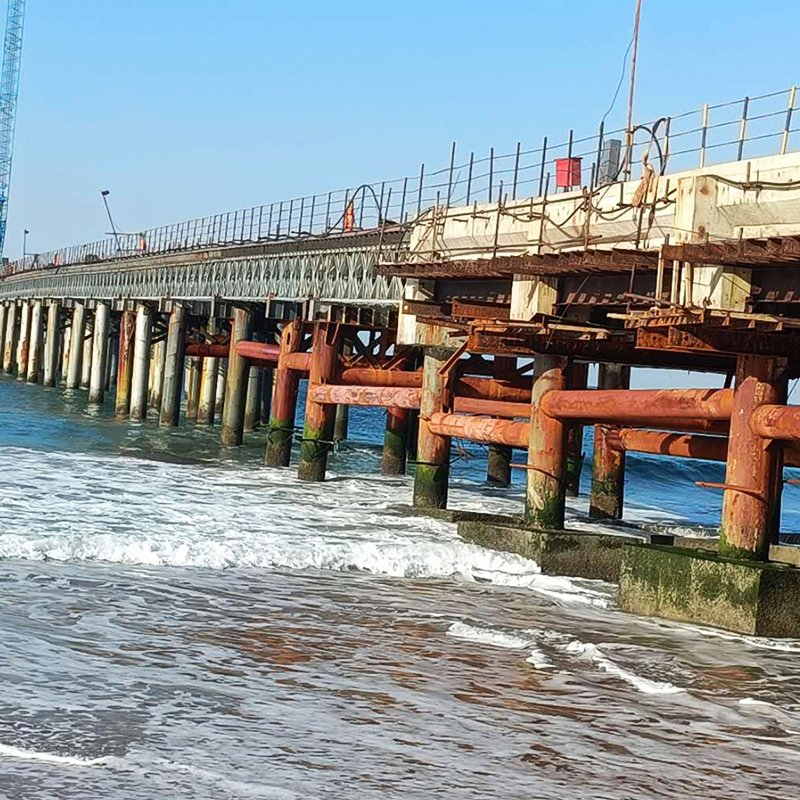

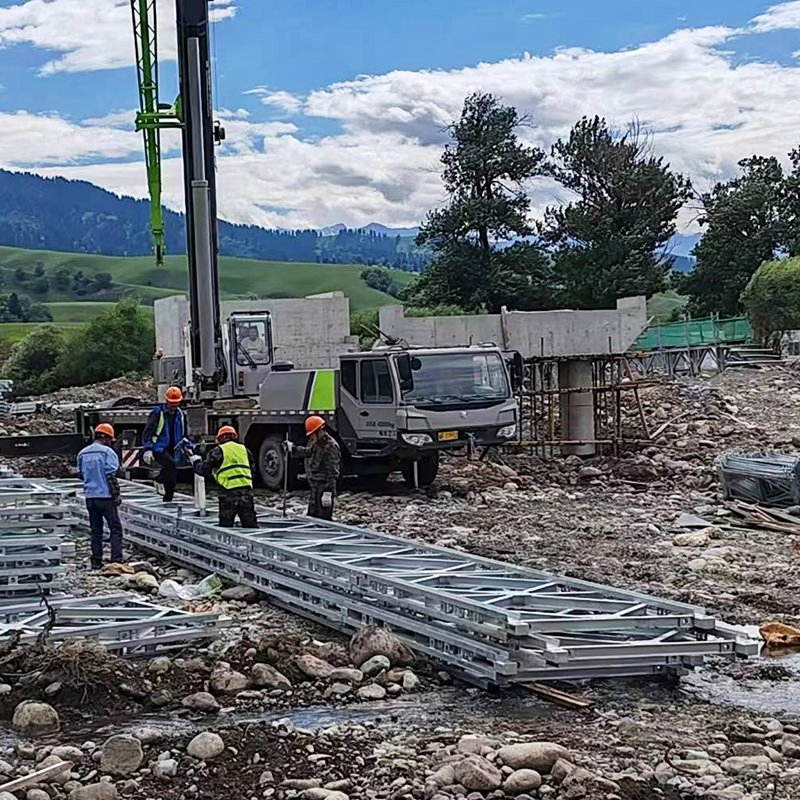

Project Application & Cases

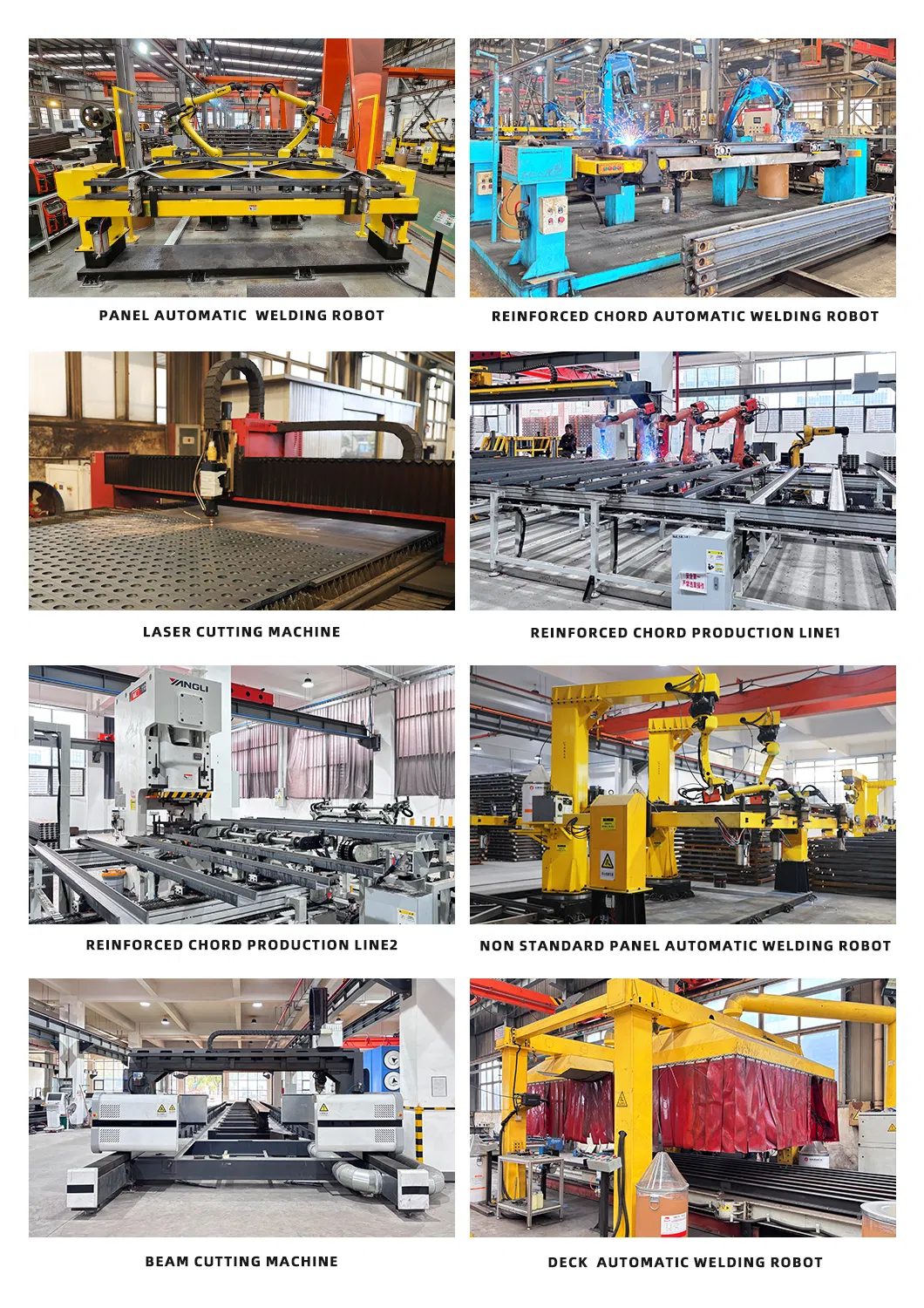

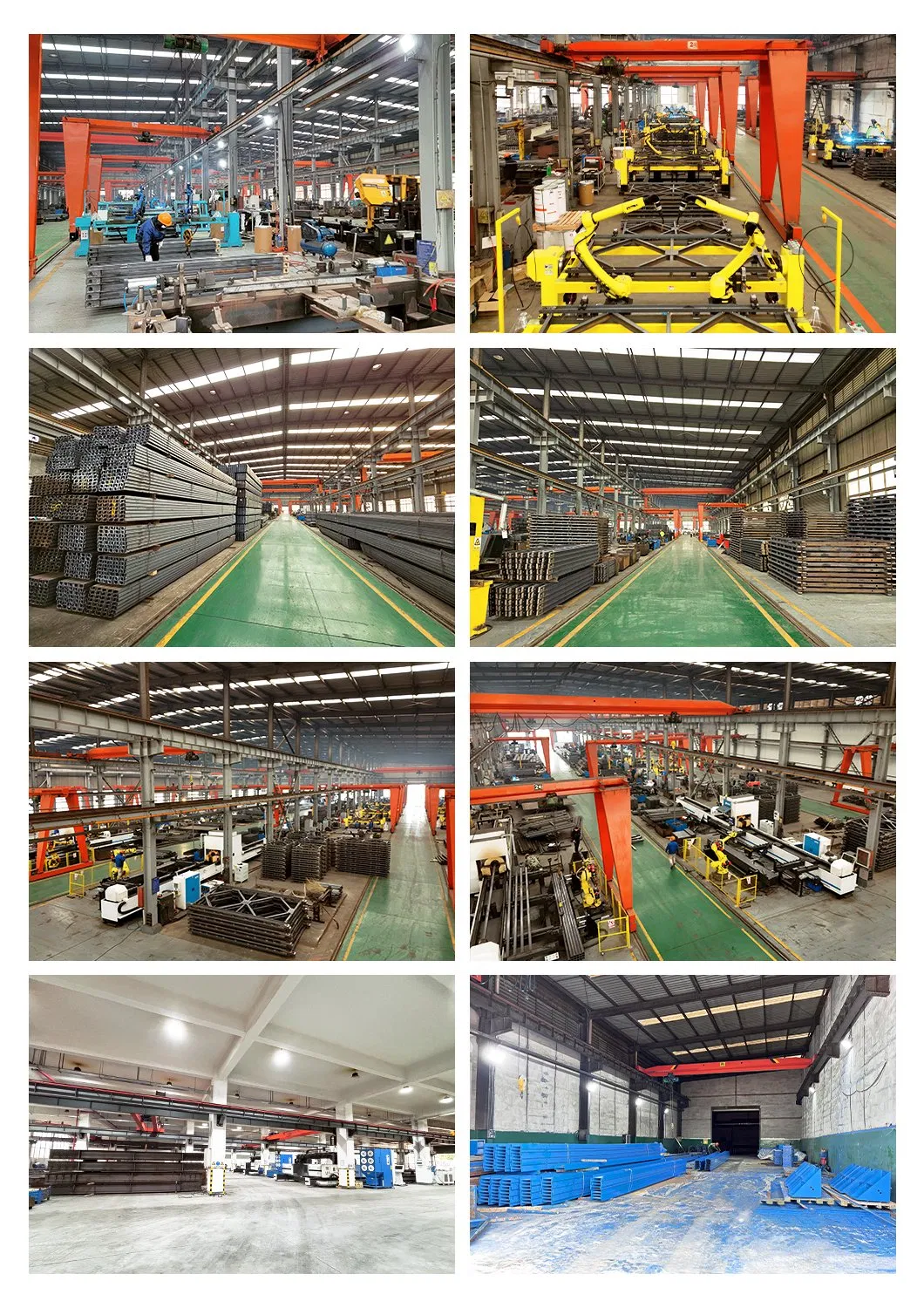

Manufacturing & Workshop
Technical Advantage: Proven Robotic Welding ensures superior quality and precise dimensions for all bridge components.
Materials: Q355B/Q460C high-strength steel.
Standards: Fully compliant with GB, ASTM, DIN, JIS, AISI, BS, SGS, and BV international requirements.
Quality Certificates

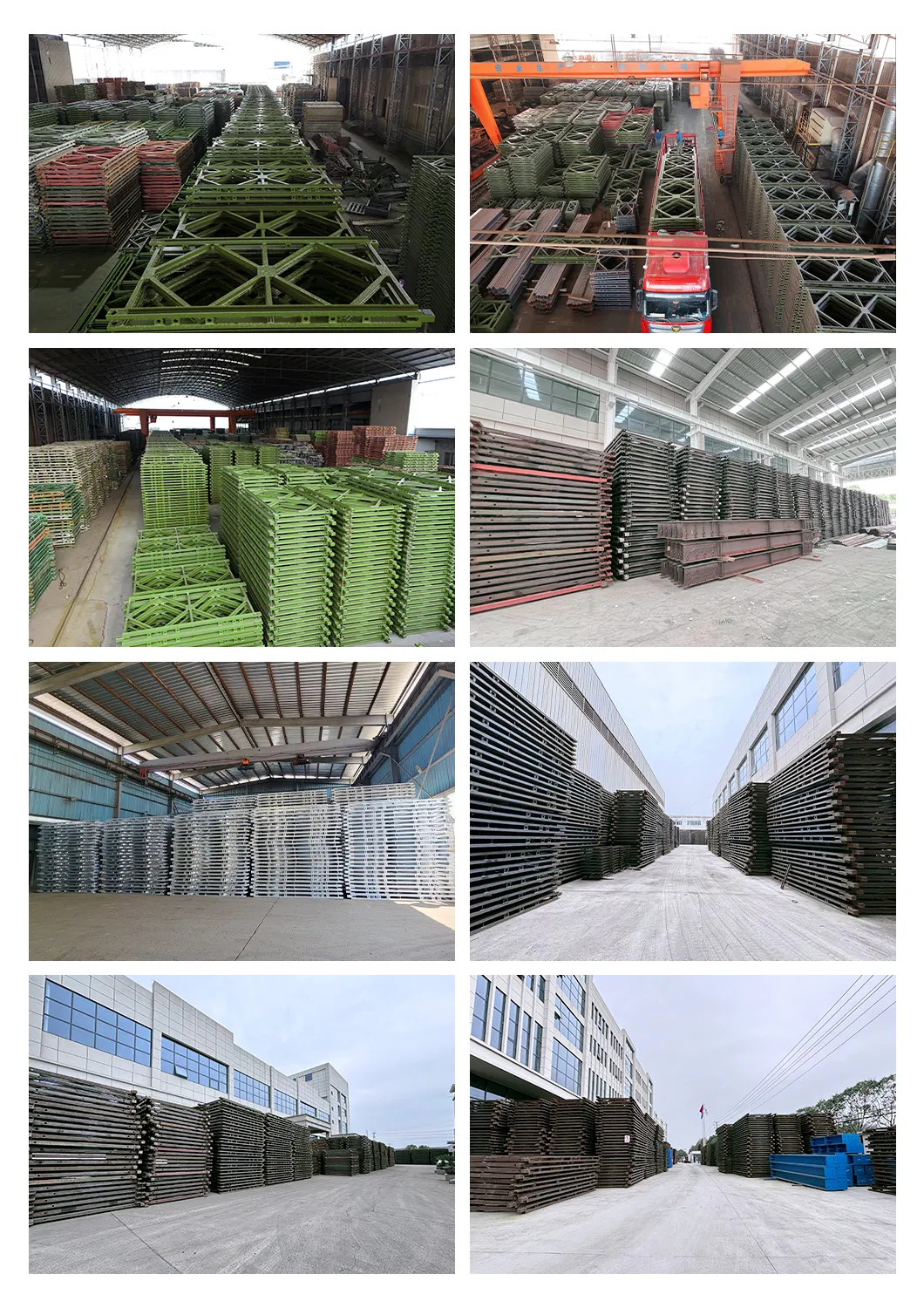

Warehousing & Shipping
Frequently Asked Questions
Are you a factory or a trading company?
We are an integrated industry and trade company with a production capacity of over 60,000 tons per year, specialized in large prefabricated highway steel bridges.
Do you accept custom processing?
Yes, our technical team can design and process a variety of non-standard Bailey bridges and steel structures according to specific requirements.
Can your products meet international standards?
Yes, our products meet several international standards including AASHTO (American), BS5400 (British), and AS5100 (Australian).
Which countries do you export to?
Our products are exported globally to countries including Canada, Russia, Malaysia, Philippines, Kenya, Tanzania, and many more.
How soon can I receive a reply after sending an inquiry?
We provide professional technical feedback within 6 hours. Preliminary designs and quotations are typically delivered within 24 hours after parameters are confirmed.
Can I request a product catalogue?
Certainly. Please provide your contact details, and we will send our hard copy catalogue via international express as soon as possible.
