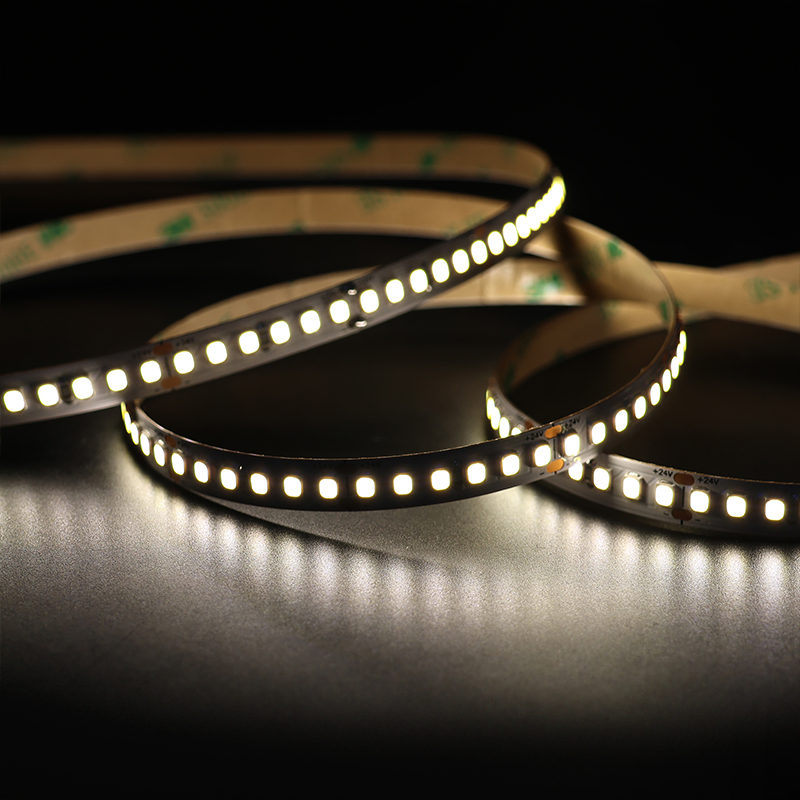

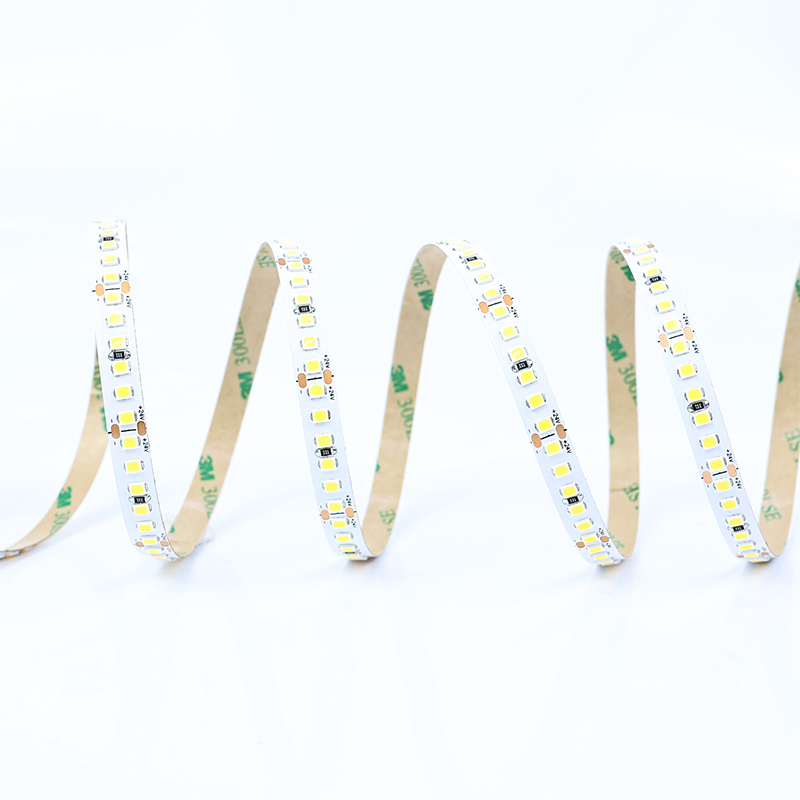

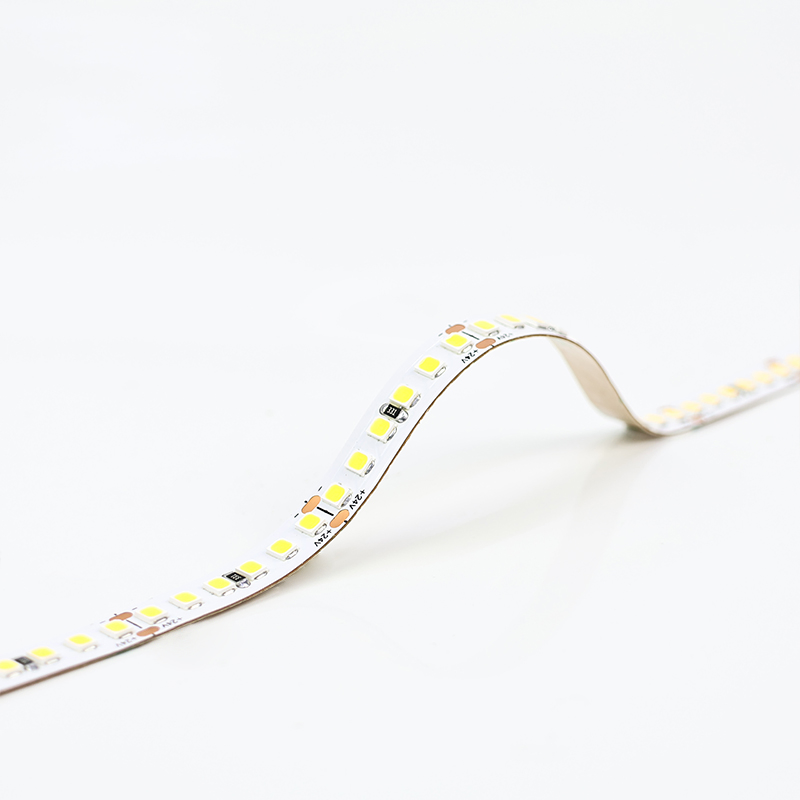

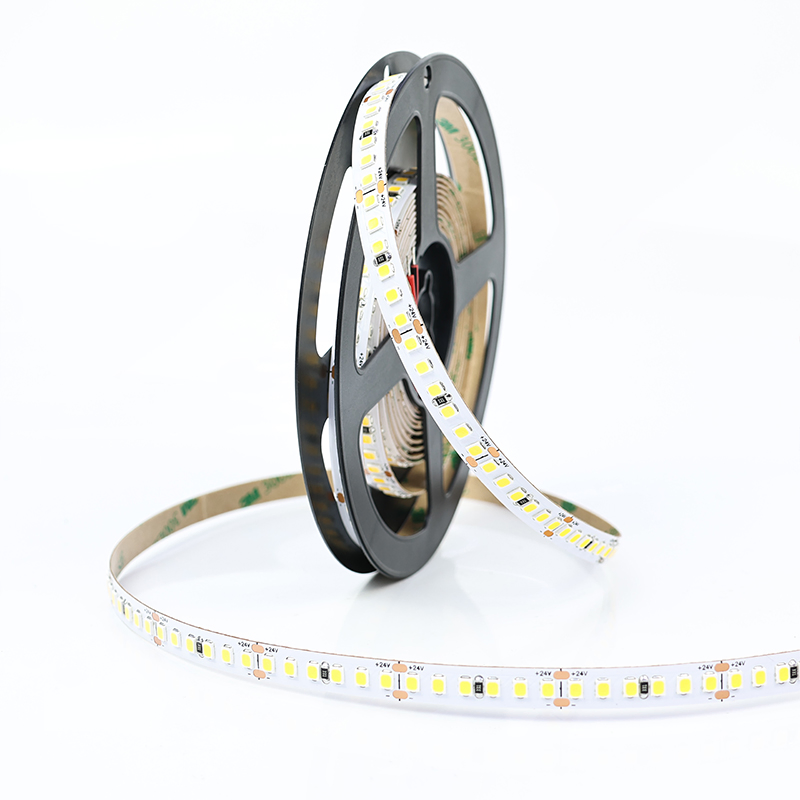

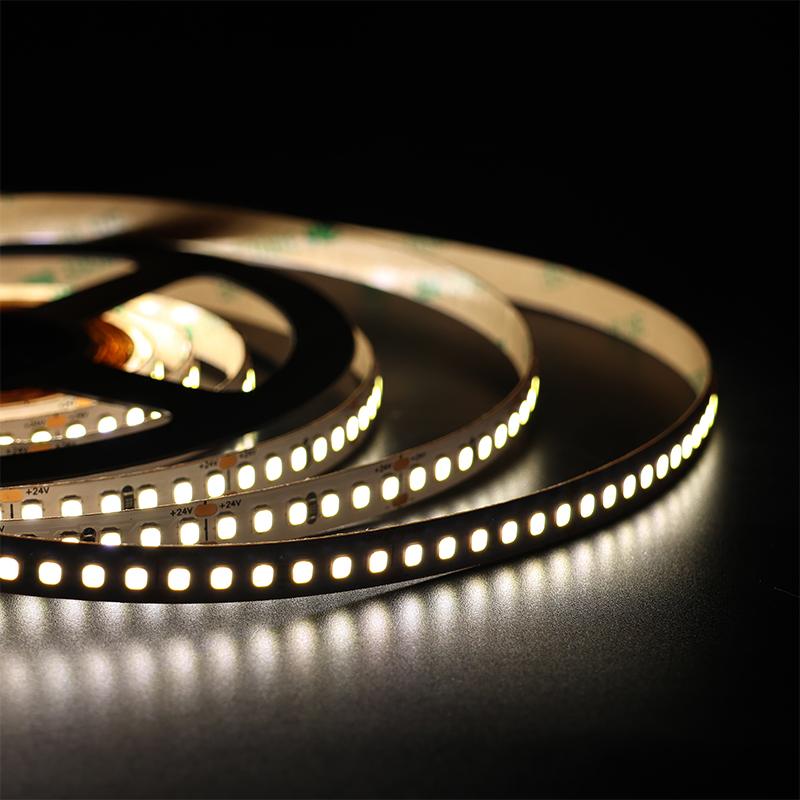

Benhao-24V 8mm Ra95 SMD2835 192LED Linear LED Strip 12W CE Certified

1 / 5

Benhao-24V 8mm Ra95 SMD2835 192LED Linear LED Strip 12W CE Certified

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HSY-FS2835G192W*C*W*V24-P20

Emitting Color

Warm/Nature/Cool White, R/G/B/O/Y/P

Voltage

12V / 24V DC

IP Rating

IP20/ IP65/ IP67/ IP68 Optional

Size

5000*8*1.8mm

Type

Flexible LED Stripe

LED Source

Quality SMD2835

Power

16W/M

Luminous

24-26lm/LED

Working Life

>50,000 hours

Warranty

3-5 Years

Certificates

TUV CE, FCC, RoHS, IEC/En62471, Lm-80

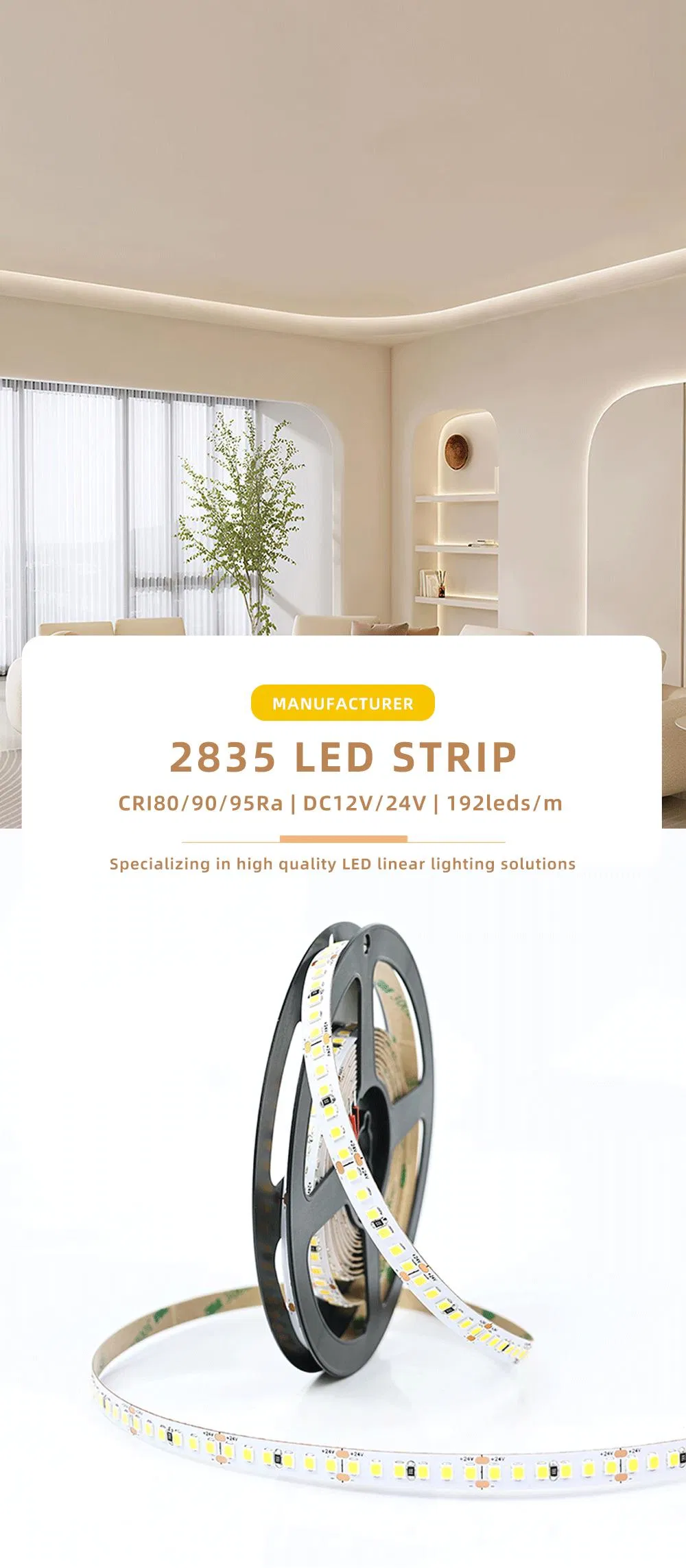

High Lumen 2835 192LEDs/m White Flexible LED Strip Light

Product Parameters

Model No.	HSY-FS2835G192WCWV-P20
LED Quantity	192LEDs/m 2835
Color Temperature	2000K - 12000K Optional
Voltage	24V DC
Power Consumption	4.8W - 16W/M Optional
CRI (Ra)	CRI >80 (CRI >90 / >95 optional)
PCB Width	8mm

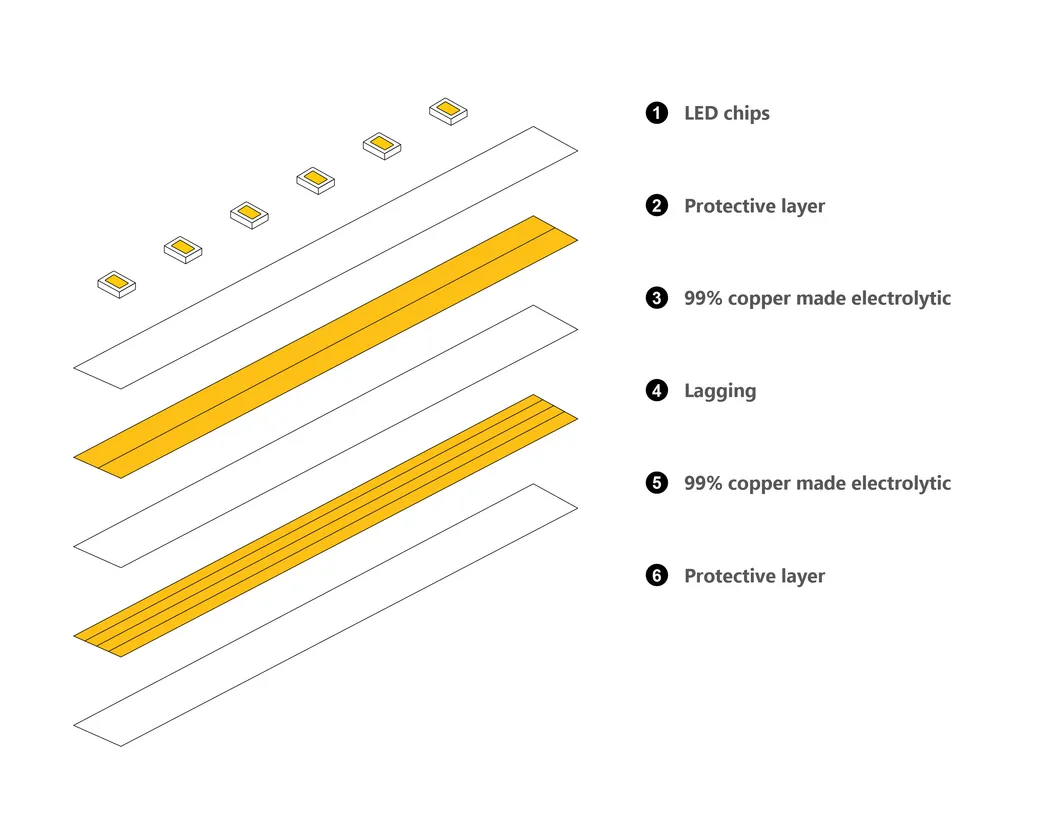

PCB Materials	2Oz Double-Sided pure copper
Luminous	24-26lm/LED (1800-2400lm/m)
Cutting Unit	6LEDs (31.25mm)
Adhesive Tape	Original 300LSE 3M tape

Our Advantages

Certified by TUV CE, FCC, RoHS, and IEC/EN62471.
High CRI >95Ra for superior color rendering, ideal for commercial displays.
Large material stock ensuring consistent color temperature across batches.
Rapid delivery time: 3-5 working days.

Key Features

LED Source: High brightness 24-26lm/LED with low decline (<3% after 3000h).
Modular Design: Every 3 or 6 LEDs work independently.
Dimmable: Supports manual, IR, or smart dimming systems.
Easy Installation: Pre-applied 3M adhesive tape for maintenance-free mounting.

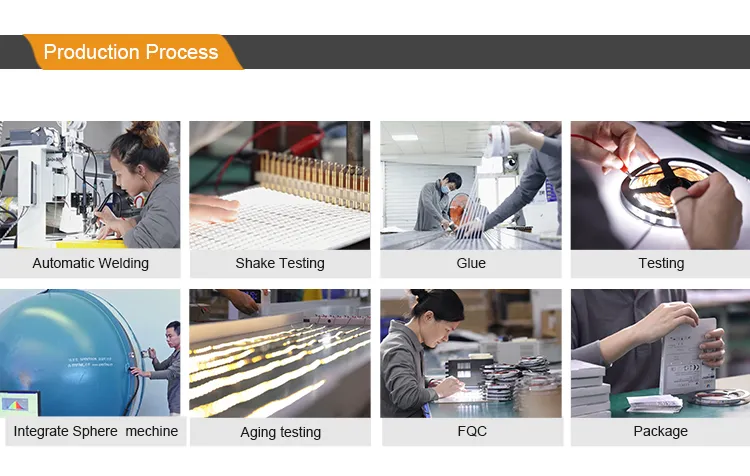

Aging Test: 100% aging line testing before shipment to ensure quality.

Model	LED Qty	Output	Power	PCB Width
TLV-FS2835Q30W	30LEDs/m	12/24V DC	6W	8mm / 10mm
TLV-FS2835Q60W	60LEDs/m	12/24V DC	12W	8mm / 10mm
TLV-FS2835Q120W	120LEDs/m	12/24V DC	16W	8mm / 10mm
TLV-FS2835Q168W	168LEDs/m	12/24V DC	18W	10mm
TLV-FS2835Q240W	240LEDs/m	24V DC	20W	10mm

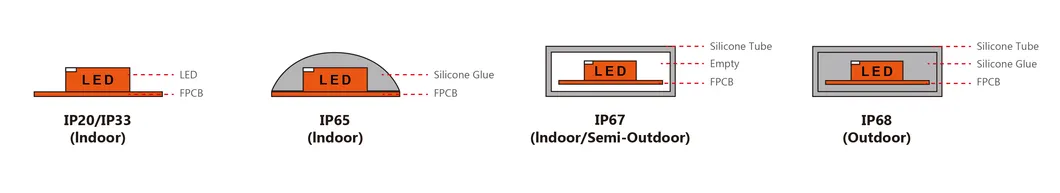

IP Rating Options

IP20: Bare board for indoor dry locations.
IP65: Silicone dropper for damp locations (kitchens, bathrooms).
IP67: Silicone tube protection for indoor/outdoor use.
IP68: Silicone tube with filling for underwater/outdoor environments.

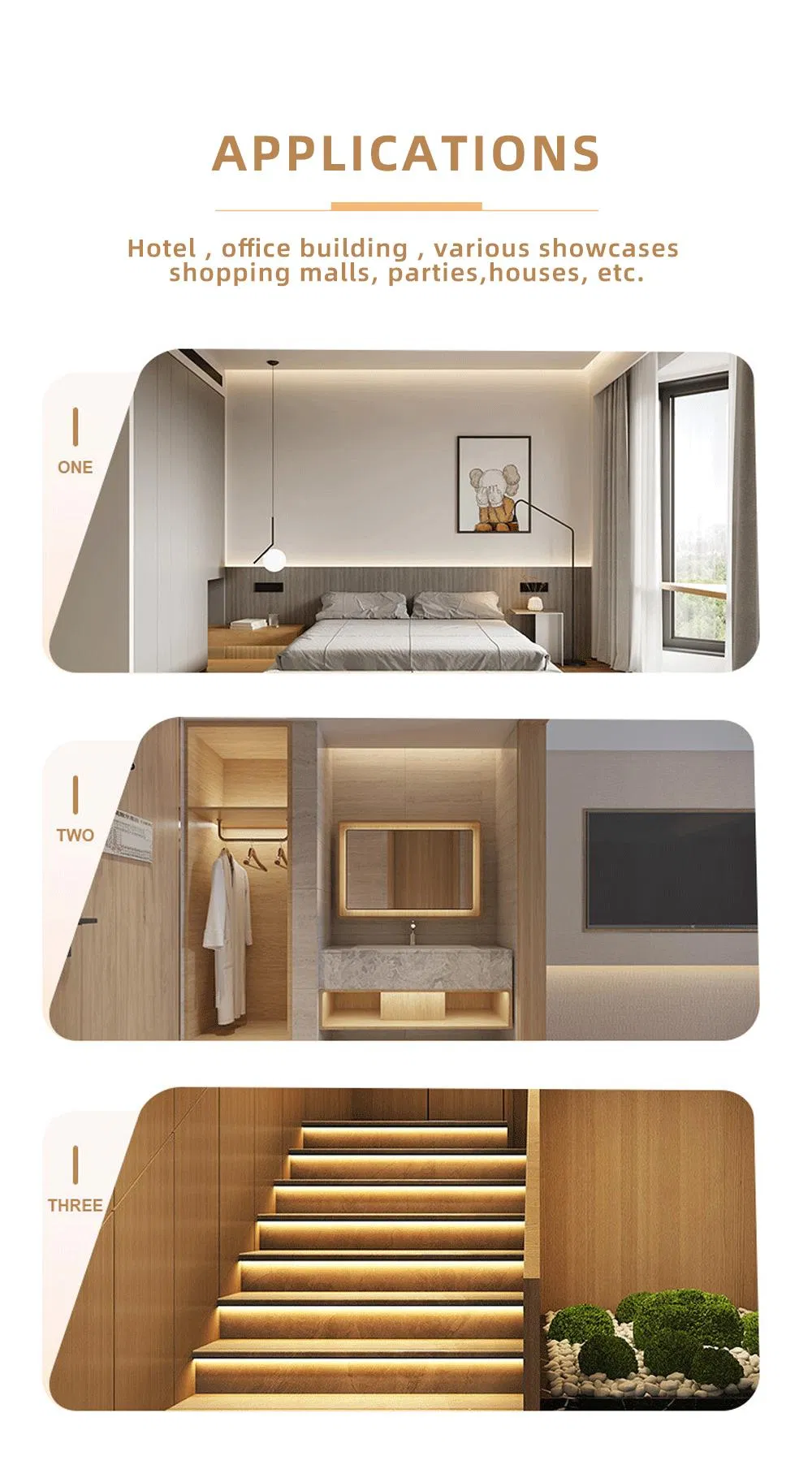

Versatile Applications

Hotels Kitchens Museums Bars & KTV Shopping Malls Commercial Signage

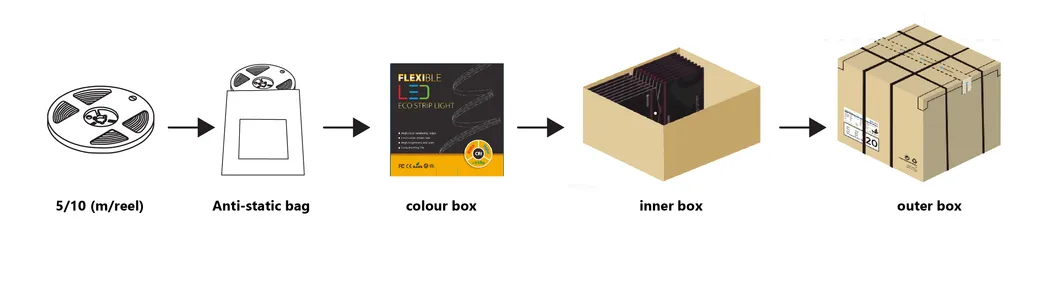

Packaging & Logistics

Standard Packaging: 5 meters/roll, individual box (132x132x15mm).
Bulk Capacity: 100 rolls per carton.
Shipping: Global express (DHL, FedEx, UPS), Air, or Sea freight.

Frequently Asked Questions

Q1: Do you offer free samples? A1: Yes, we provide free samples. Please note that shipping costs are excluded.

Q2: What is your Minimum Order Quantity (MOQ)? A2: Usually, the MOQ is 50m, but we also accept smaller trial orders.

Q3: What is the standard delivery time? A3: Samples are ready within 3-5 days. Bulk orders typically take 7-10 working days depending on the quantity.

Q4: How are the products delivered? A4: We ship via Express (DHL/FedEx/UPS), Air, or Sea transportation.

Q5: What payment terms do you accept? A5: We accept T/T, PayPal, Western Union, and Cash.

Q6: Do you provide OEM/Customized services? A6: Yes, we offer comprehensive OEM services, including custom logos on products and personalized packaging.
