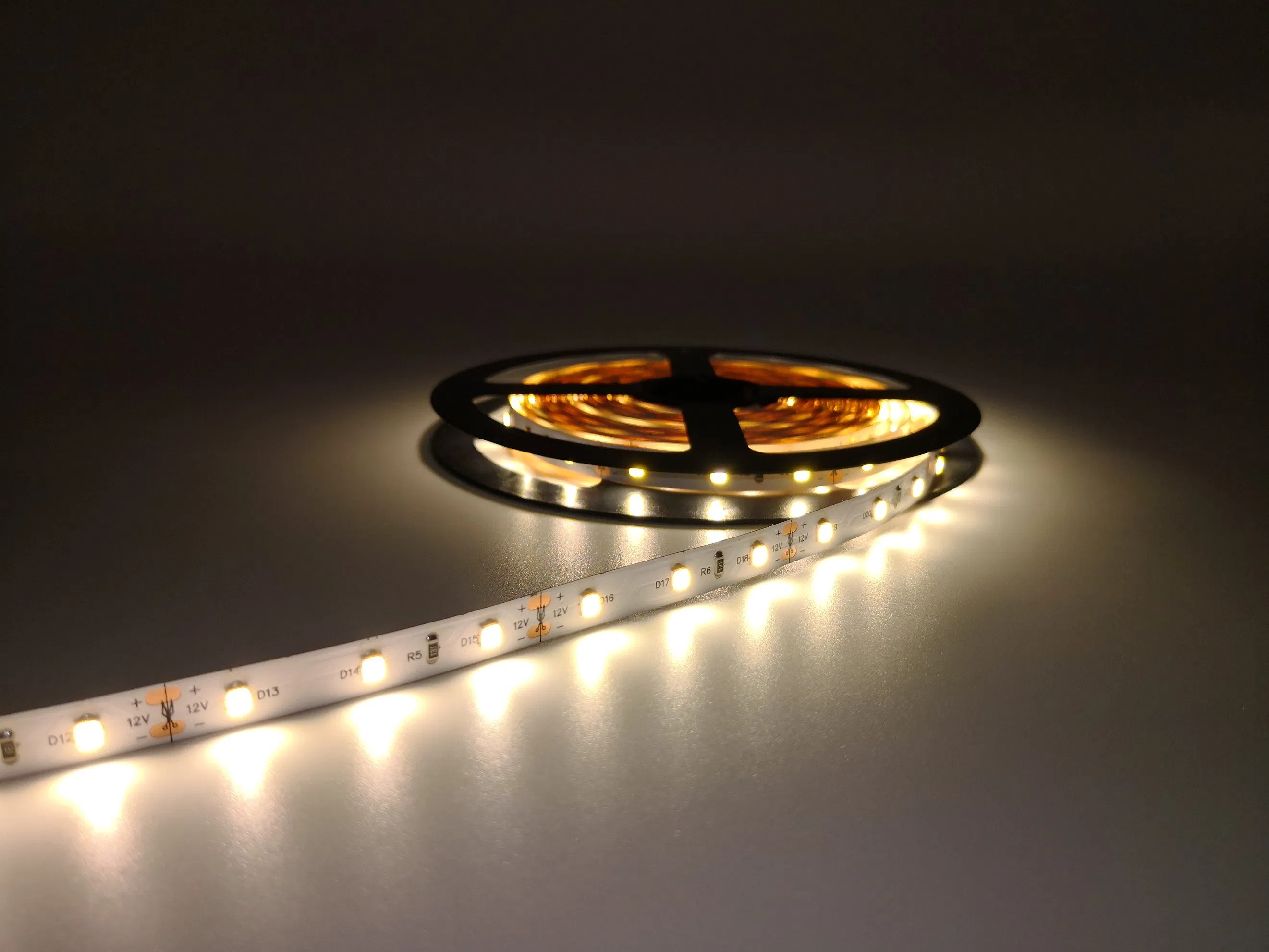

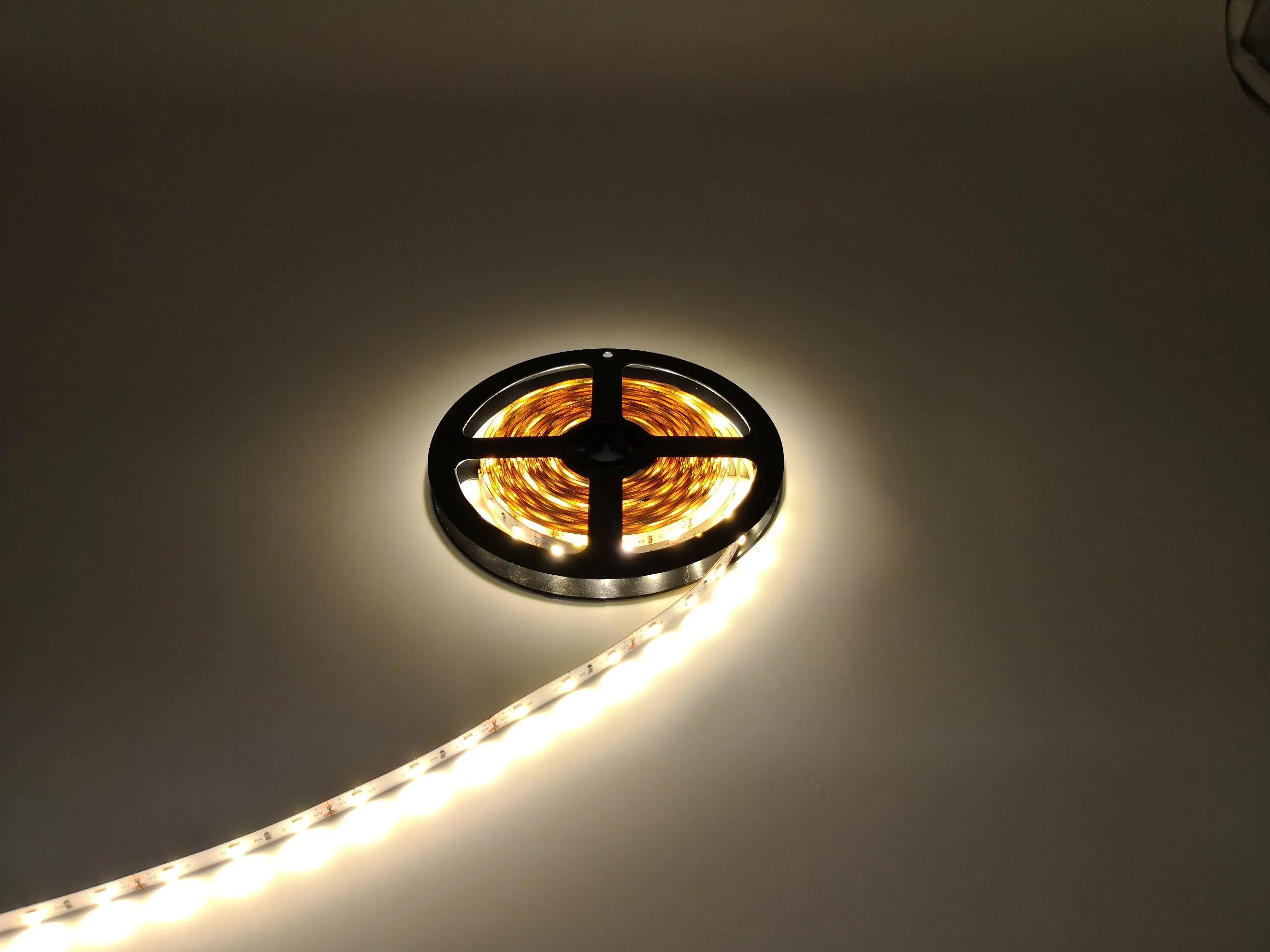

Custom 60LEDs/M Addressable LED Strip Outdoor Pixel RGB LED Neon Flex Strip

1 / 5

Custom 60LEDs/M Addressable LED Strip Outdoor Pixel RGB LED Neon Flex Strip

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.

60leds/m LED Strip

Emitting Color

Warm White/Nature White/Cool White, R/G/B/O/Y/P

Voltage

12V DC

IP Rating

IP20/ IP65/ IP67/ IP68

Type

Flexible LED Strip Light Non-Waterproof Waterproof

LED Quantity

60LEDs/M 2835 5mm

LED

99.99% Gold Wire and Red Copper Pad

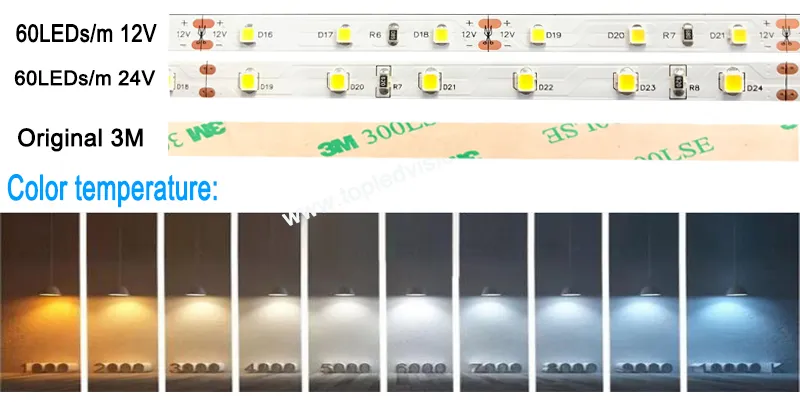

Color Temp

2700K,3000K,4000K,6000K

LED Chip Brand

Sanan ( Epistar / Samsung Optional )

LED Bins

2-Step/3-Step/6-Step, Same Bin for Each Order

LED Luminous

24-26lm/LED 2835

PCB Material

Double-Sided Pure Copper Circuit Board

PCB Width

5mm

CRI

High CRI >95ra

LED Testing

IEC/En62471, Lm-80

Adhesive Tape

Original 300lse 3m Tape

Packing

5m/Roll, Color Box / Anti-Static Bag

Warranty

2-3 Years

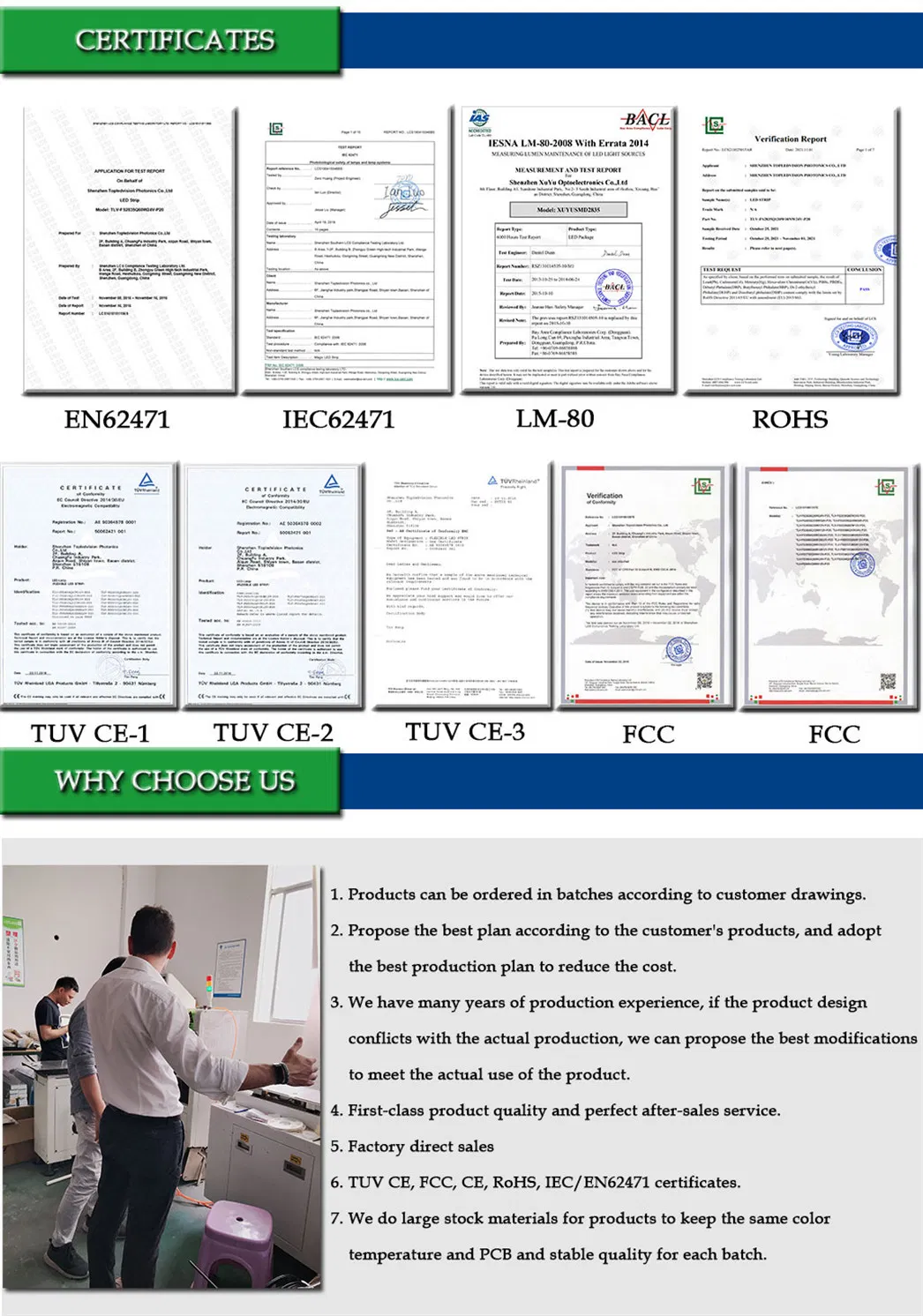

Certificates

TUV CE, FCC, RoHS, IEC/En62471

HS Code

9405429000

Capacity

100000m/Month

💡 Product Description

Custom 60leds/m addressable led strip outdoor pixel RGB LED Neon Flex Strip

Product Parameter

Model: TLV-FS2835Q60W

Specification	Details
Model No	TLV-FS2835Q60W
Product name	SMD2835 60LEDS/M LED strips
LED Light Source	High qualiy SMD LED 2835 24-26lm/led

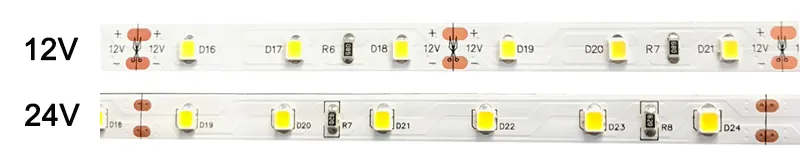

Working volt	12V/24V DC
Power(w)	12W/M
Product size	5000*5MM
PCB Base	2OZ Copper and double sides PCB
Color	WW/NW/CW/R/G/B/Y/P
View Angle	120
CRI(RA>)	>80Ra
IP rate	IP20(IP33/IP65/IP67/IP68)
Luminous	1200lm
Cutting Unit	3leds(50MM)/6leds(100MM)
Dimmable	Yes
Warranty	2-3 years warranty
Certifications	TUV CE, FCC, IEC/EN62471 and LM-80 testing

Our Advantages

High quality SMD LED Our SMD LED use 99.99%(Au) gold wire and red copper pad. 24-26lm led lumen, which is better dissipation, long lifespan and low light decline. SMD LED passed LM-80 testing standard, less than 3% lumen down after 5000H working.

High quality double-side PCB We use Electrolytic copper as PCB materrial, the electrolytic copper is equipped with a dual circuit board , which is better heat disspation and more stable use.

Good color consistency and reliable quality We have long-term and large raw material in stock, so always same LED color temperature and strict production for LED strip to keep the same color and stable quality for every batch.

Comparison	Ours	Cheaper Options
Wire	99.99% gold wire	Alloy wire
Pad	Yellow copper	Iron
Led lumen	24-26lm	22-24lm
Light decline rate	3% after 5000H	10% -30% after 5000H
Working life	3-5 years	1-2 years
Packing	Colorful gift box	Aluminum foil bag
Certification	LM-80	Unknown

Features

LED source: 24-26lm/LED high brightness.
Modular design: 3leds or 6leds independent modules.
Voltage: 12V/24VDC for long connections.
Working current: 90-95% efficiency.
FPC size: Flexible 8mm/10mm width.
Customized size: Support custom length cutting.
Dimming support: Adjustable brightness.
Lifespan: 30,000+ hours working life.

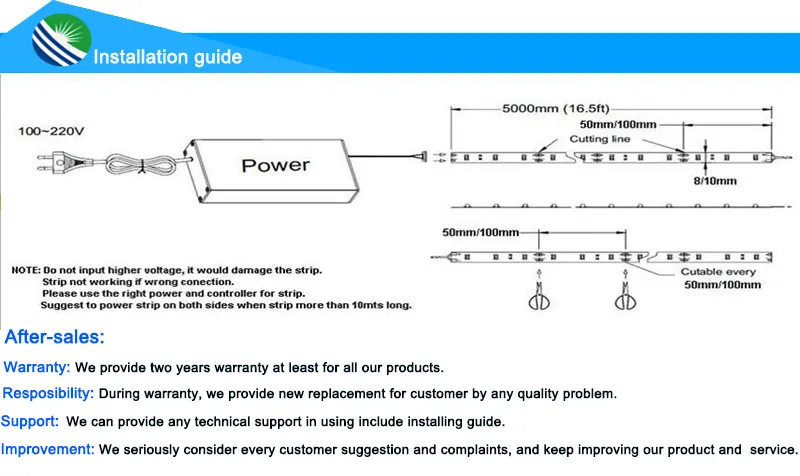

Easy Installation: 3M tape on the back.

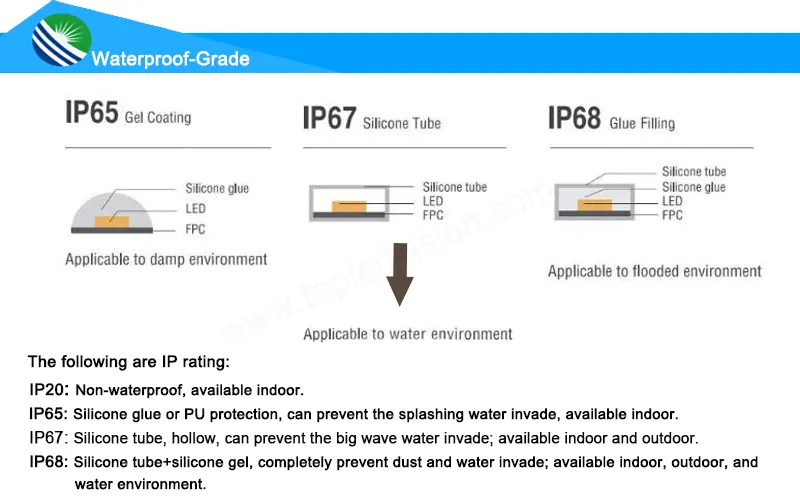

IP rating: Multiple indoor/outdoor levels.
Low Temp: ≤ 15º C temperature rise.
Quality Test: 100% aging line test.

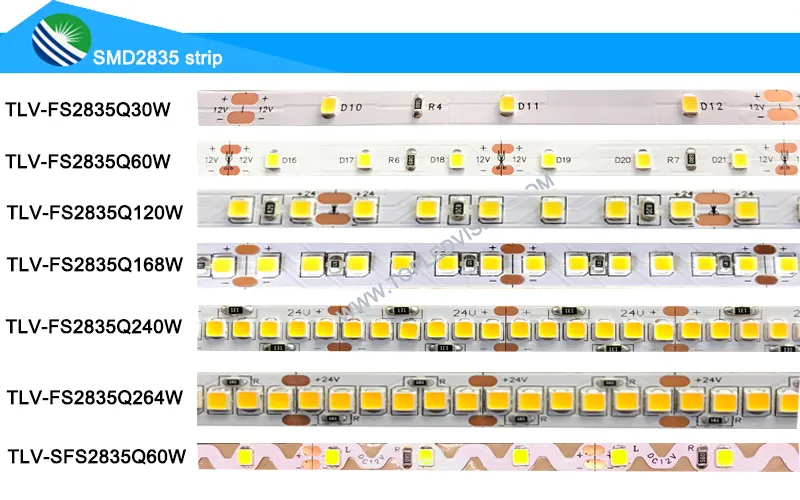

Model List

Model	LED Qty	Output	Power	PCB Width
TLV-FS2835Q30W	30leds/m	12/24V DC	6W	8mm
TLV-FS2835Q60W	60leds/m	12/24V DC	12W	8mm
TLV-FS2835Q120W	120leds/m	12/24V DC	16W	8mm
TLV-FS2835Q168W	168leds/m	12/24V DC	18W	10mm
TLV-FS2835Q240W	240leds/m	24V DC	20w	10mm
TLV-FS2835Q264W	264leds/m	24V DC	22w	10mm
TLV-SFS2835Q60W	60leds/m	12V DC	12w	6mm

Applications

Hotel, kitchen, house decoration
Hospitals, museum, School
Bar, stage, casino, KTV, supermarket
Store, cafe, restaurant, shopping center
Residential, commercial buildings
Ad, Sign, Corridors decorative lighting

Frequently Asked Questions

Do you have free samples?

Yes, we can offer you free samples, excluding shipping cost.

What is your minimum order quantity?

Usually MOQ is 50m, but we also accept small orders for trial.

What's your delivery time?

Samples can be finished within 3-5 days, bulk orders take about 7-10 working days according to quantity.

What are your usual delivery ways?

Normally, we help you send the products by Express, Air, or Sea transportation.

What's the payment term?

We accept T/T, PayPal, Western Union, or Cash.

Do you offer OEM customized services?

Yes, we offer OEM services. We can print your logo on products and customize the packaging and other specifications for you.
