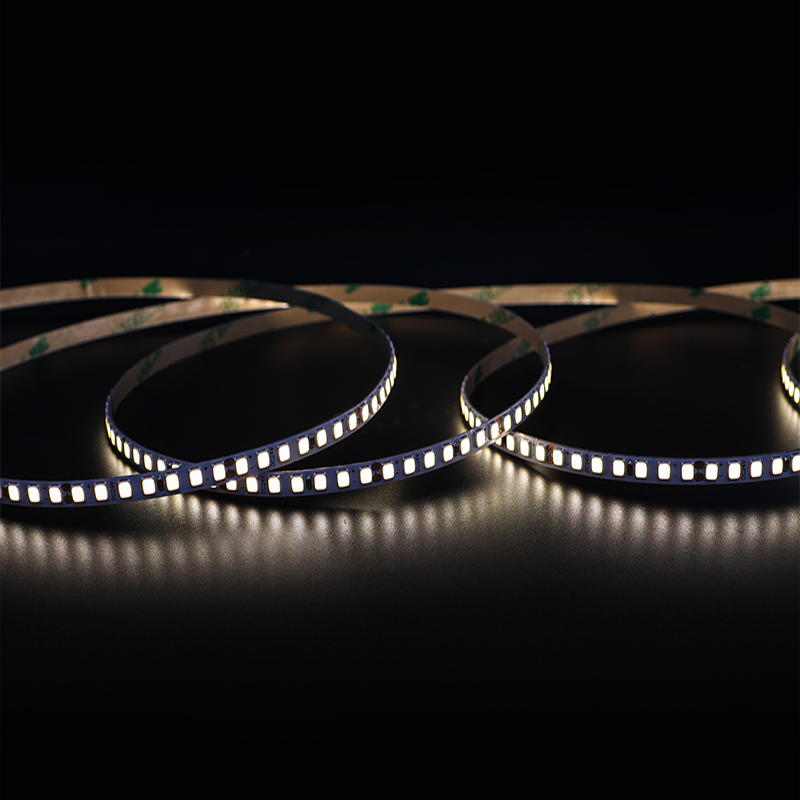

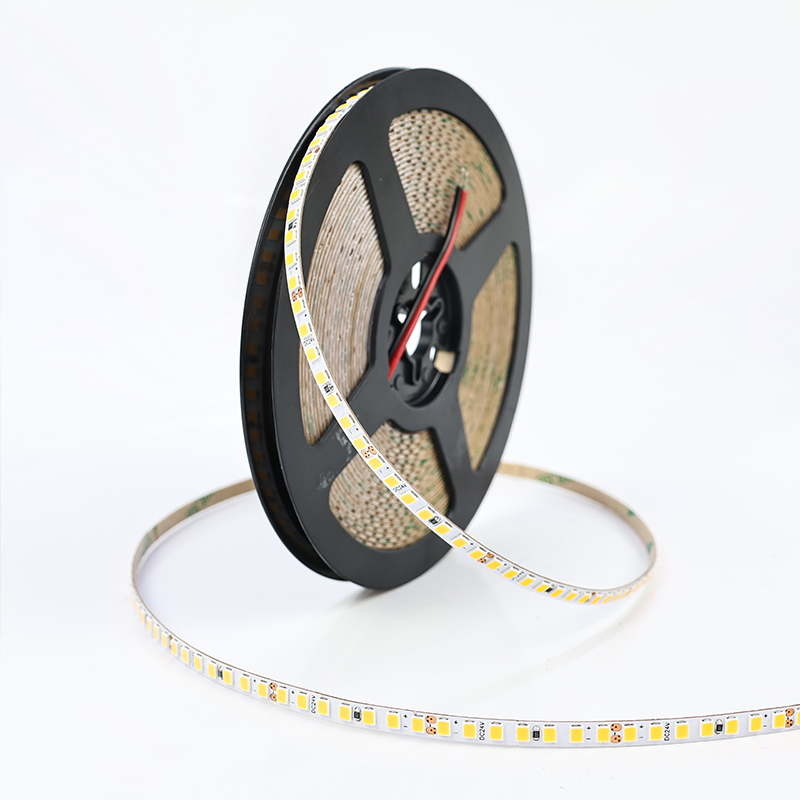

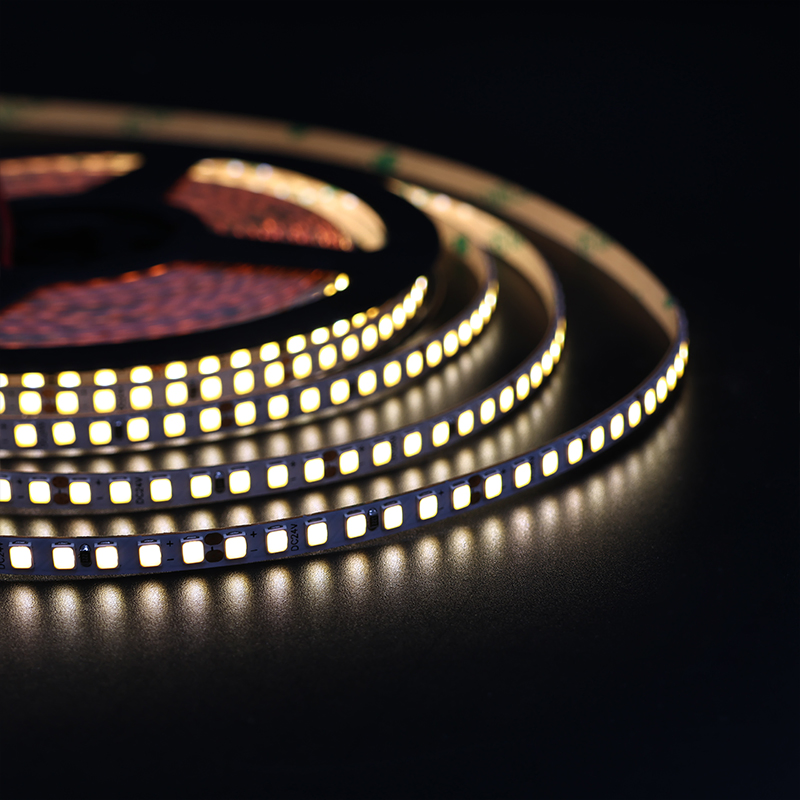

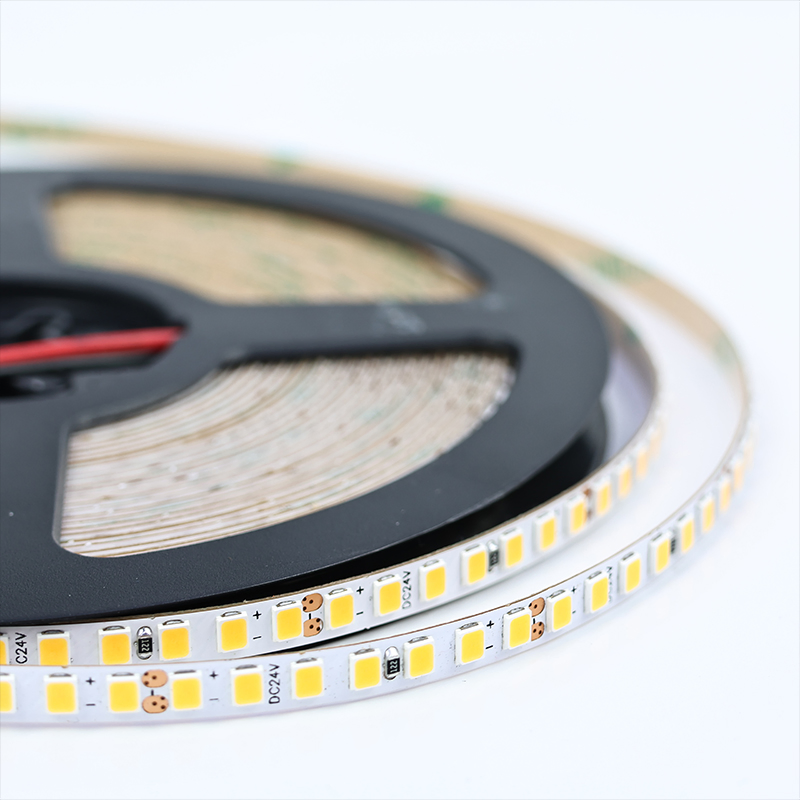

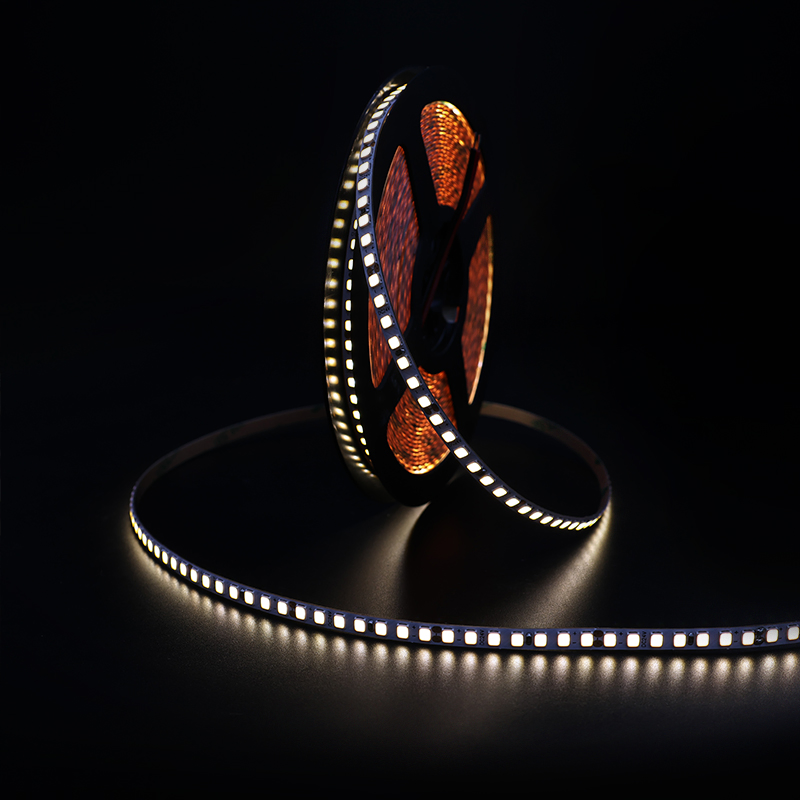

High Brightness 2835 196LEDs 6W/M Flexible LED Strips
High Brightness 2835 196LEDs 6W/M Flexible LED Strips
High Brightness 2835 196LEDs 6W/M Flexible LED Strips
High Brightness 2835 196LEDs 6W/M Flexible LED Strips
High Brightness 2835 196LEDs 6W/M Flexible LED Strips
1 / 5
High Brightness 2835 196LEDs 6W/M Flexible LED Strips
High Brightness 2835 196LEDs 6W/M Flexible LED Strips
High Brightness 2835 196LEDs 6W/M Flexible LED Strips
High Brightness 2835 196LEDs 6W/M Flexible LED Strips
High Brightness 2835 196LEDs 6W/M Flexible LED Strips

High Brightness 2835 196LEDs 6W/M Flexible LED Strips

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO. HSY-FS2835G196W*C*W*V24-P20 Emitting Color Warm White/Nature White/Cool White, R/G/B/O/Y/P
Voltage 12V / 24V DC IP Rating IP20/ IP65/ IP67/ IP68 Optional
Size (L*W*D) 5000*4*1.8mm Type Flexible LED Stripe LED Rope Light Waterproof
LED Source Quality SMD2835 Power Consumption 8W/M
Working Life >50,000 hours Warranty 3-5 Years
Product Description

High Lumen 2835 196LEDs/m White Flexible LED Strip Light

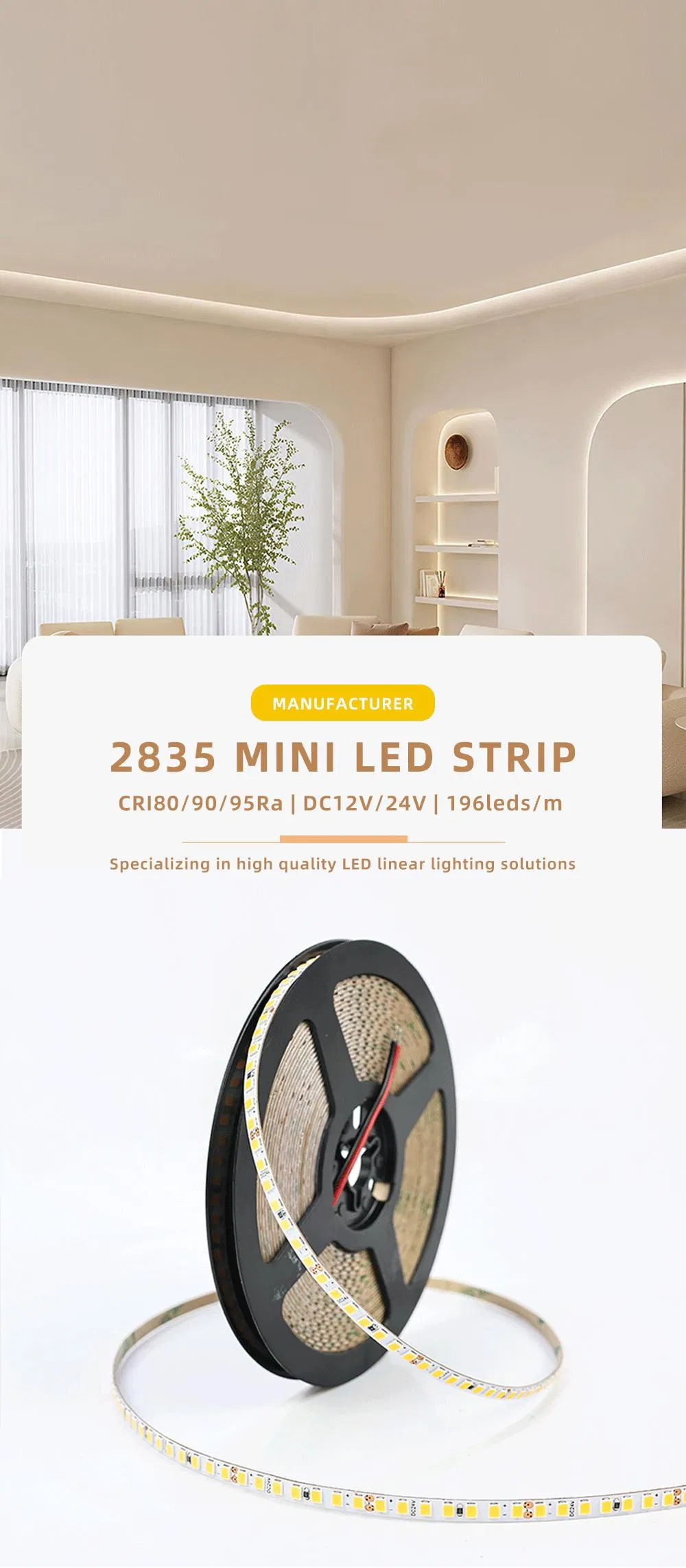

Product Layout
Product Parameters
LED Quantity196LEDs/m 2835
Color Temperature2000K to 12000K Optional
CRI(RA>)CRI>80 (CRI >90 / CRI >95 optional)
PCB Materials2Oz Double-Sided pure copper Circuit Board
LED Material99.99% pure gold wire, red copper pad
Luminous (lm)24-26lm/LED (1800-2400lm/m)
Adhesive TapeOriginal 300LSE 3M tape
Our Advantages
1
Certified Safety: TUV CE, FCC, RoHS, IEC/EN62471 certificates.
2
Superior Quality: High CRI >95Ra, super brightness, ideal for restaurants and supermarkets.
3
Consistency: Large stock materials to maintain consistent color temperature and PCB quality.
4
Efficiency: Quick delivery time within 3-5 working days.
Quality Standards
Key Features
  • LED source: 24-26lm/LED high brightness with low decline.
  • Modular design: Every 3LEDs or 6LEDs work independently.
  • Customization: Supports customized length and FPC sizes.
  • Dimming: Compatible with manual or IR dimmers.
  • Durability: Over 50,000 hours lifespan with 3 years warranty.
  • Safety: 100% aging line test before packing.
Model LED qty Output Power PCB Width
TLV-FS2835Q30W30LEDs/m12/24V DC6W8mm /10mm
TLV-FS2835Q60W60LEDs/m12/24V DC12W8mm /10mm
TLV-FS2835Q120W120LEDs/m12/24V DC16W8mm /10mm
TLV-FS2835Q240W240LEDs/m24V DC20W10mm

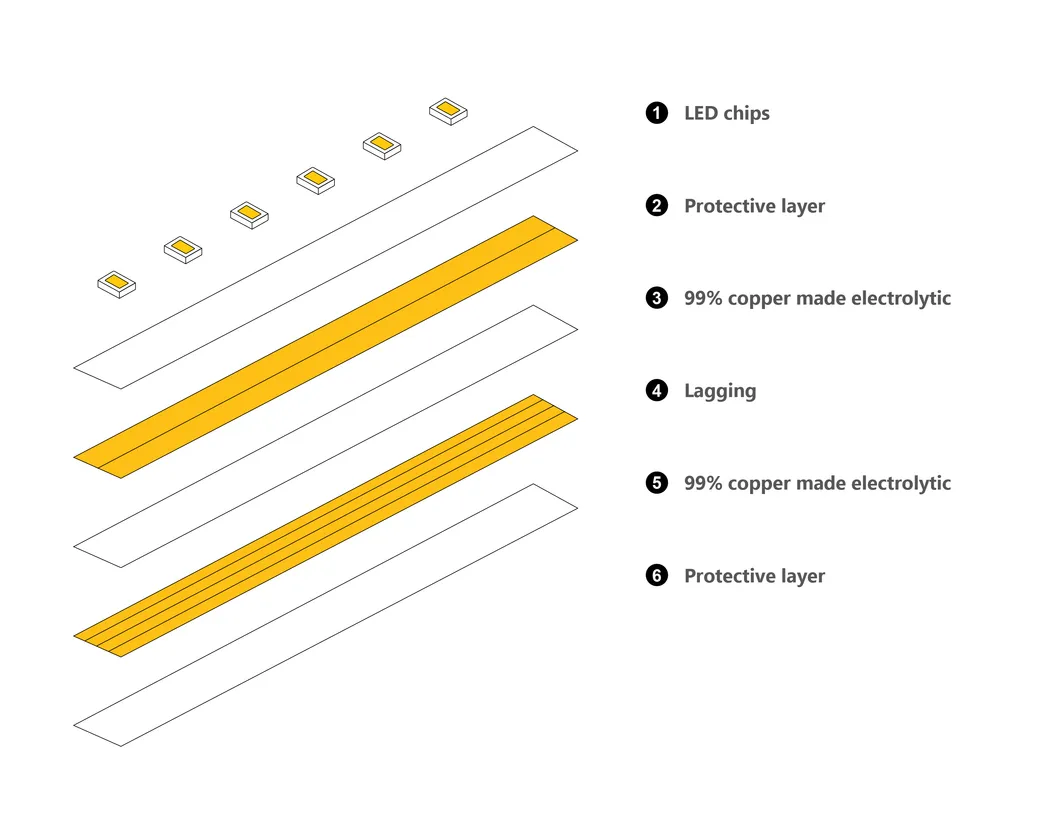

Visual Specs

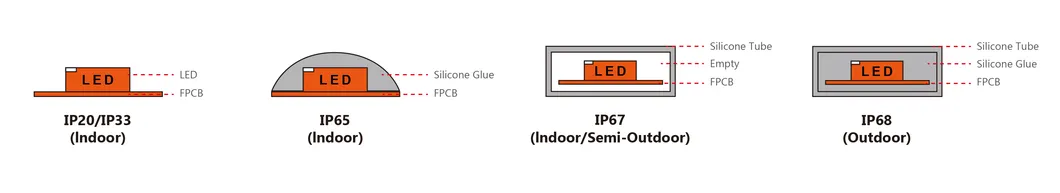

IP Ratings Explained

IP20: Bare Board, indoor use only.

IP65: Silicone dropper, suitable for damp locations like kitchens/bathrooms.

IP67: Silicone tube protection, indoor and outdoor use.

IP68: Silicone tube with filling, suitable for underwater use.

IP Rating 1

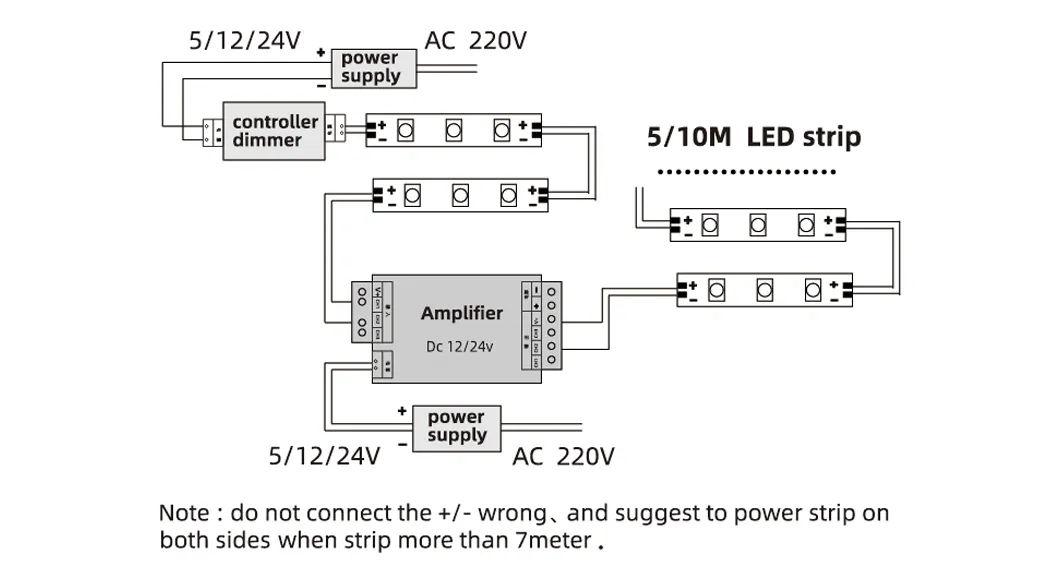

IP Rating 2

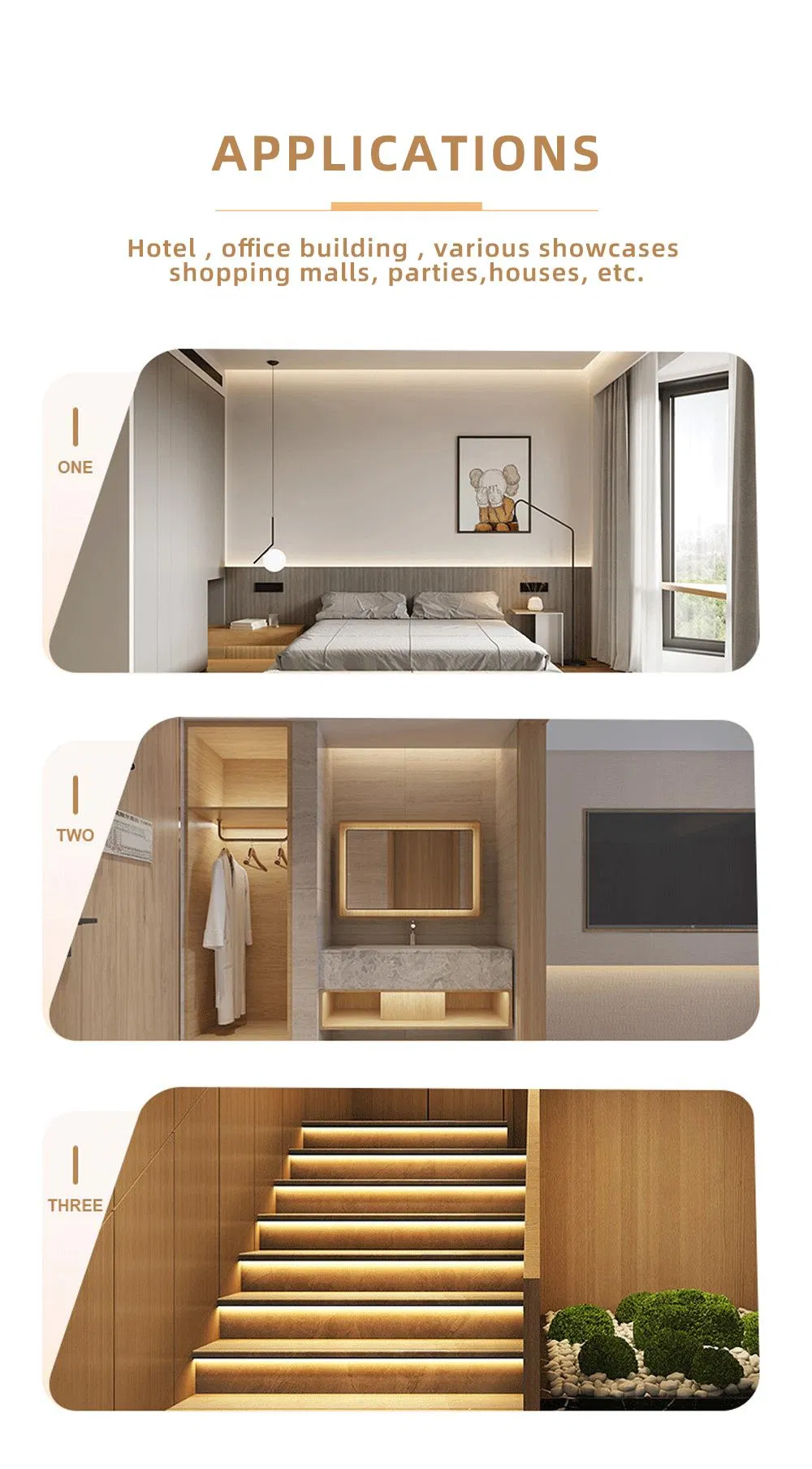

Applications
  • Hospitality: Hotel, Bar, Stage, KTV, Restaurant decoration.
  • Commercial: Shopping centers, Stores, Ad Signs, Corridors.
  • Residential: Kitchen, House decoration, Residential buildings.
  • Institutional: Hospitals, Museums, Schools.
Applications View
Packaging & Shipping

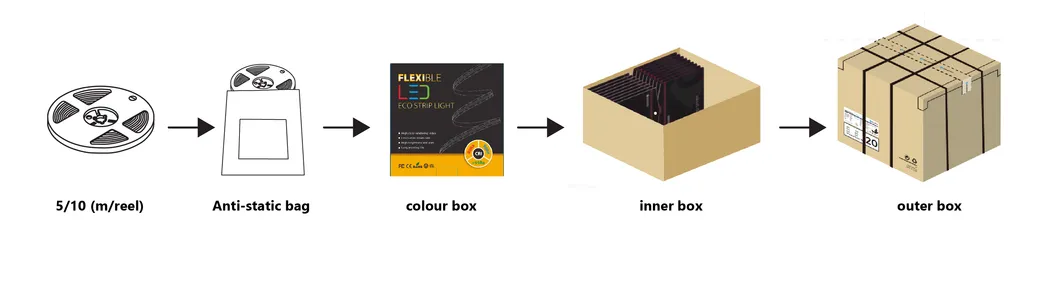

1. Packaging: 5 meters/roll, box packing (132x132x15mm), 100 rolls per carton.

2. Delivery: Normally 3-5 working days for orders under 2000m.

3. Shipping: Global delivery via Express (DHL, FedEx, UPS), Air, or Sea.

Packaging 1
Packaging 2
Production Environment

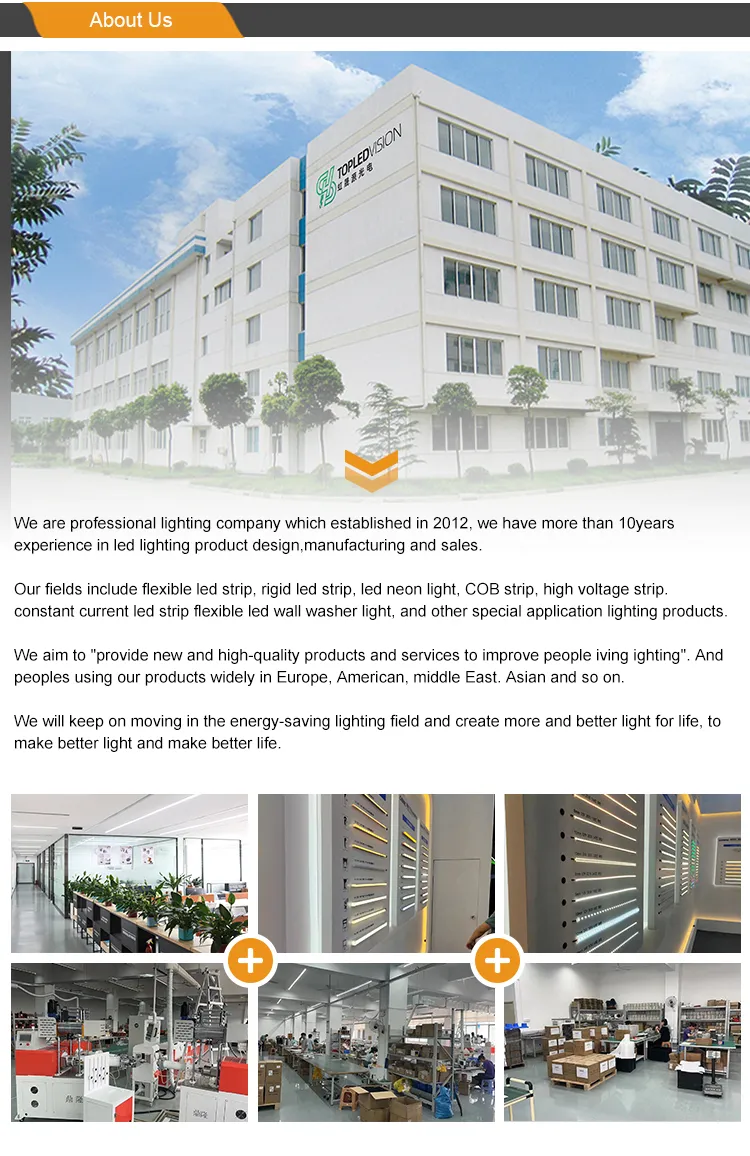

Factory 1

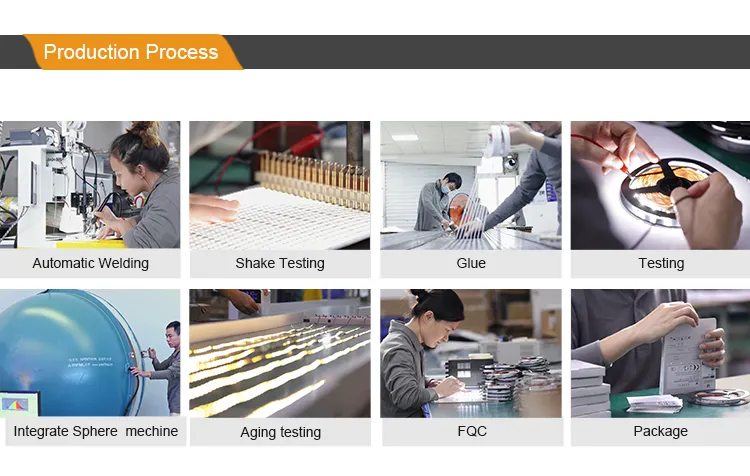

Factory 2
Factory 3
Factory 4
Frequently Asked Questions
Q1: Do you provide free samples? A1: Yes, we can offer free samples, excluding the shipping cost.
Q2: What is your minimum order quantity (MOQ)? A2: Usually the MOQ is 50m, but we also accept small orders for trial testing.
Q3: What is the estimated delivery time? A3: Samples can be prepared within 3-5 days. Bulk orders typically take 7-10 working days depending on the quantity.
Q4: What payment terms do you accept? A4: We accept T/T, PayPal, Western Union, and Cash.
Q5: Do you offer OEM or customized services? A5: Yes, we offer full OEM services including logo printing on products, customized packaging, and tailor-made specifications.
Q6: What shipping methods are available? A6: We typically assist with shipping via Express, Air, or Sea transportation based on your requirements.
