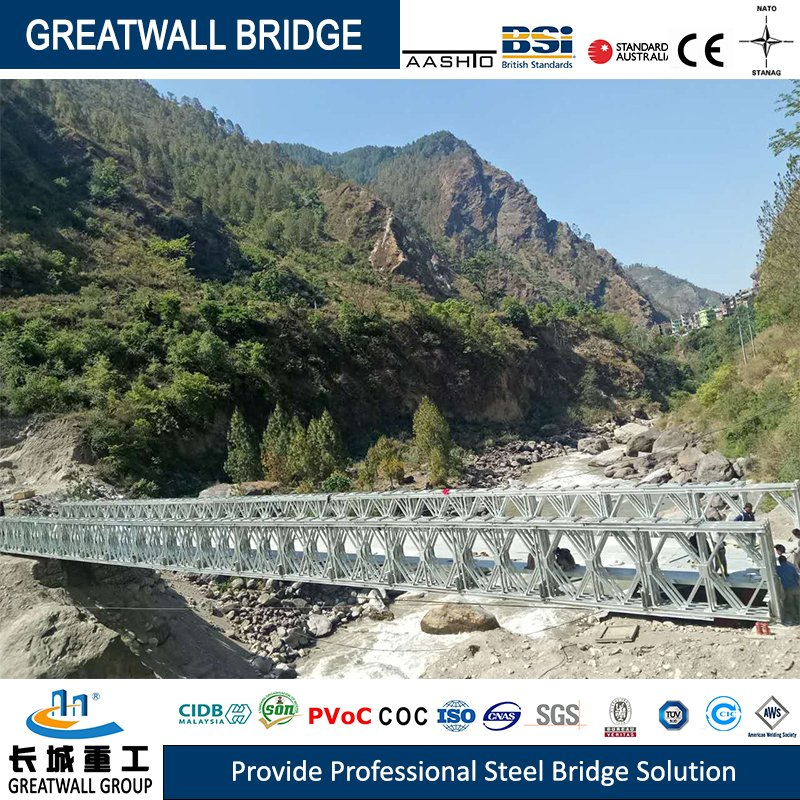

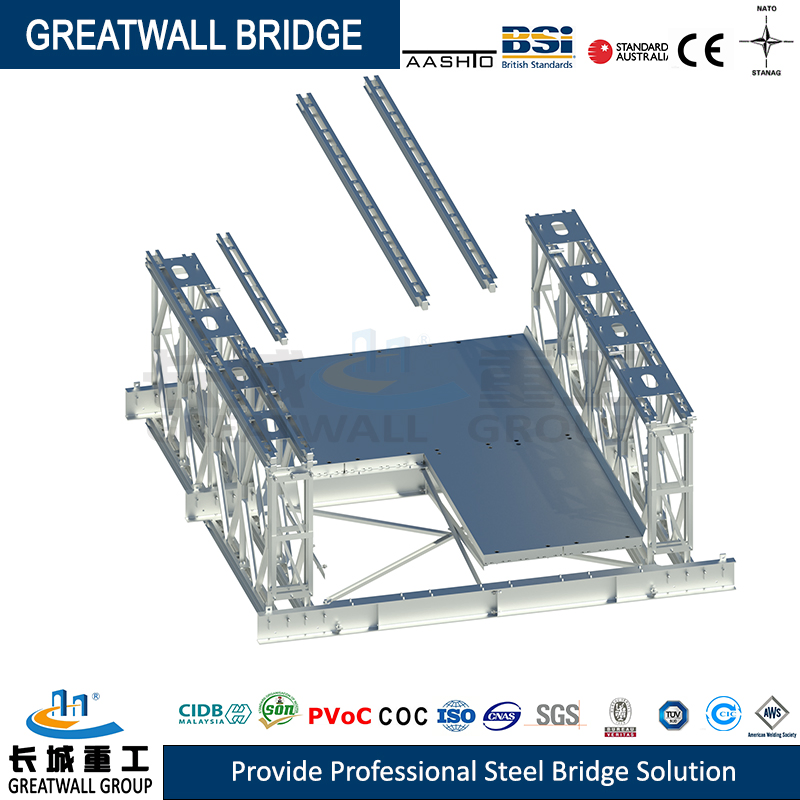

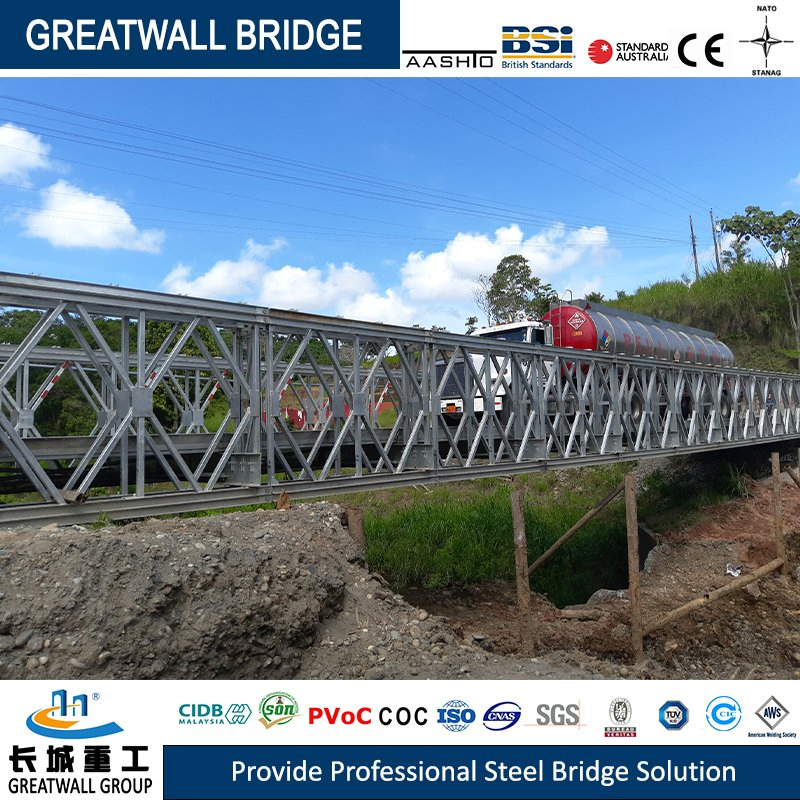

| Model NO. | HD200/CB200/ZB200/Compact-200 | Steel Grade | S355/ S460/Gr 55c/Gr350/Gr50/Gr65/GB355/460 |
|---|---|---|---|
| Loading Capacity | Hl93/Ha+20hb/T44/Class a/B/MLC110/dB24 | Carriage Way Width | 3.15m Std. /4.2m Ew/7.35m Double Lanes |
| Maximum Span | 60.96m for Single Lane/45.72m for Two Lanes | Hot DIP Galvanized | ISO1461/AS/NZS 4680/ASTM-A123/BS1706 |
| HS Code | 7308100000 | Production Capacity | 100,000 Tons |

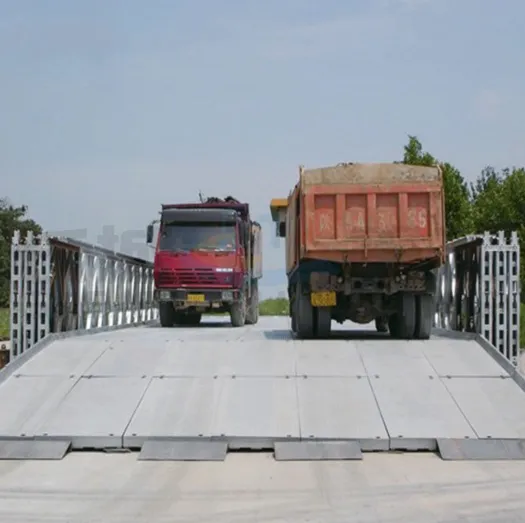

The surface disposal is painting, galvanized or anti-skid wearing such as a polyurethane bonded bauxite chip system. It is suitable for the load designs of HS-15, HS-20, HS-25, HL-93 and pedrail-50 etc.

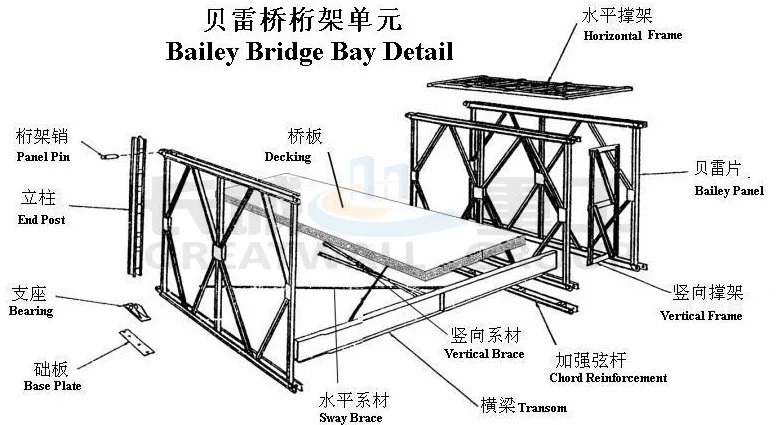

Compact-100 Bailey Bridge Truss Allowable Internal Force Table
| Bridge Type | Unreinforced Bridge | Reinforce Bridge | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Type | SS | DS | TS | DD | TD | SS | DS | TS | DD | TD |
| Moment [M] (kN·m) | 788.2 | 1576.4 | 2246.4 | 3265.4 | 4653.2 | 1687.5 | 3375 | 4809.4 | 6750 | 9618.8 |
| Shear force [Q] (kN) | 245.2 | 490.5 | 698.9 | 490.5 | 698.9 | 245.2 | 490.5 | 698.9 | 490.5 | 698.9 |
Compact-200 Bailey bridge Truss Allowable Internal Force (Half-bridge)

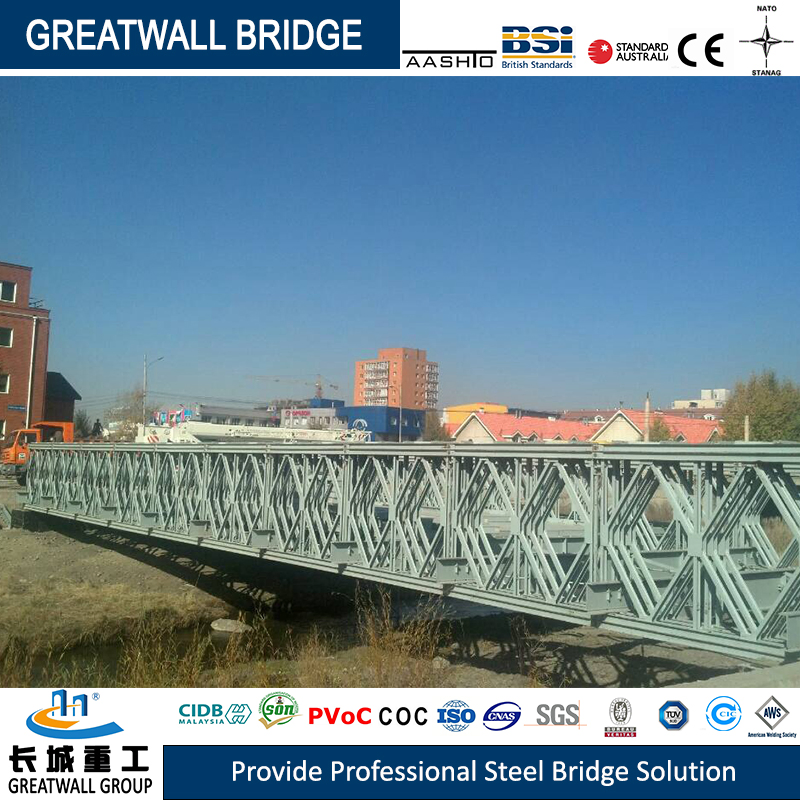

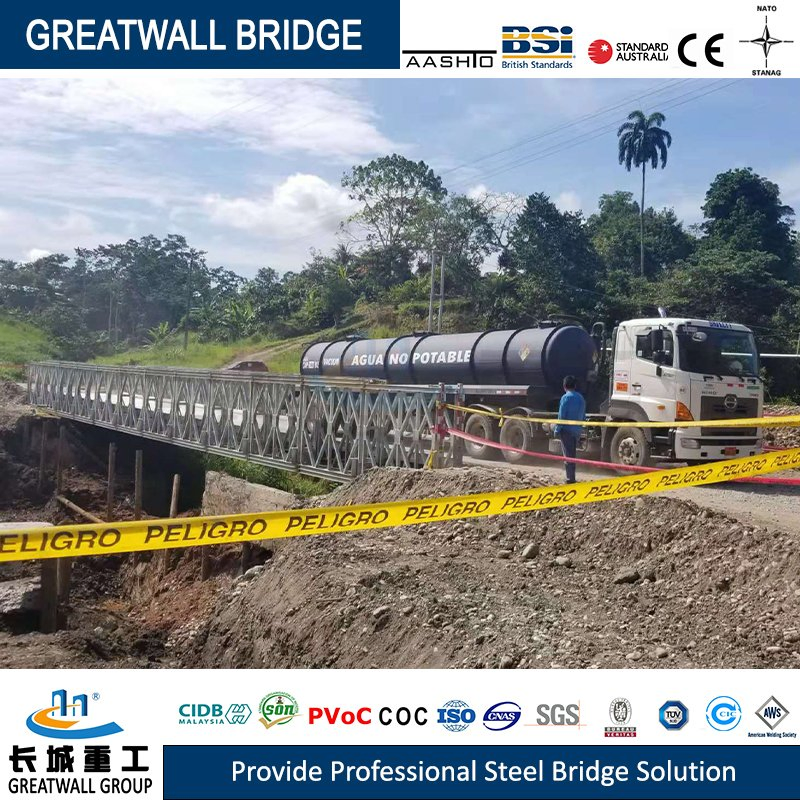

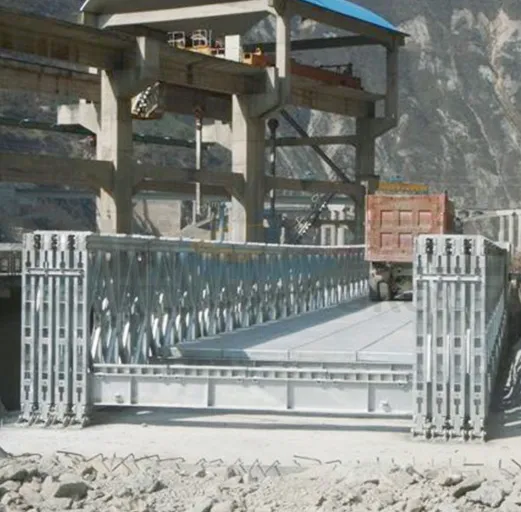

| Configuration | Type | Bending Moment [M] (kN·m) | Shear force [Q] (kN) | High-shears [Q]H (kN) |
|---|---|---|---|---|
| SS | SS / SSR | 1127 / 2254 | 257 | 348 |
| DS | DS / DSR1 / DSR2 | 2525 / 3381 / 5050 | 514 | 696 |
| TS | TS / TSR2 / TSR3 | 3800 / 5635 / 7600 | 771 | 1044 |
| QS | QS / QSR3 / QSR4 | 5050 / 7889 / 10100 | 1028 | 1392 |
| Bridge Models | Compact-200, Compact-100, LSB, PB100, China-321, BSB, Modular, Truss, Arch, Suspension, Floating, etc. |
|---|---|
| Design Spans | 10M TO 300M Single span |
| Carriage Way | Single Lane, Double Lanes, Multilane, Walkway, etc. |
| International Standards | AASHTO HL93, HS20-44, BS5400 HA+20HB, AS5100, IRC 70R, NATO STANAG MLC80/110. |
| Steel Grades | EN10025 S355, EN10219 S460, AS/NZS3678 Grade 350, ASTM A572 GR50/GR65. |
| Galvanization | ISO1461, AS/NZS 4680, ASTM-A123, BS1706. |
