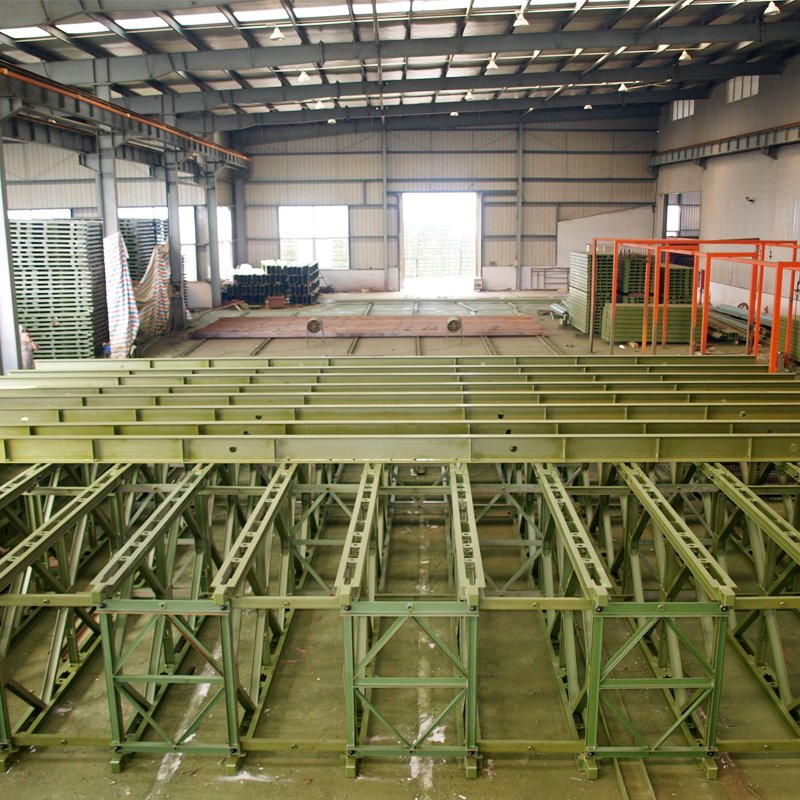

Made in China Price Steel Bailey Suspension Bridge Prefabricated Modern Design

Customization: Available
After-sales Service: Installation Instructions
Warranty: Life Time

Product Description

Basic Information
Model NO.
ZB200
Certification
GB, ASTM, ISO9001:2015
Life
Semi-Permanent Bridge
Usage
Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Highway Bridge
Material
Steel Bridge
Stress Characteristics
Beam Bridge
Across Way
Open Bridge
Scale
Middle Bridge
Product Description
Steel Bailey Bridge Design

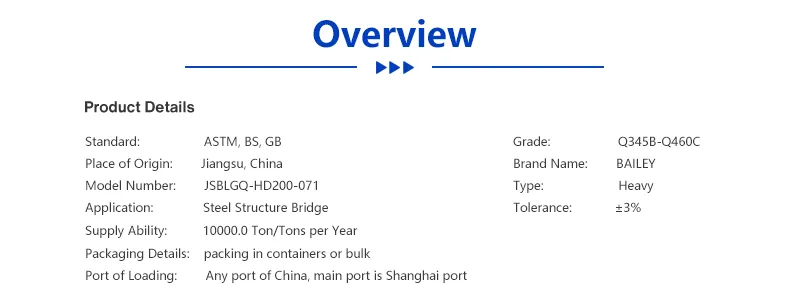

Prefabricated Bridge Structure

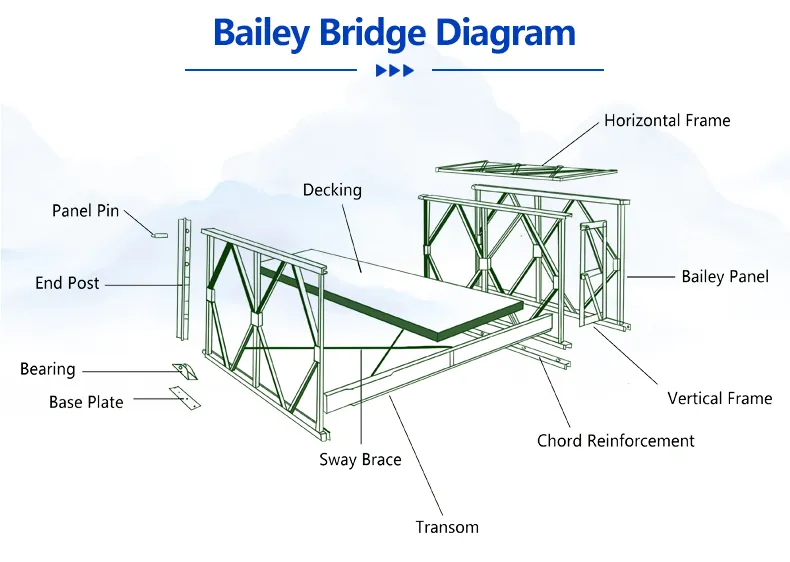

Bailey Bridge Installation
Technical Specifications (ZB200 Truss Press)
Internal Force Not Reinforced Model Reinforced Model
SSDSTSQS SSRDSRTSRQSR
Standard Truss Moment (kN.m) 1034.32027.22978.83930.3 2165.44244.26236.48228.6
Standard Truss Shear (kN) 222.1435.3639.6843.9 222.1435.3639.6843.9
Geometric Characteristics (Half Bridge)
Structure Chord Area (cm²) Section Properties (cm³) Moment of Inertia (cm⁴)
SS25.485437580174
SSR50.96108751160348
DS50.96108751160348
DSR2101.92217502320696
Visual Showcase

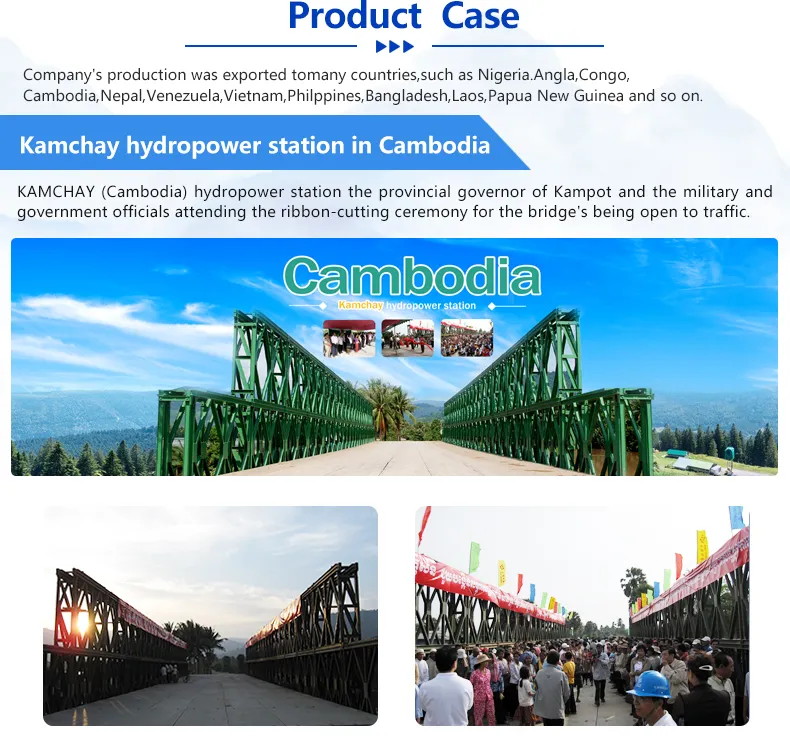

Steel Bridge Component 1

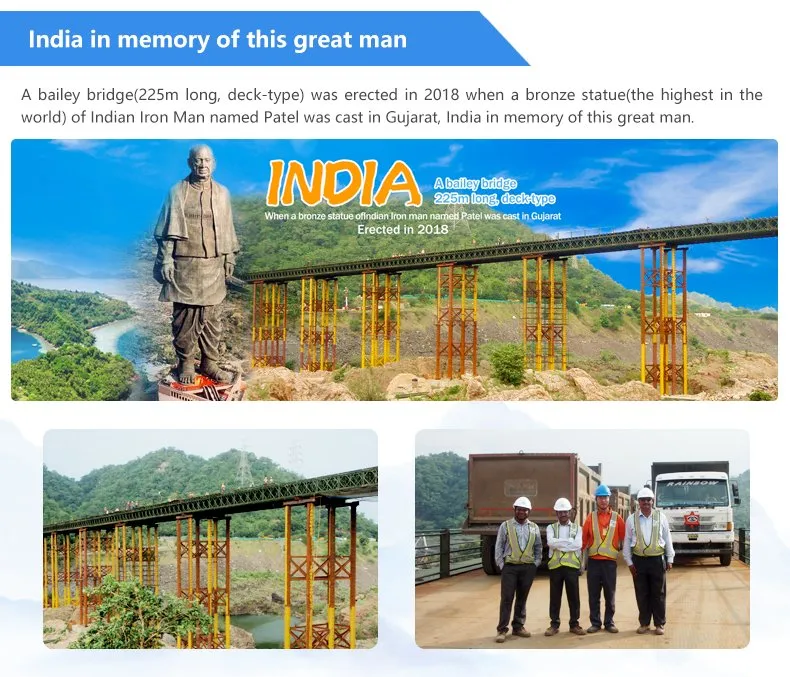

Steel Bridge Component 2

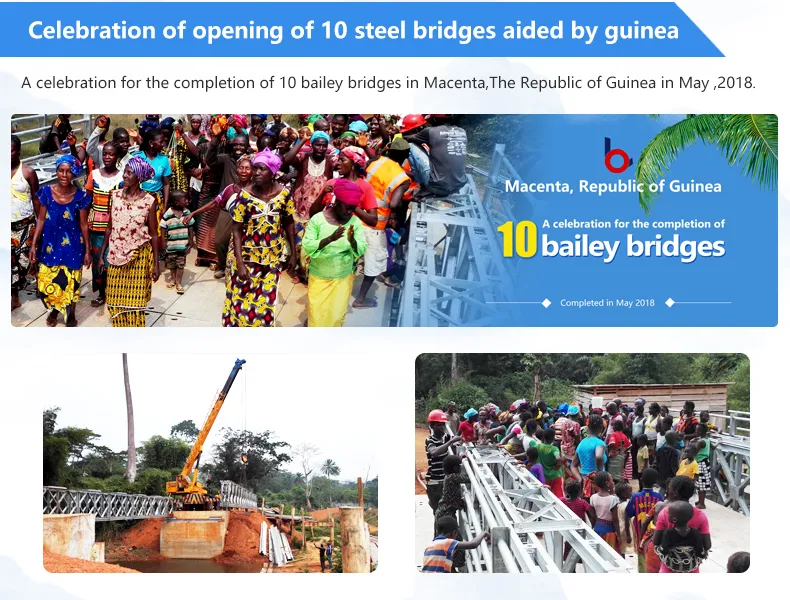

Steel Bridge Component 3

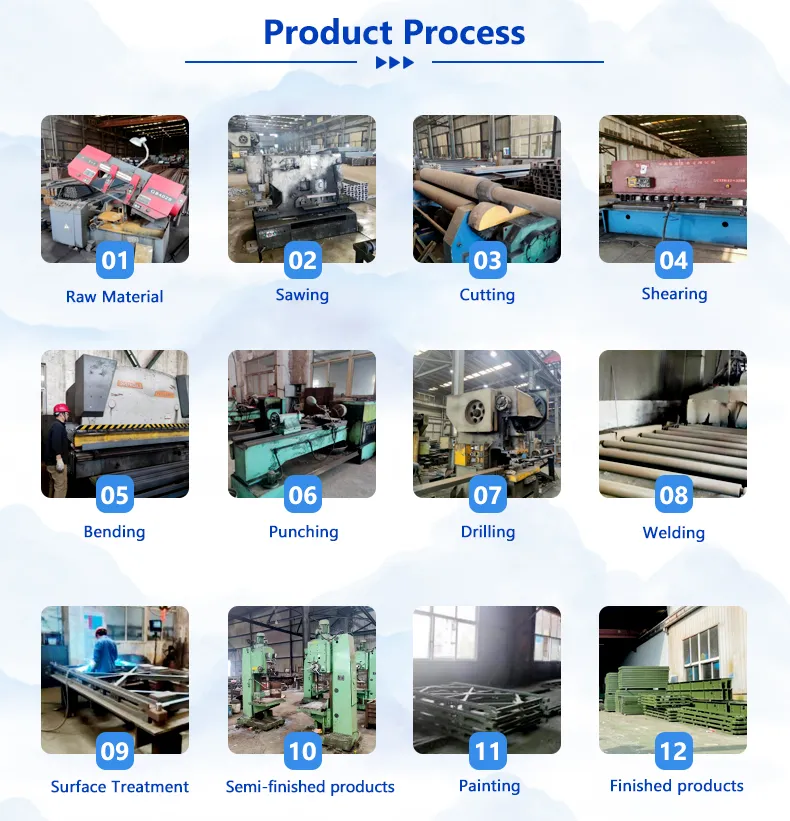

Steel Bridge Component 4
Steel Bridge Component 5
Steel Bridge Component 6
Service Flow
01
Professional advice and explicit explanation provided by expert customer service.
02
Close coordination with excellent engineers to meet your exact project requirements.
03
Detailed technical guidance on how to use and install the bridge products.
04
Thorough inspection of bridge products to solve any issues during the process.
05
Follow-up services via online platforms to ensure total satisfaction.
Frequently Asked Questions
What kind of manufacturer are you?
We are a specialized steel bailey bridge manufacturer with over 20 years of experience, holding international Quality System Certification of ISO9001:2015.
Do you have your own production facilities?
Yes, we operate a factory with six production lines and various specialized machines for fabricating steel bridge parts and structures.
What quality standards do your bridges meet?
Our products meet CMA, CNAS, ISO9001, Grade I road, Grade A urban road, American loading standard HS25, and British loading standard HA.
Which global markets have you served?
We have successfully exported to many countries including Nigeria, Angola, Cambodia, Nepal, Venezuela, Vietnam, Bangladesh, and Colombia.
What is the standard loading port for shipping?
While we can use any port in China, our primary loading port is Shanghai port.
What is the expected lifespan of a ZB200 bridge?
The ZB200 is designed as a semi-permanent bridge structure, suitable for high-durability highway and public use.
