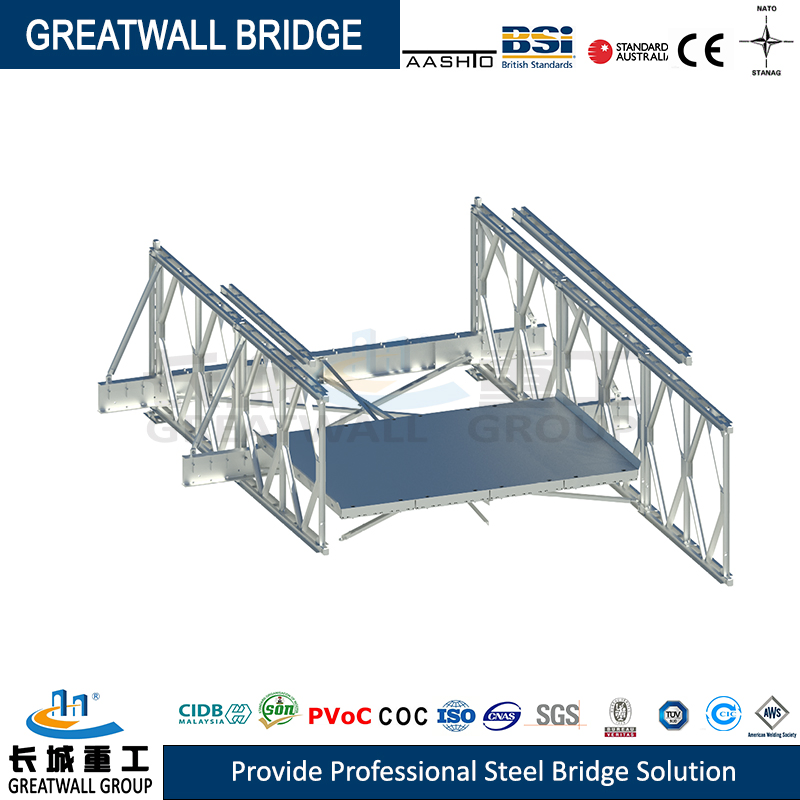

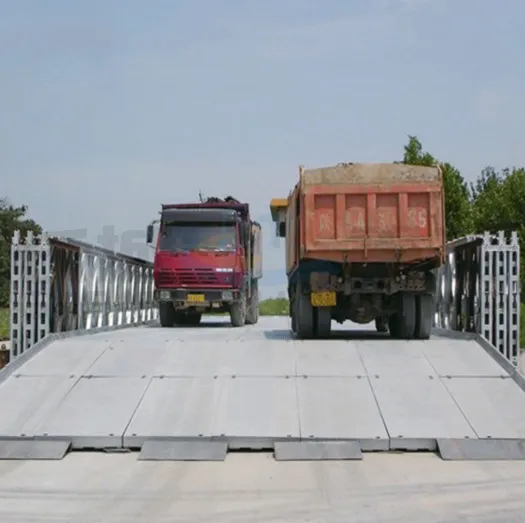

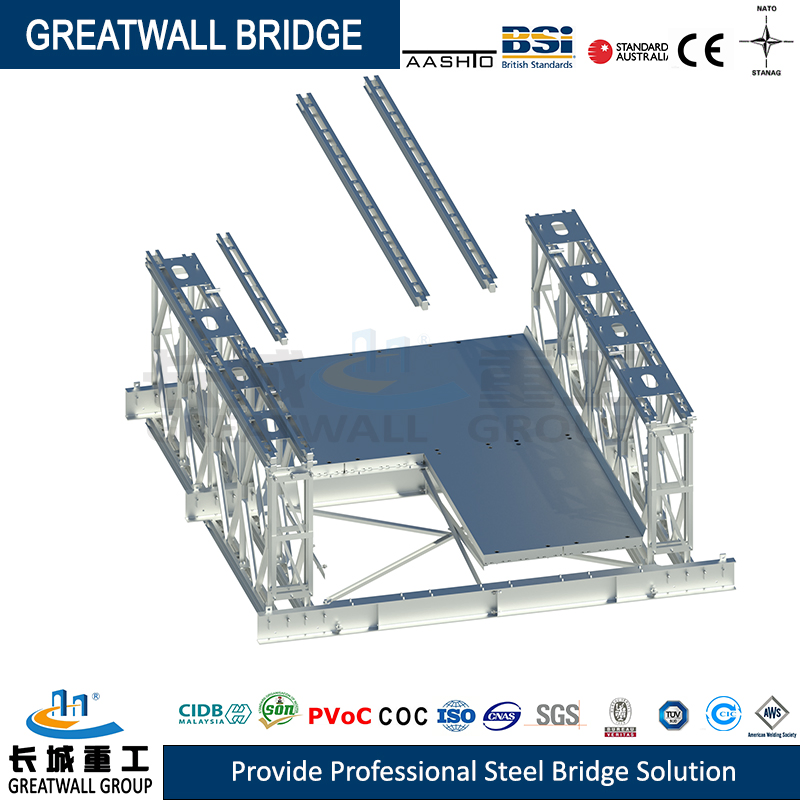

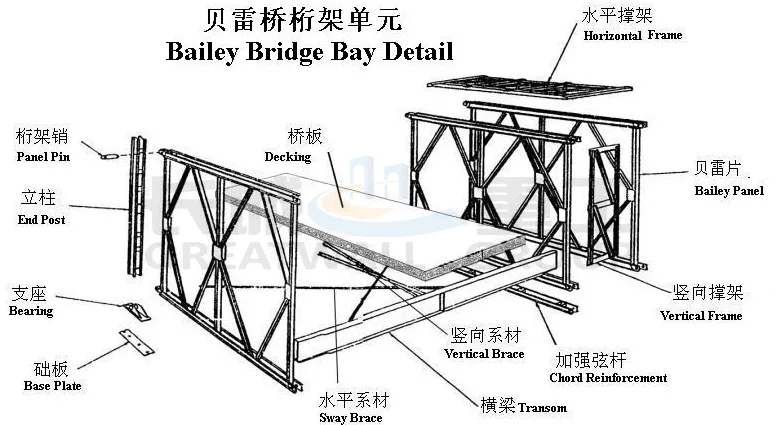

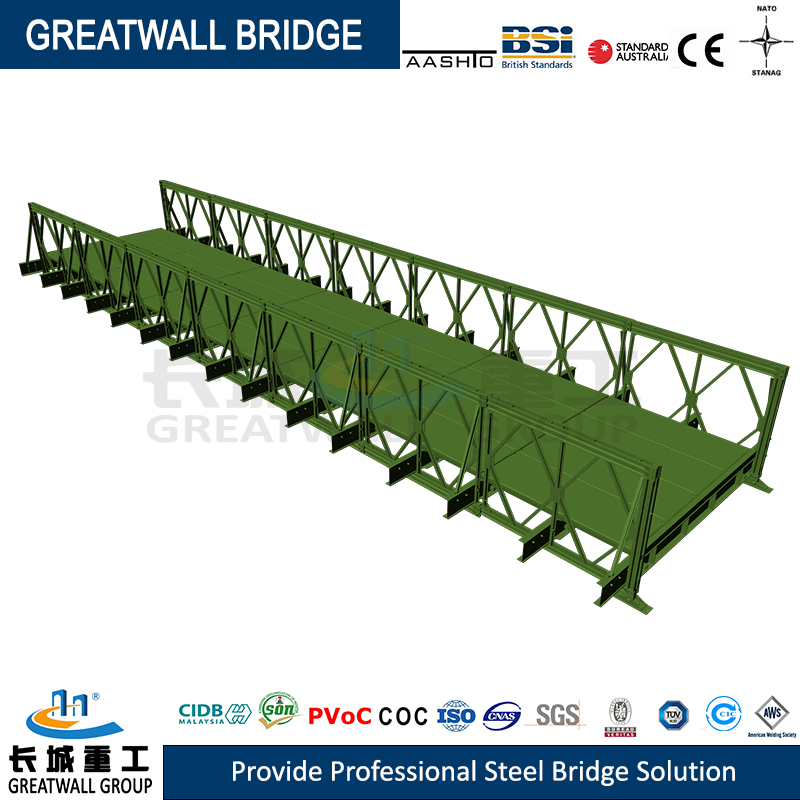

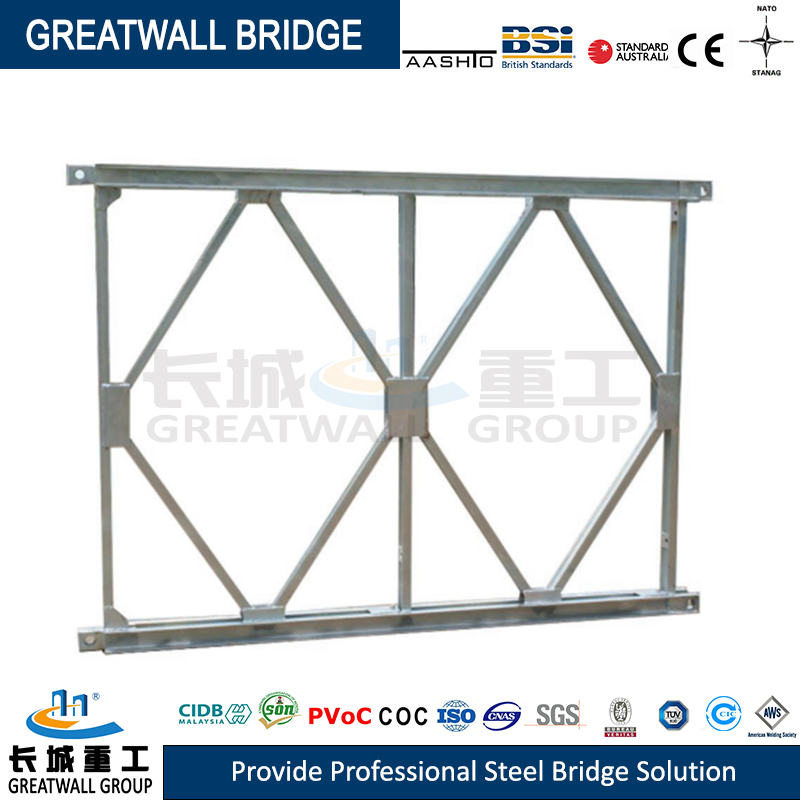

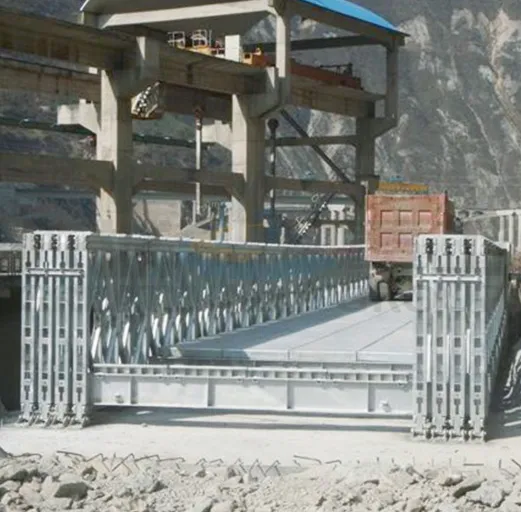

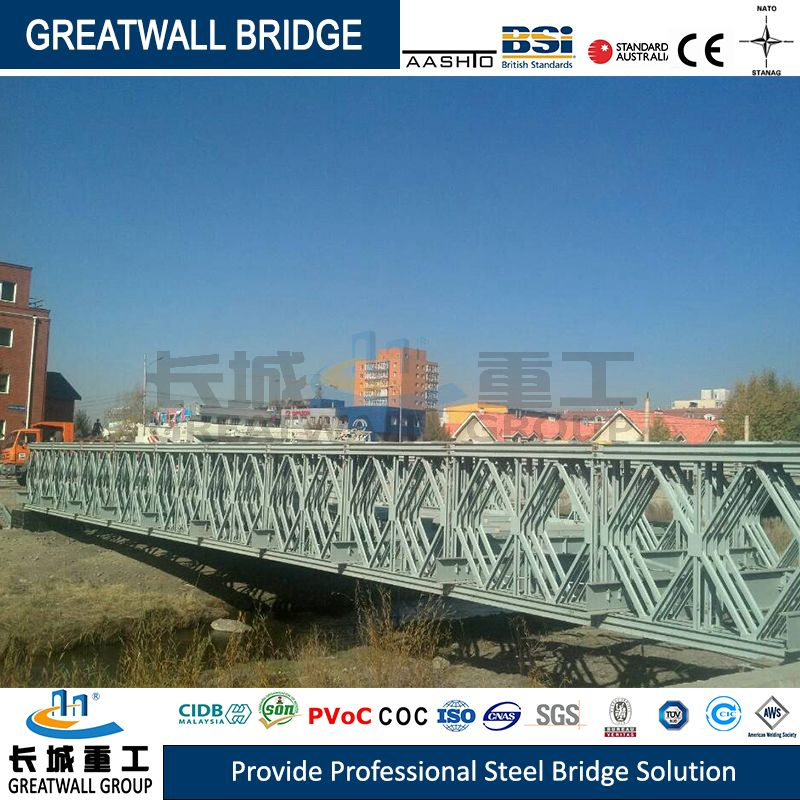

The Bailey bridge is a type of portable, pre-fabricated, truss bridge. It was developed for emergency use and provides standard bridge equipment adopted extensively worldwide. It features a simple structure, convenient transport, speedy erection, and easy disassembling.
Our production lines manufacture Compact-100 and Compact-200 models. Surface disposal options include painting, galvanizing, or anti-skid polyurethane bonded bauxite systems. Suitable for load designs such as HS-15, HS-20, HS-25, HL-93, and pedrail-50.
Compact-100 Bailey Bridge Truss Allowable Internal Force
| Bridge Type | Unreinforced Bridge | Reinforced Bridge | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Force Type | SS | DS | TS | DD | TD | SS | DS | TS | DD | TD |
| Bending [M] (kN·m) | 788.2 | 1576.4 | 2246.4 | 3265.4 | 4653.2 | 1687.5 | 3375 | 4809.4 | 6750 | 9618.8 |
| Shear [Q] (kN) | 245.2 | 490.5 | 698.9 | 490.5 | 698.9 | 245.2 | 490.5 | 698.9 | 490.5 | 698.9 |
Steel Bridge General Specifications
| Bridge Types | Bailey bridge (Compact-200, Compact-100, LSB, PB100), Modular bridge, Truss Bridge, Arch bridge, Suspension bridge, Floating bridge. |
|---|---|
| Design Spans | 10m to 300m Single span |
| Loading Capacity | AASHTO HL93, HS20-44, BS5400 HA+HB, AS5100, NATO STANAG MLC80/110, etc. |
| Steel Grade | EN10025 S355, S460; ASTM A572 GR50/GR65; GB1591 Q355B/C/D. |
| Galvanization | ISO1461, AS/NZS 4680, ASTM-A123. |
