Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Highway Bridge
Scale
Middle Bridge
Stress Characteristics
Beam Bridge
Material
Steel Bridge
Product Name
200 Style Treastle Bailey Bridge
MOQ
1 PC
Supply Ability
10000 Ton/Tons Per Year
Packaging & Delivery
Package Size
3042.00cm * 2134.00cm * 176.00cm
Gross Weight
308.000kg
Packing
40' Standard Hq Containers
Product Description
ZB200 Truss Press Limited Table
Internal Force
Not Reinforced Model
Reinforced Model
SS
DS
TS
QS
SSR
DSR
TSR
QSR
Standard Moment(kN.m)
1034.3
2027.2
2978.8
3930.3
2165.4
4244.2
6236.4
8228.6
Standard Shear (kN)
222.1
435.3
639.6
843.9
222.1
435.3
639.6
843.9
ZB200 Geometric Characteristics (Half Bridge)
Structure
Type
Chord Area(cm2)
Section Properties(cm3)
Inertia Moment(cm4)
SS
SS
25.48
5437
580174
SSR
50.96
10875
1160348
DS
DS
50.96
10875
1160348
DSR1
76.44
16312
1740522
DSR2
101.92
21750
2320696
Professional Service Flow
1
Professional advice and explicit explanations provided by representatives.
2
Close coordination with excellent engineers to meet your exact requirements.
3
Detailed guidance on product usage and necessary technical services.
4
Thorough inspection of bridge products and immediate problem-solving.
5
Feedback integrated into the centralized service management system.
6
Continuous follow-up via online platforms to ensure total satisfaction.
Frequently Asked Questions
What kind of manufacturer are you?
We are a specialized steel bailey bridge manufacturer with leading processes in China, engaged in this field for over 20 years with ISO9001:2015 certification.
Do you have independent production capabilities?
Yes, we operate six production lines and various machines to fabricate steel bridge parts and structures, holding a full global exporting license.
What quality standards do your bridges meet?
Our products meet CMA, CNAS, ISO9001, Grade I road, Grade A urban road standards, as well as American HS25 and British HA loading standards.
What are the primary applications for the ZB200 bridge?
It is widely used for over-water bridges, tractor bridges, pontoons, footbridges, and highway bridges for both public and industrial purposes.

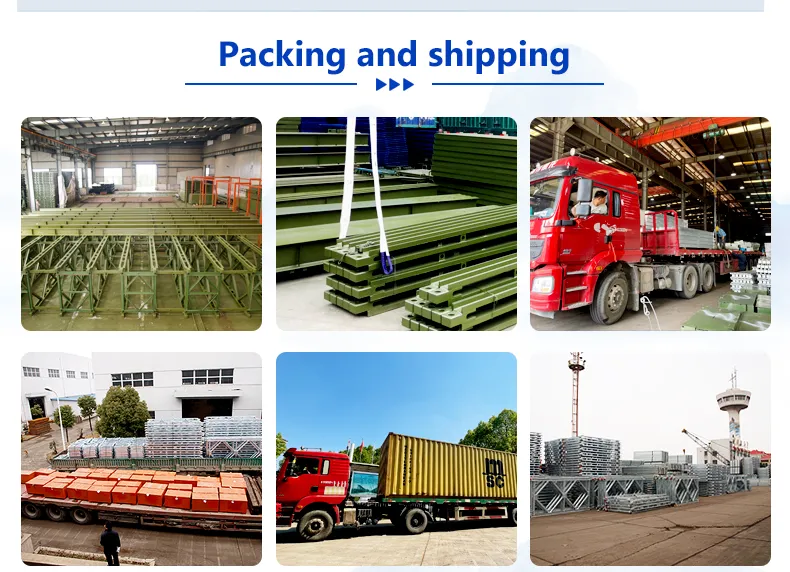

How is the bridge typically transported?
The components are generally packed in 40' Standard HQ containers and shipped "naked" to maximize space and efficiency.
What materials and certifications are used?
The bridges are constructed from high-quality steel and carry certifications such as GB and ASTM, ensuring semi-permanent durability.
