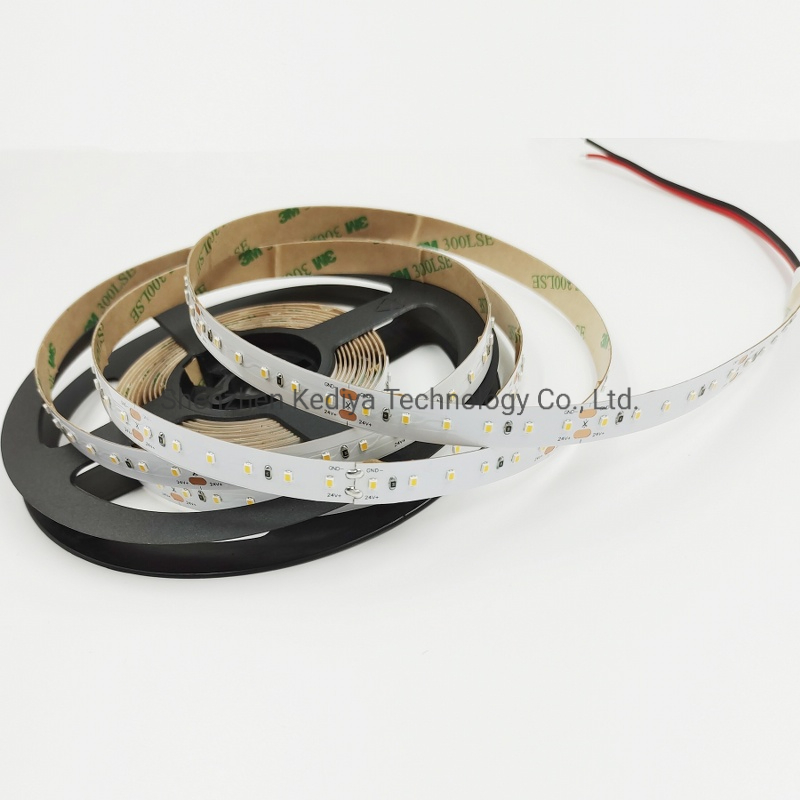

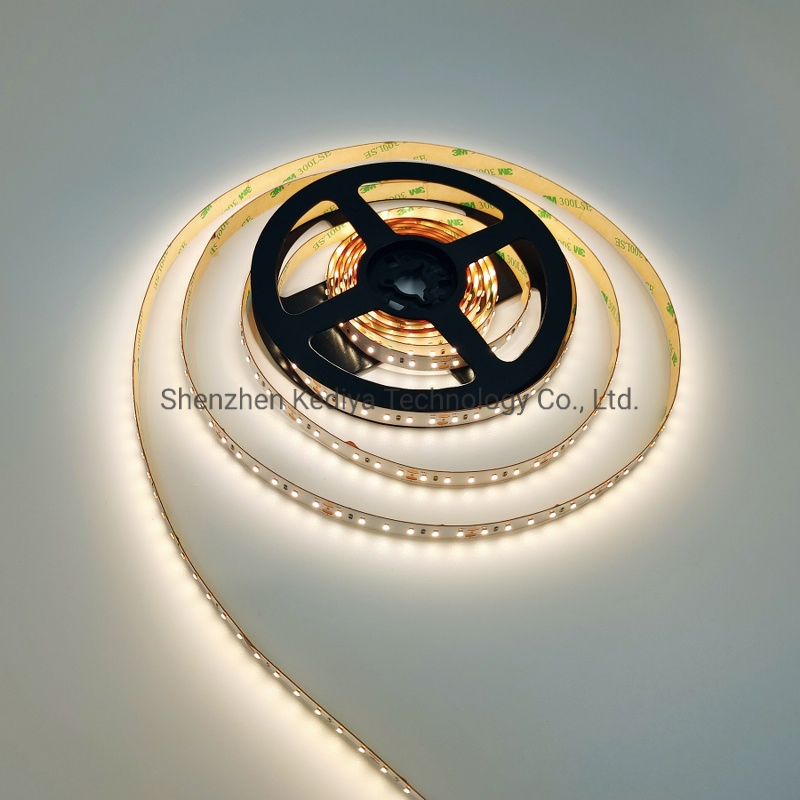

SMD2216 Flexible Rope Light DC24V LED Strip with EMC CE, RoHS

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
K-F2216-120L24WW
Emitting Color
1800-6500K
Voltage
12V/24V DC
IP Rating
IP20/IP65/IP67/IP68
Product Name
SMD 2216 LED Light Strip
LED Source
SMD 2216 (Epistar/Sanan/CREE)
PCB Width
10mm (Double-Sided Copper)
CRI
>90 (CRI95-97 Optional)

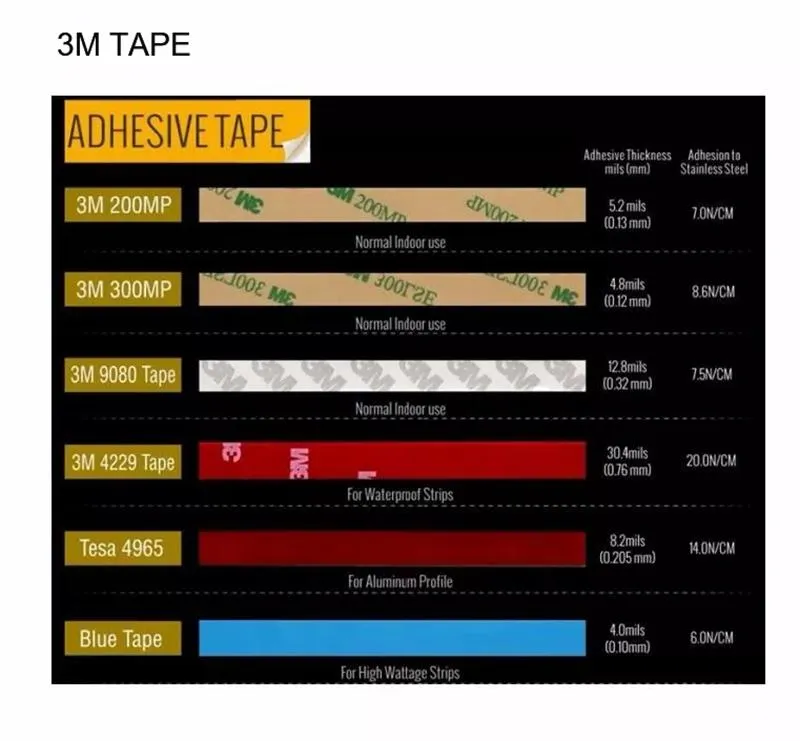

Adhesive Tape
Original 300LSE 3M Tape
Warranty
3 Years
Product Description

SMD2216 Flexible Rope Light DC24V LED Strip

2216 SMD is a ultra-slim package that performs significantly better than the traditional 3528 SMD:

  • Perfect for low-profile applications: Delivers a smooth light beam without visible LED dots.
  • Superior Color Rendering: Standard CRI90-95, with CRI95-97 options available.
  • Enhanced Efficiency: Same lumen output as 3528 but with higher color accuracy.
  • Cost-Effective: Lower cost than many CRI80/90 strips (5050, 2835, etc.).
  • Better Heat Management: Larger dissipation pads ensure longer life and stability.

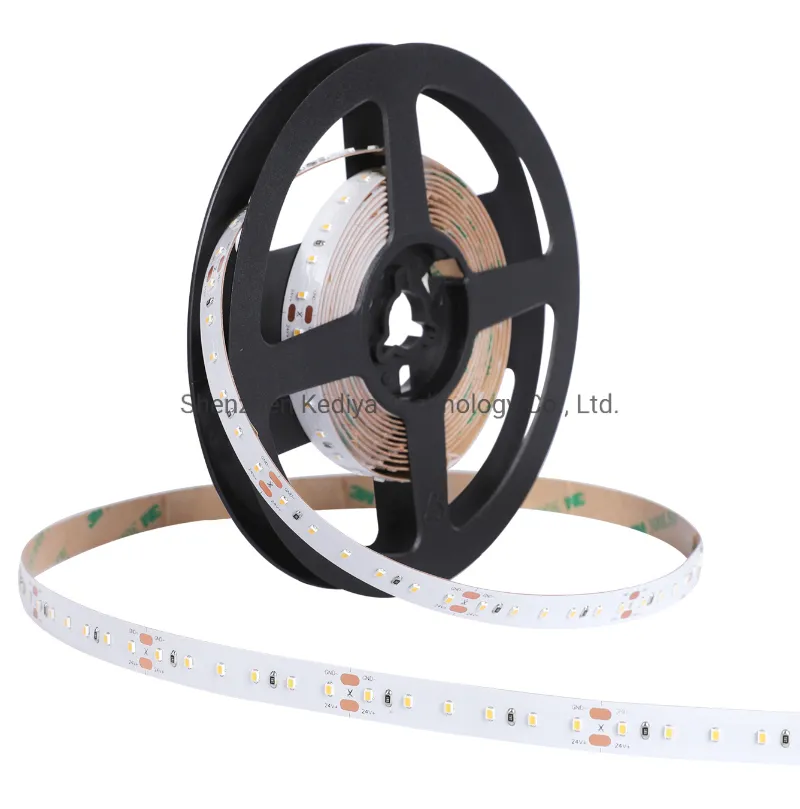

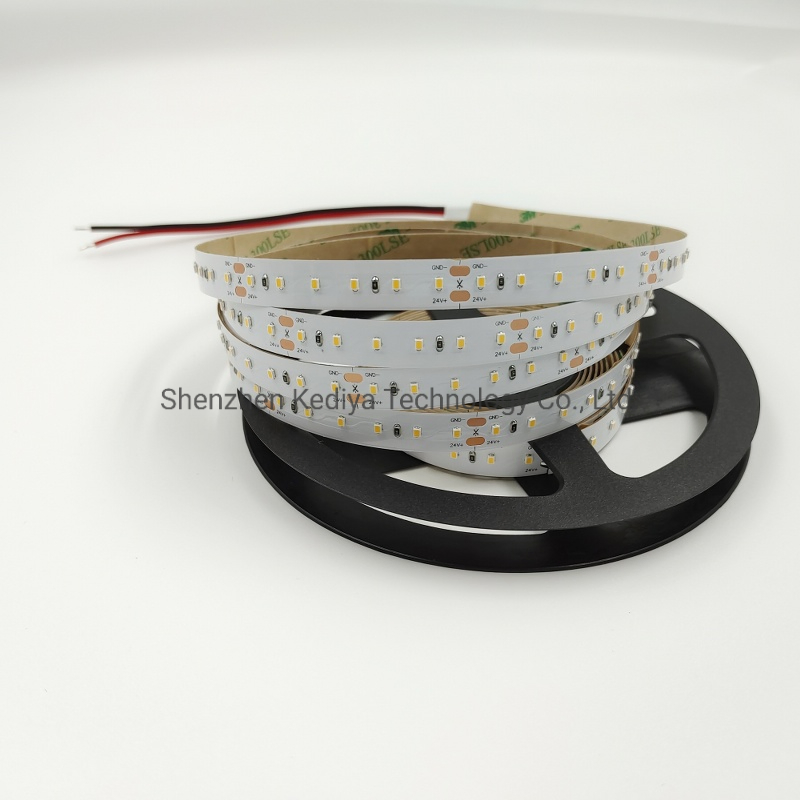

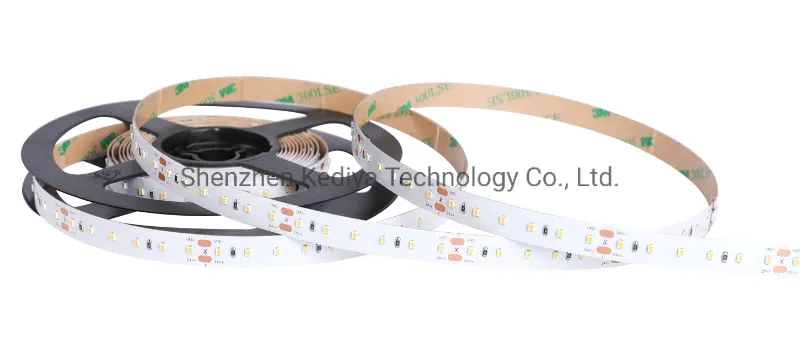

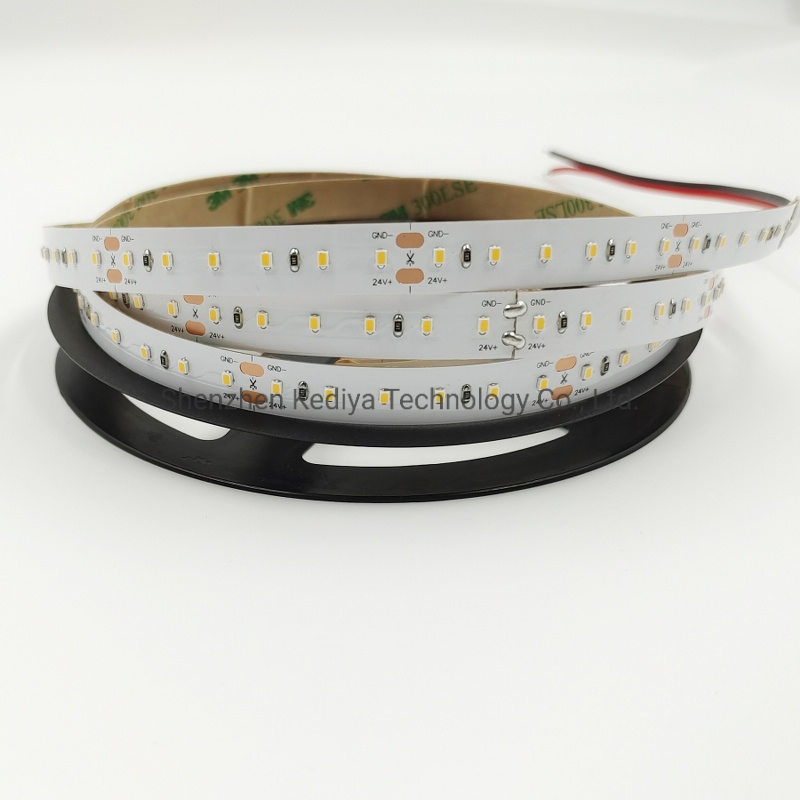

SMD2216 LED Strip Detail
Technical Specifications (120LEDs/M)
Parameter Details
LED Type2216 SMD
Working Voltage12/24V DC
Rated Power9.6W/m
Luminous Flux850-960 lm/m
Efficiency88.5-100 lm/W
Dimension5000 * 10mm
Cuttable Length12V: 25mm / 24V: 50mm
Protection Levels
IP20: Indoor / Dry areas
IP65: Damp locations
IP67: Indoor & Outdoor
IP68: Underwater / Outdoor

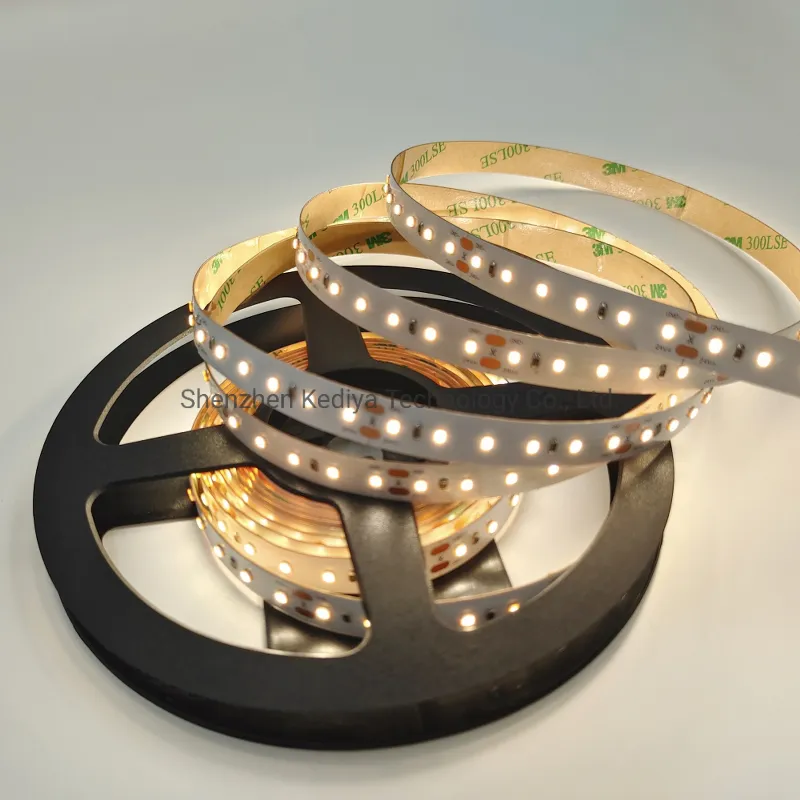

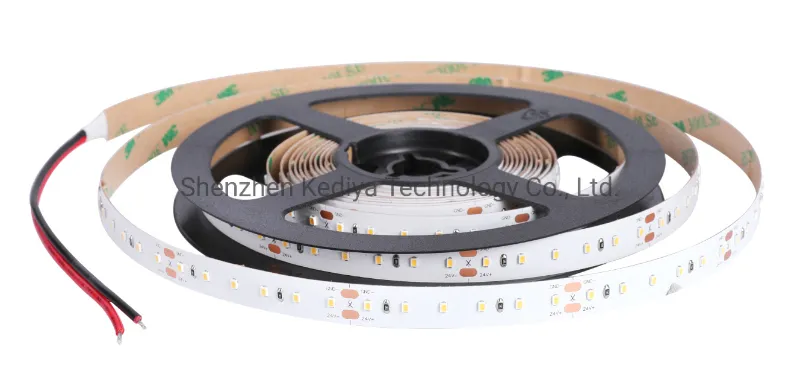

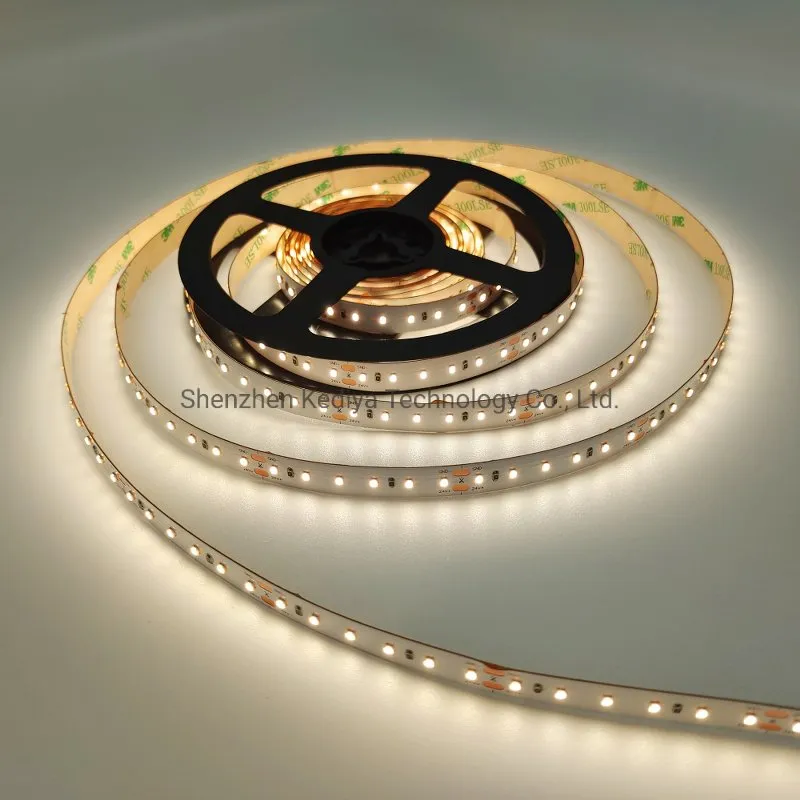

Product Showcase
Wide Applications
  • Residential: Kitchens, living rooms, bedrooms, and staircases.
  • Commercial: Hotels, museums, bars, casinos, and shopping centers.
  • Special Events: Weddings, parties, and festive decorations.
  • Architectural: Corridors, signage, and background decorative lighting.

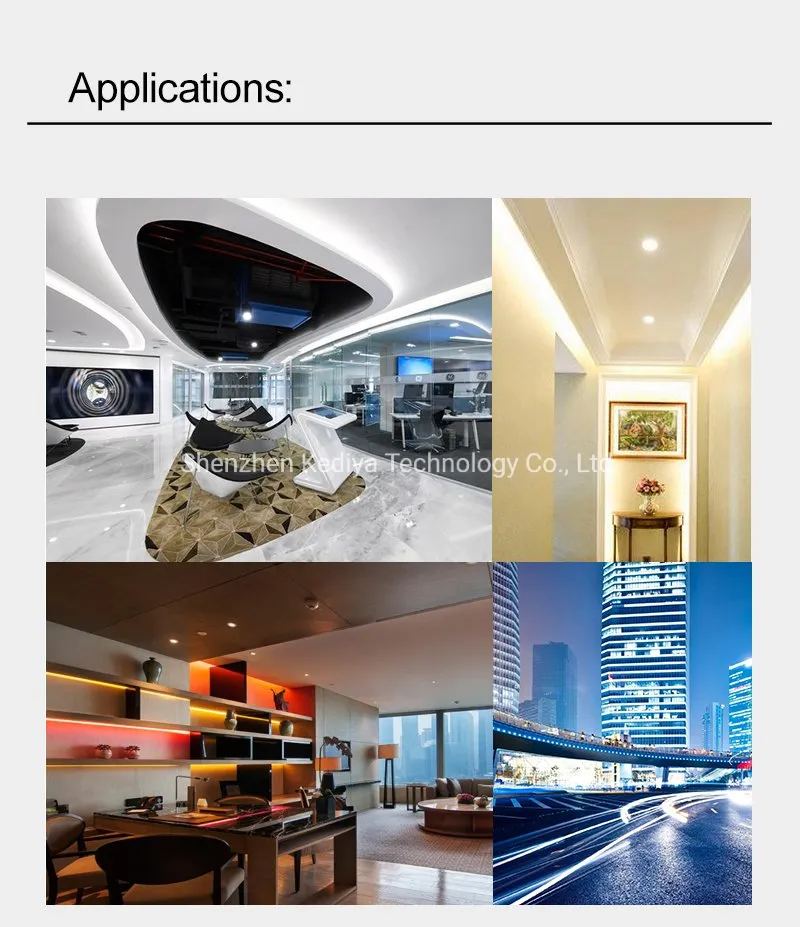

Application Scenario

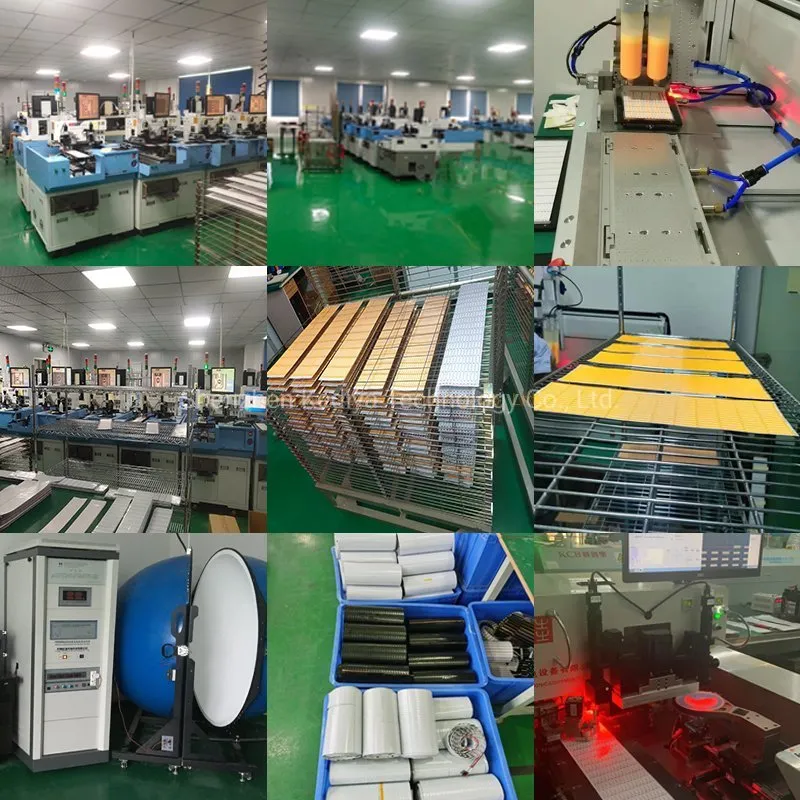

Quality & Certification

Our products undergo 100% online QC and final inspection to ensure zero defects. We hold various certifications including ISO9001:2015 and CE/RoHS standards.

Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer specialized in LED strip lights, COB strips, and digital lighting solutions with our own production lines.
How do you ensure the quality of your LED products?
We maintain high standards through a 10-year experienced material workshop, well-trained workers, 100% online QC inspection, and ISO certifications.
Can I get samples before placing a bulk order?
Yes, we can provide samples for free. Customers typically cover the international express shipping charges.
Do you offer custom design services?
Absolutely! Our professional design team can provide free design services according to your specific project requirements.
What is the standard warranty period?
We offer a warranty ranging from 2 to 5 years depending on the specific product model and application requirements.
What is your typical lead time for orders?
Sample orders take 3-5 days. Small batch orders usually take 10-15 days, while large orders have a negotiable delivery schedule.
